Cusser's post saying you don't see these on the road much any longer got me to thinking I should post the progress on my '88 B2200.
Back in April 2021, a good friend of mine at work said he was getting rid of his old Mazda truck. It had 106,000 miles and hadn't run for several years (3-4?) and he said I could have it for free. The vehicle had been in his wife's family since brand new - his wife's grandma bought it when she retired and it was eventually passed on to the granddaughter as a reliable, around-town ride. My buddy fell in love with the granddaughter in high school and thought (correctly) she was one cool person driving around in that little 5 speed pick up! The vehicle was well maintained, first by the grandfather and then granddaughter - regular oil changes, scheduled maintenance, etc. However, like a lot of old vehicles, most of the mechanical parts were simultaneously getting worn out.
Fast forward about a decade and they are married, have kids, and have moved on to newer, safer rides for the family. The truck is forgotten, except that it sits in front of their house, not running, as nice reminder of a previous time (but also slowly turning into a broken down heap/eye sore from the neighborhood's view). So I had it towed to my house and started plugging away on it. It had 106,000 miles and, thankfully, came with the original 1988 Mazda B2600, B2200 Workshop Manual. I have spent many hours studying that book. The Chilton manual, which I also have, is a sad replacement for the original workshop manual.
My goal isn't a complete restoration, but a mechanical rejuvenation. I am not trying to make or save money and I am not looking to turn it onto something it isn't - really, I just wanted a project truck where I could practice some skills I already have and learn some new ones along the way. I have spent way more than the truck is worth so far and I wouldn't change a single decision. Well, I take that back, I would have chosen to put the new radio antenna down before going through the automated car wash!
Here are some pics:
Paint completely oxidized and dirty stains embedded
Soap and water would wash away white paint - you can see it running down the red trim (red color is called "desert wine", which my wife likes)
Tires have a bunch of tread left and were very nice quality Michelins, but had sat in one place for ~4 years, so I am not trusting them
Doesn't run - replace fuel lines and fuel pump, but carb isn't taking gas. Replace with rebuilt carb, and now it runs.
Good close up of paint oxidation - this is gonna take some elbow grease to recover
These front brakes don't look so great

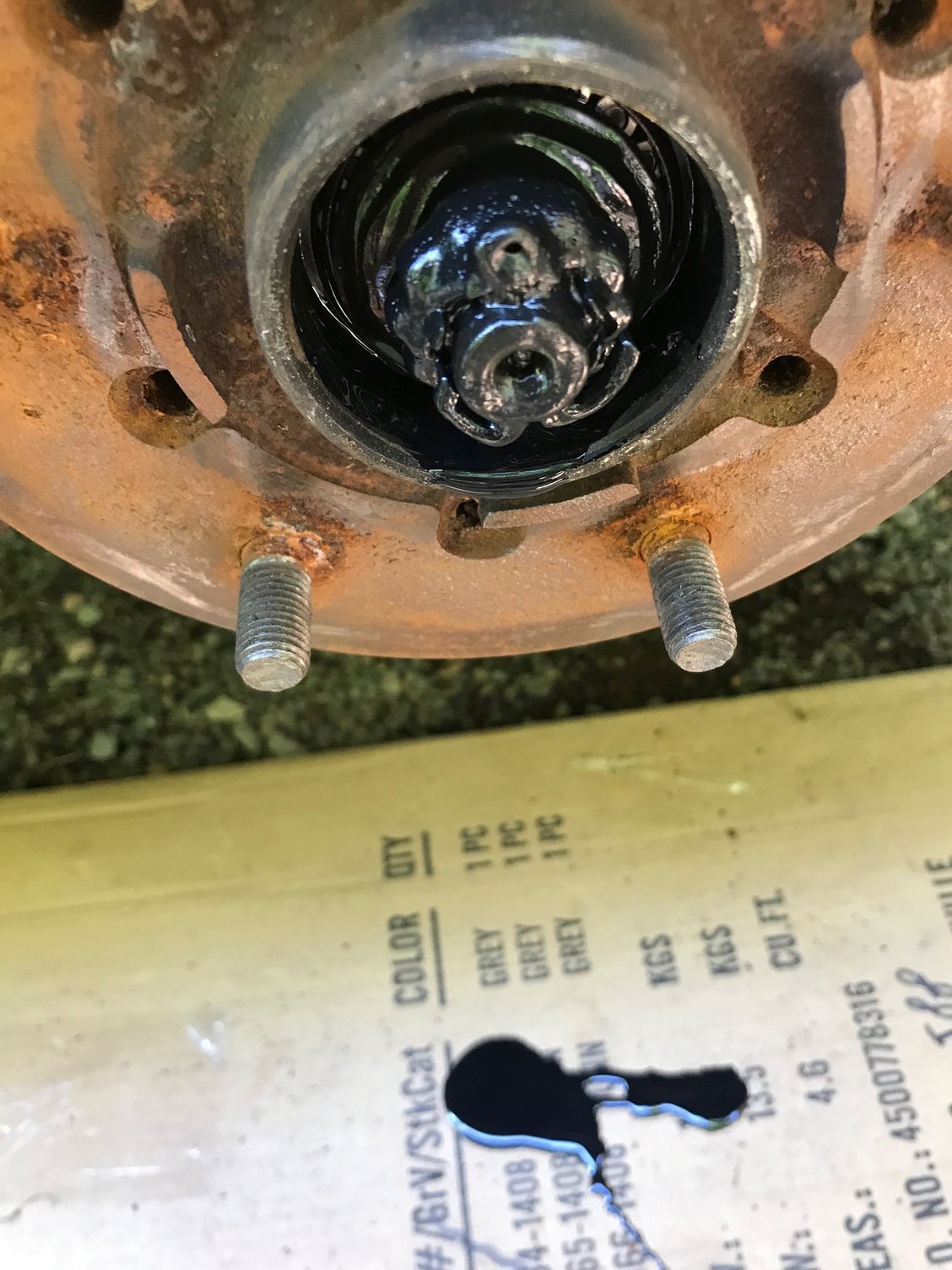

Even worse looking (and smelling) with the bearing cap removed

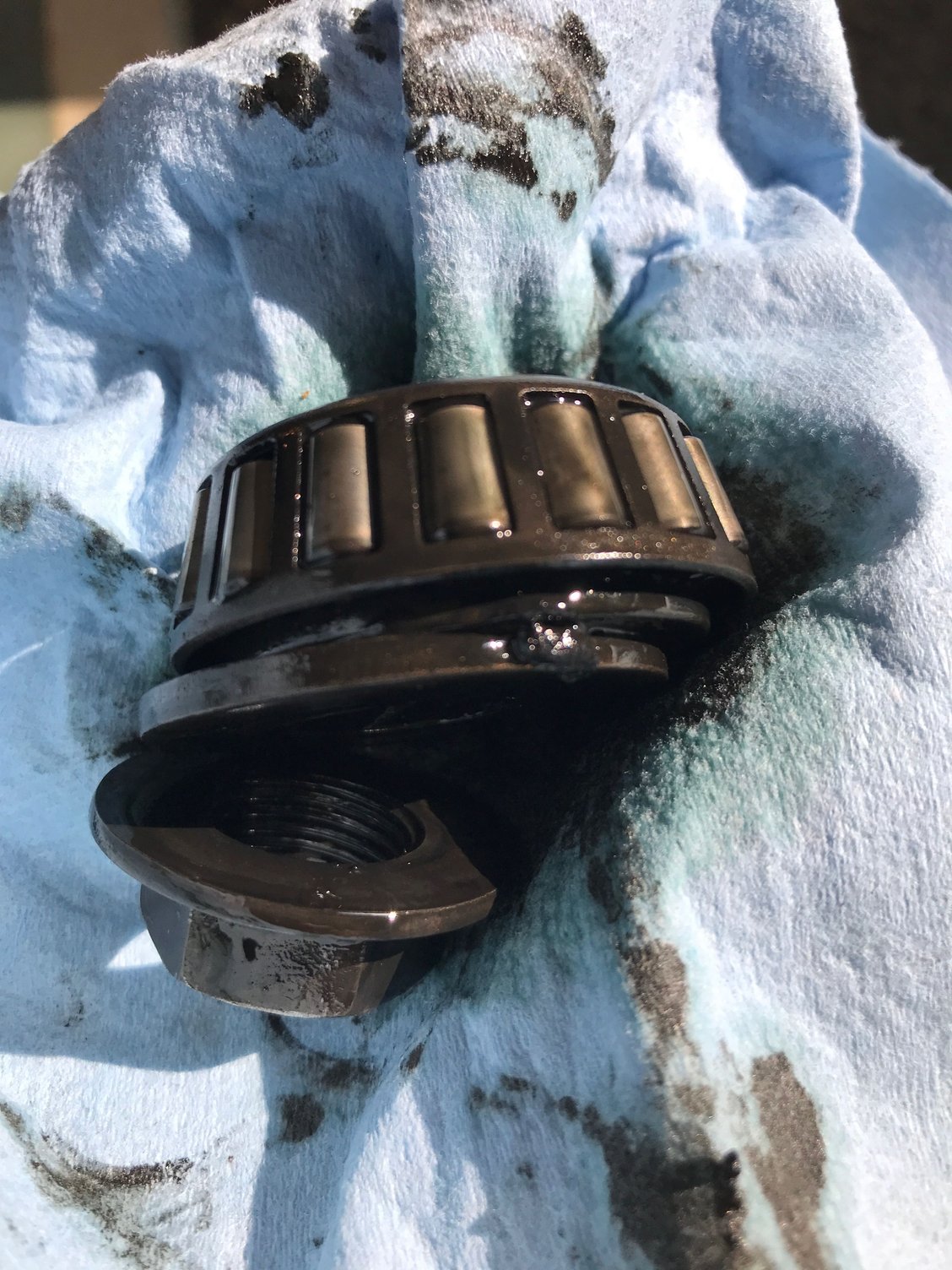

Bearing on the "burned" side

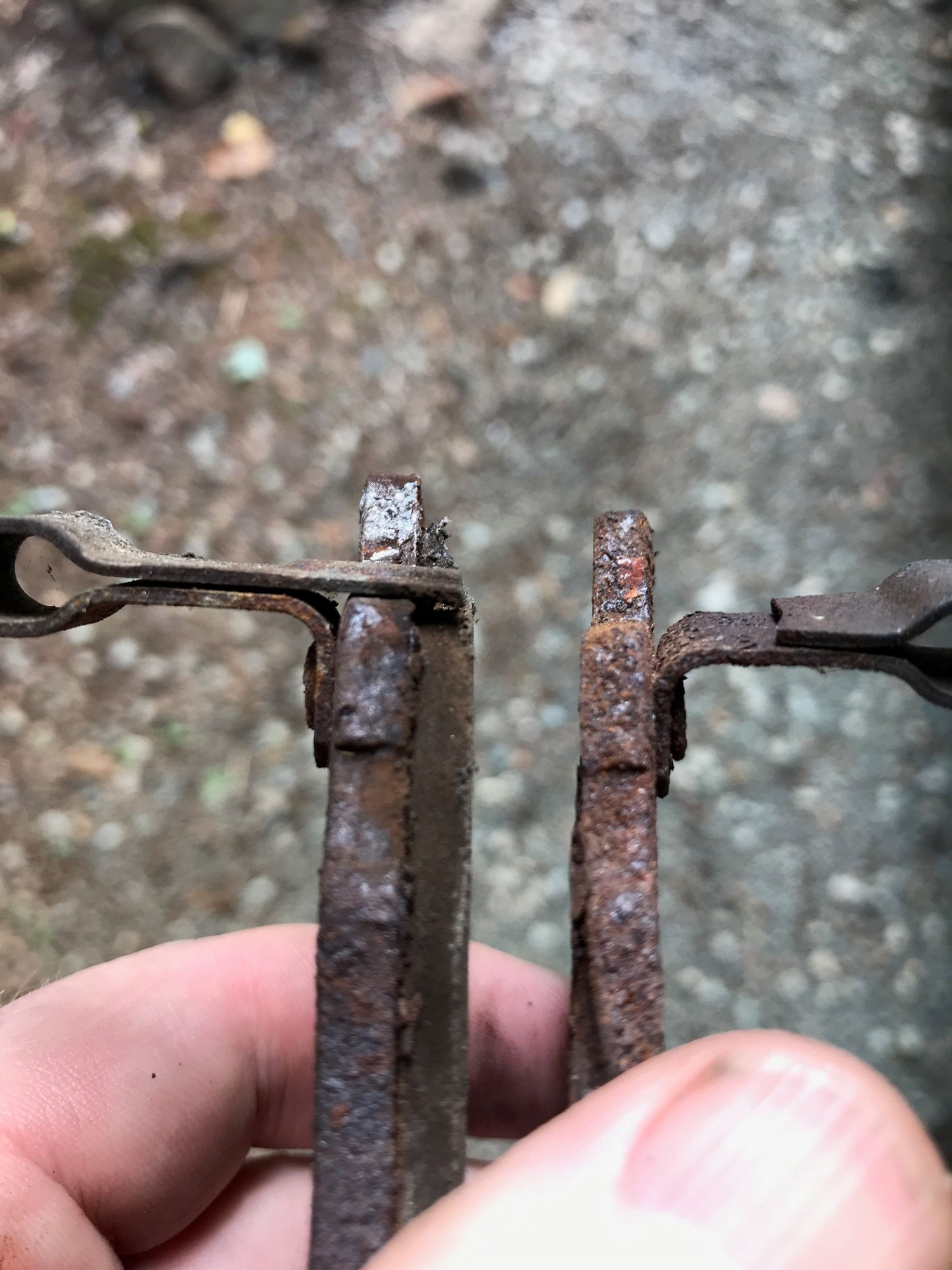

Yes, I think it's safe to say these pads are due for a replacement
Much better
Back in April 2021, a good friend of mine at work said he was getting rid of his old Mazda truck. It had 106,000 miles and hadn't run for several years (3-4?) and he said I could have it for free. The vehicle had been in his wife's family since brand new - his wife's grandma bought it when she retired and it was eventually passed on to the granddaughter as a reliable, around-town ride. My buddy fell in love with the granddaughter in high school and thought (correctly) she was one cool person driving around in that little 5 speed pick up! The vehicle was well maintained, first by the grandfather and then granddaughter - regular oil changes, scheduled maintenance, etc. However, like a lot of old vehicles, most of the mechanical parts were simultaneously getting worn out.
Fast forward about a decade and they are married, have kids, and have moved on to newer, safer rides for the family. The truck is forgotten, except that it sits in front of their house, not running, as nice reminder of a previous time (but also slowly turning into a broken down heap/eye sore from the neighborhood's view). So I had it towed to my house and started plugging away on it. It had 106,000 miles and, thankfully, came with the original 1988 Mazda B2600, B2200 Workshop Manual. I have spent many hours studying that book. The Chilton manual, which I also have, is a sad replacement for the original workshop manual.
My goal isn't a complete restoration, but a mechanical rejuvenation. I am not trying to make or save money and I am not looking to turn it onto something it isn't - really, I just wanted a project truck where I could practice some skills I already have and learn some new ones along the way. I have spent way more than the truck is worth so far and I wouldn't change a single decision. Well, I take that back, I would have chosen to put the new radio antenna down before going through the automated car wash!
Here are some pics:
Paint completely oxidized and dirty stains embedded
Soap and water would wash away white paint - you can see it running down the red trim (red color is called "desert wine", which my wife likes)
Tires have a bunch of tread left and were very nice quality Michelins, but had sat in one place for ~4 years, so I am not trusting them
Doesn't run - replace fuel lines and fuel pump, but carb isn't taking gas. Replace with rebuilt carb, and now it runs.
Good close up of paint oxidation - this is gonna take some elbow grease to recover
These front brakes don't look so great
Even worse looking (and smelling) with the bearing cap removed
Bearing on the "burned" side
Yes, I think it's safe to say these pads are due for a replacement
Much better
Last edited by 88LBO; 11-20-2021 at 11:27 AM.
#2
88 Mazda B2200 Story Cont.
Meant to make one big long thread, but had technical issues (not with the site, but my brain!).
Anyway, continuing:

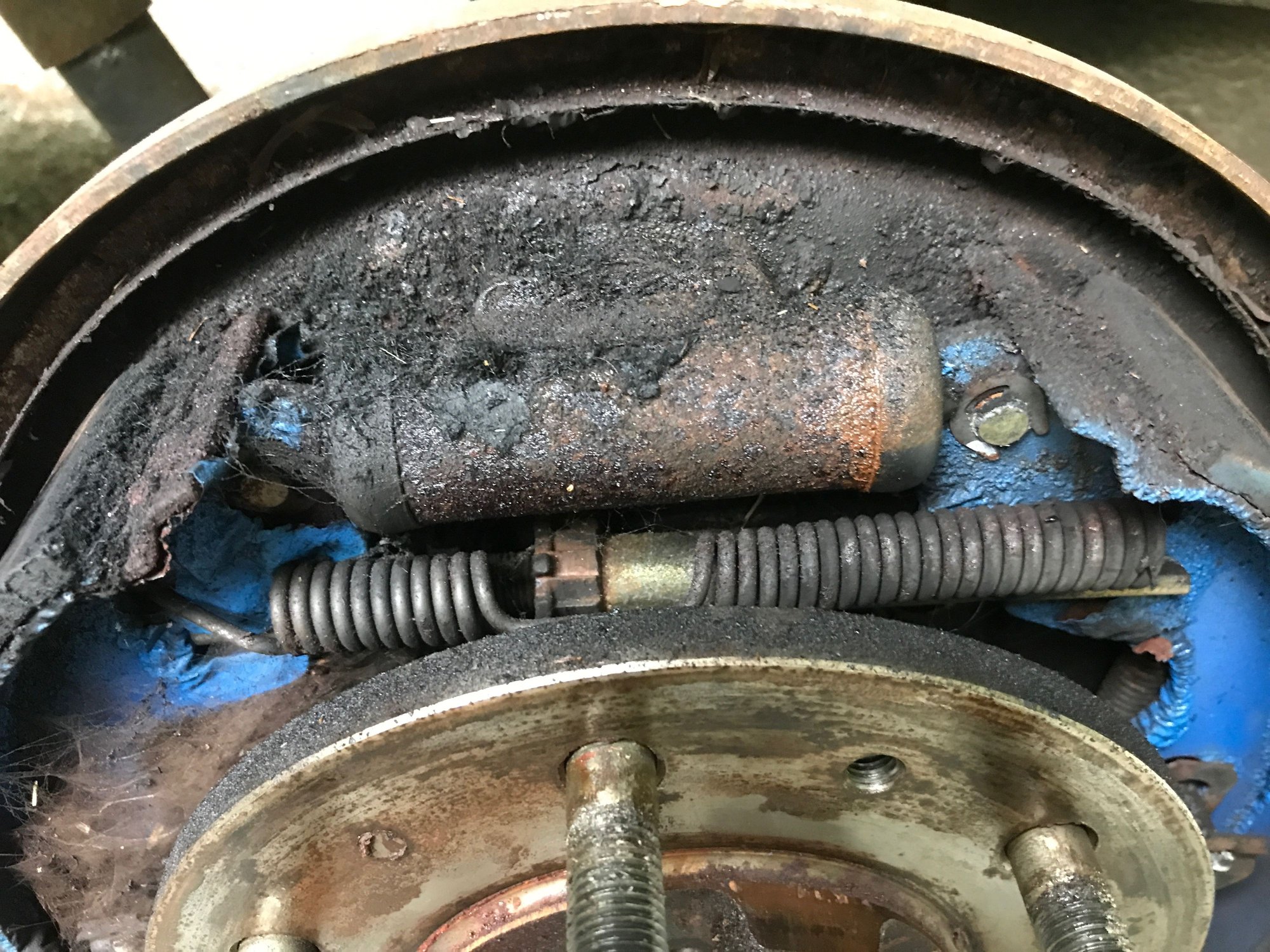

Rear drums not any better
Rebuilt rear drums

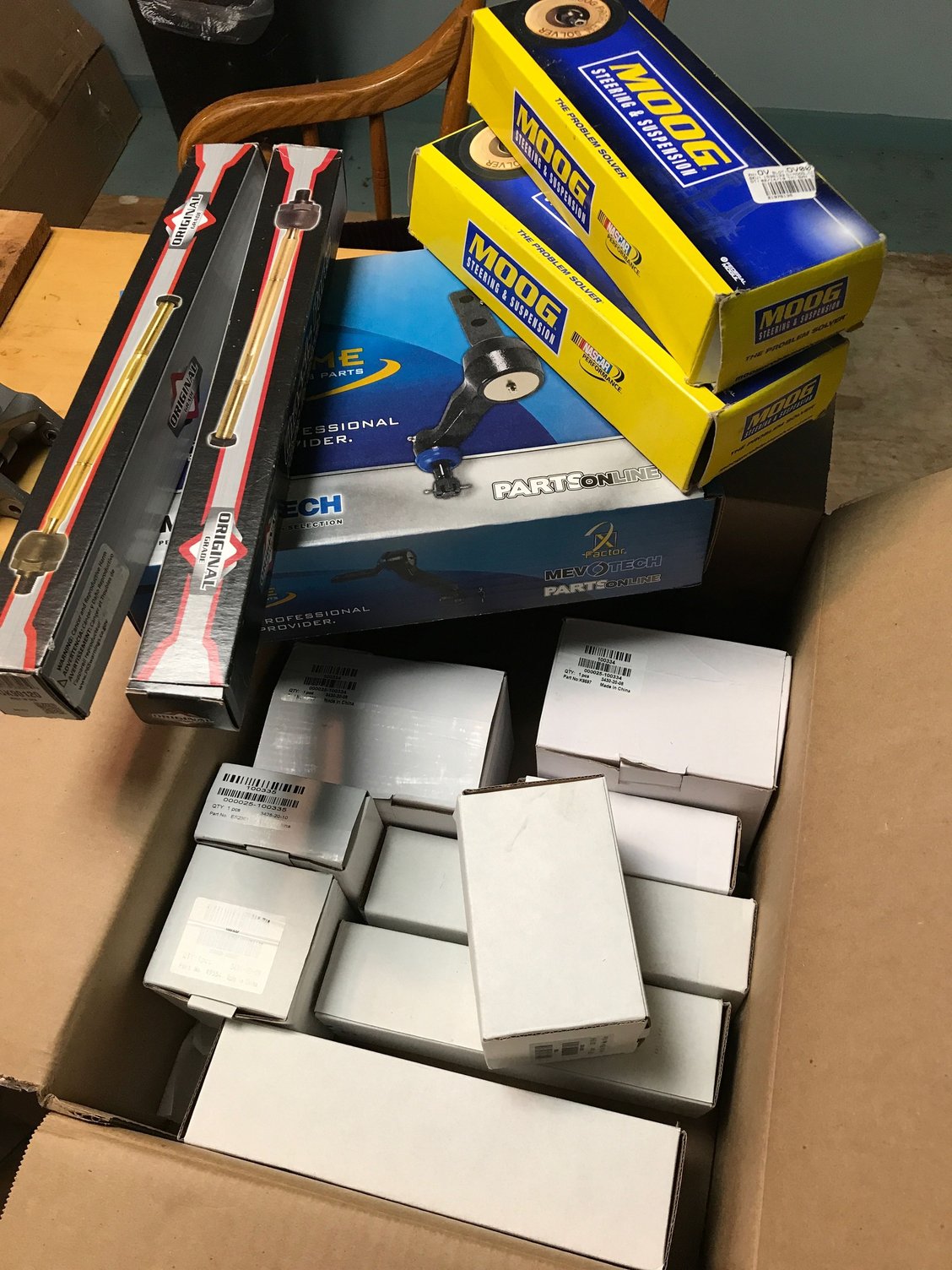

Boxes starting to pile
Suspension and steering - bought one of the reasonably priced complete kits from Ebay, plus a few better parts from Moog. The only part above that was a bust was the Pitman arm (too tight for spline). Ordered another brand, problem solved.

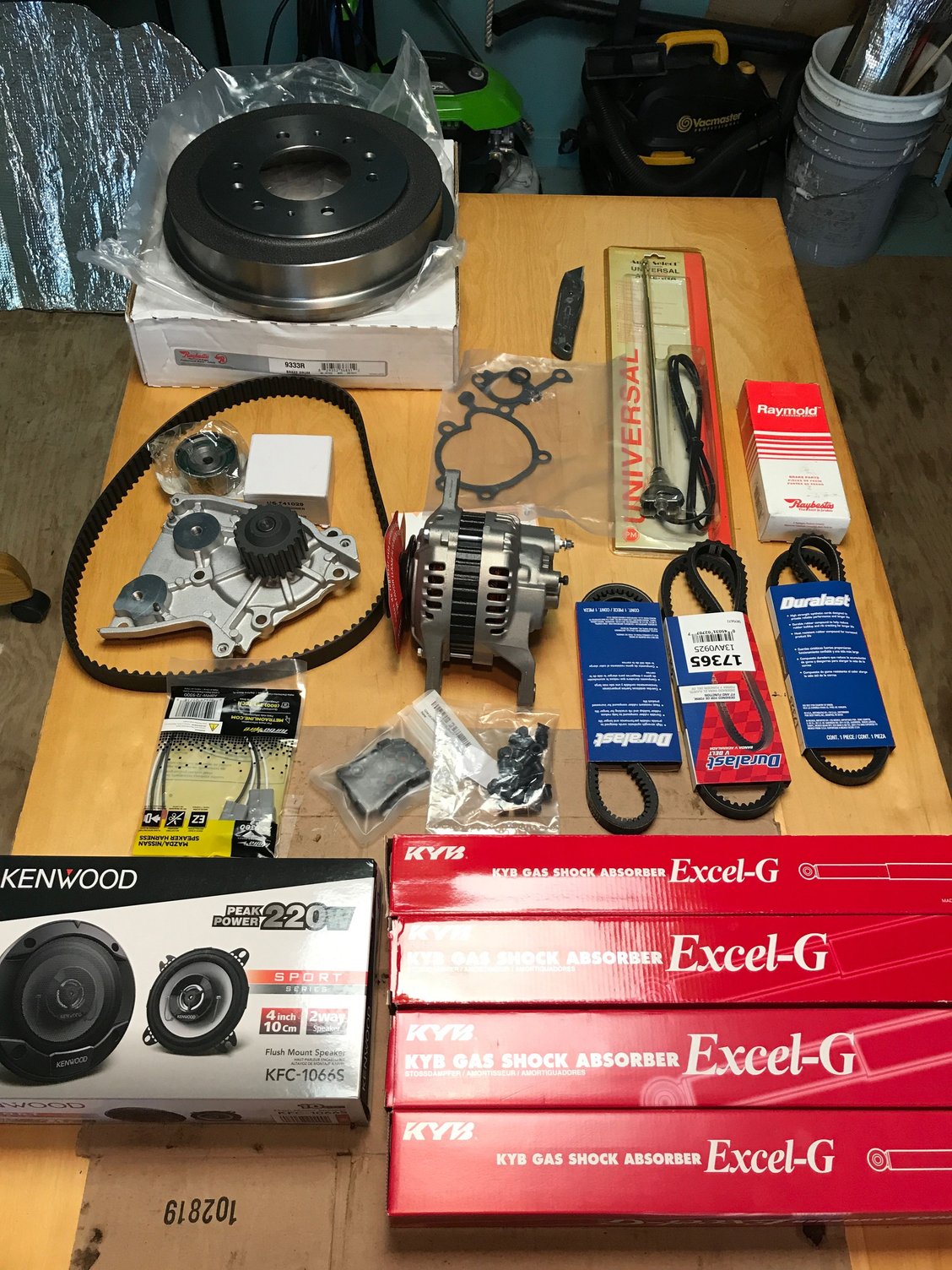

Parts still piling up

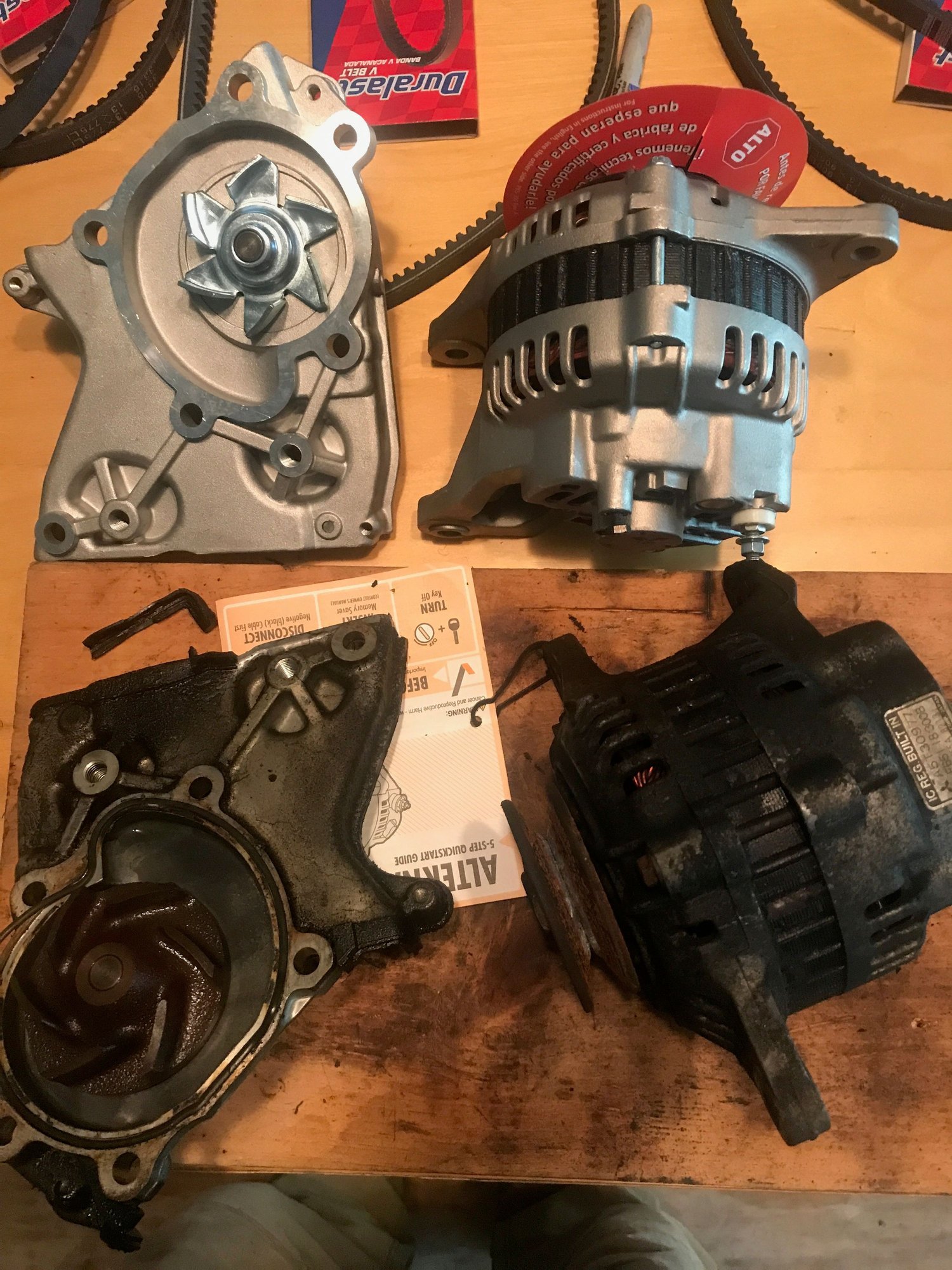

Old vs new - the old alternator might have still worked, but I went ahead and replaced with a rebuilt one as I was already doing the water pump and timing belt and ...
Radiator leaking, of course - found a new one
Broke the pulley adjusting bolt when putting front end of the engine back together - this was one of the more expensive parts per unit value that I had to replace. There was a B2200 at the dump that got crushed the day before I broke this - missed my chance, couldn't find another local B2200, and ended up paying something stupid like $50 for the two bolts new from Ebay. Win some, lose some.

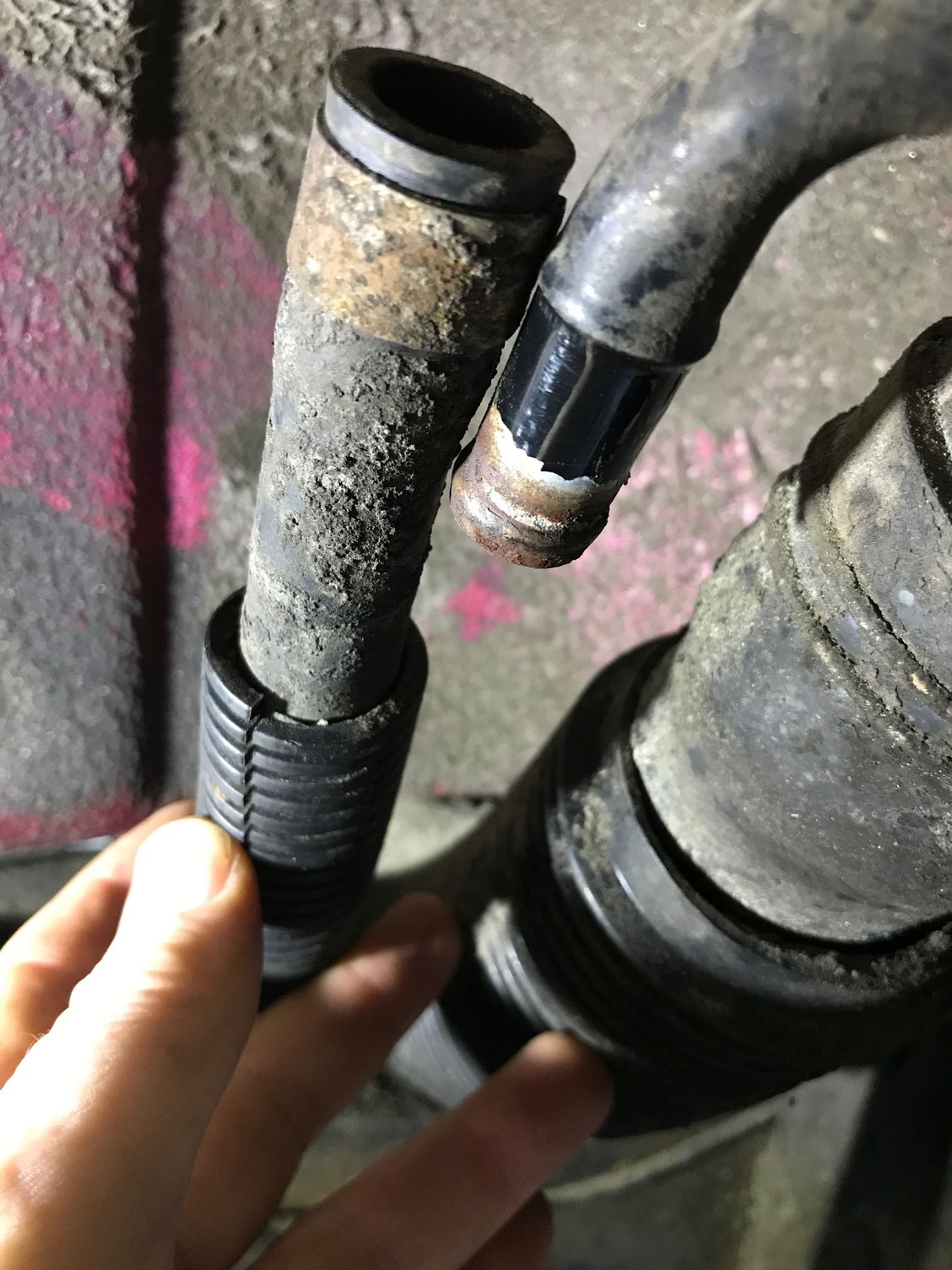

First time I got it running and went to fill with fresh gas, gas poured on ground. Discovered tank vent hose was broken where it met the tank. Found some fuel rated, 5/8" ID fuel-rated hose online.
All the rubber bushings for front suspension and steering were shot
More shot bushings
Most of the front end steering and suspension, plus oil pan and windage tray, removed from replacement/resealing
Crankshaft with pan removed

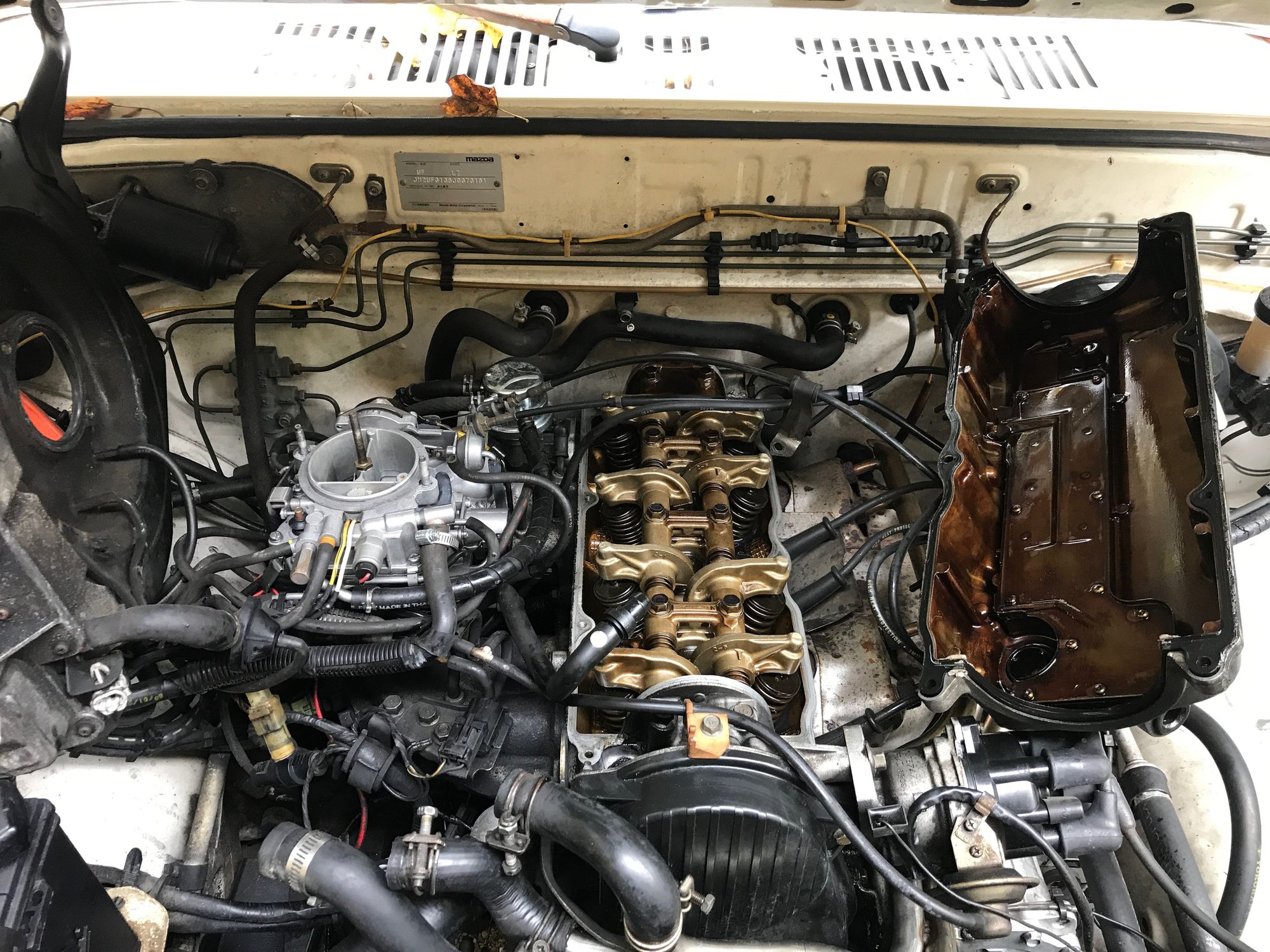

Replacing valve cover gasket - as soon as I got it running, I realized both the oil pan and valve cover gasket were leaking and making a real mess
Looks pretty decent for a 33 year old truck!
Sweet original interior in very good condition - dash excellent. Only exceptions is some of the plastic on speaker covers is gone/shot and the horn buttons have degraded. The horn and cigarette lighter still don't work - they are on my list
Seats look amazing
Door panels good, little cracking near locks, but who cares?

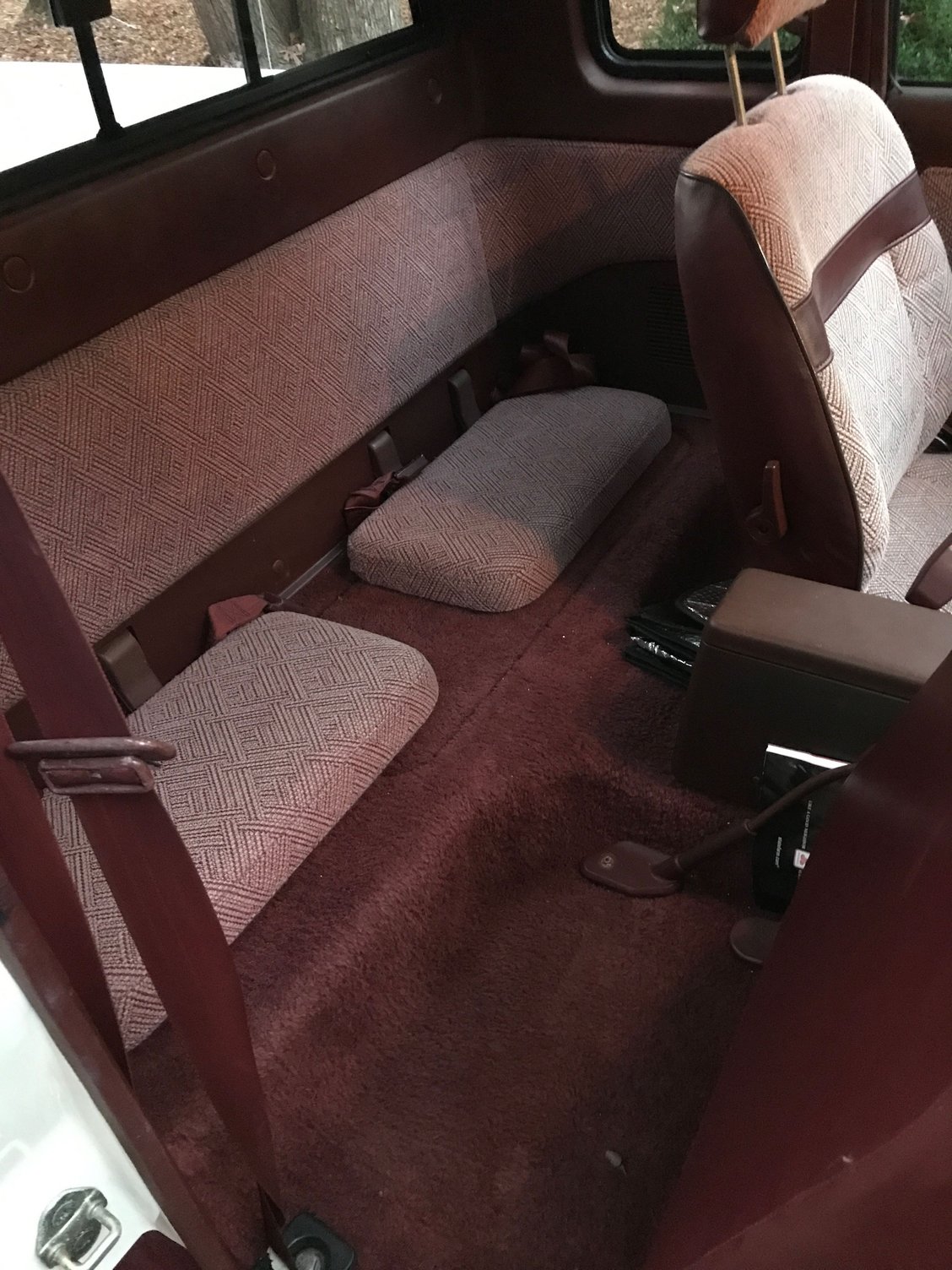

Back seat fine for very, very little people and groceries
One more reply coming with exterior pics (ran out of space)
Anyway, continuing:
Rear drums not any better
Rebuilt rear drums
Boxes starting to pile
Suspension and steering - bought one of the reasonably priced complete kits from Ebay, plus a few better parts from Moog. The only part above that was a bust was the Pitman arm (too tight for spline). Ordered another brand, problem solved.
Parts still piling up
Old vs new - the old alternator might have still worked, but I went ahead and replaced with a rebuilt one as I was already doing the water pump and timing belt and ...
Radiator leaking, of course - found a new one
Broke the pulley adjusting bolt when putting front end of the engine back together - this was one of the more expensive parts per unit value that I had to replace. There was a B2200 at the dump that got crushed the day before I broke this - missed my chance, couldn't find another local B2200, and ended up paying something stupid like $50 for the two bolts new from Ebay. Win some, lose some.
First time I got it running and went to fill with fresh gas, gas poured on ground. Discovered tank vent hose was broken where it met the tank. Found some fuel rated, 5/8" ID fuel-rated hose online.
All the rubber bushings for front suspension and steering were shot
More shot bushings
Most of the front end steering and suspension, plus oil pan and windage tray, removed from replacement/resealing
Crankshaft with pan removed
Replacing valve cover gasket - as soon as I got it running, I realized both the oil pan and valve cover gasket were leaking and making a real mess
Looks pretty decent for a 33 year old truck!
Sweet original interior in very good condition - dash excellent. Only exceptions is some of the plastic on speaker covers is gone/shot and the horn buttons have degraded. The horn and cigarette lighter still don't work - they are on my list
Seats look amazing
Door panels good, little cracking near locks, but who cares?
Back seat fine for very, very little people and groceries
One more reply coming with exterior pics (ran out of space)
#3
88 Mazda 2200 Final Pics

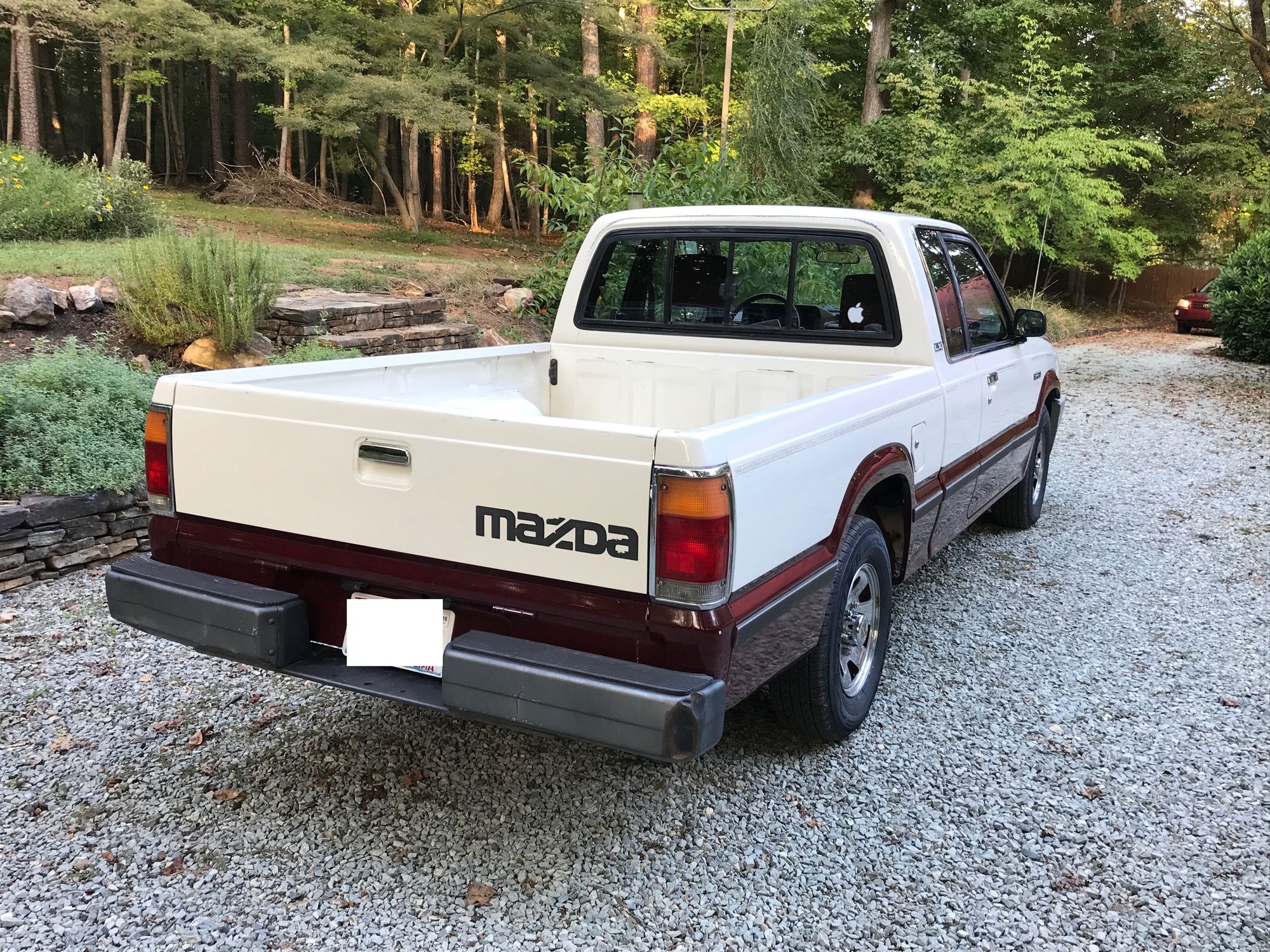

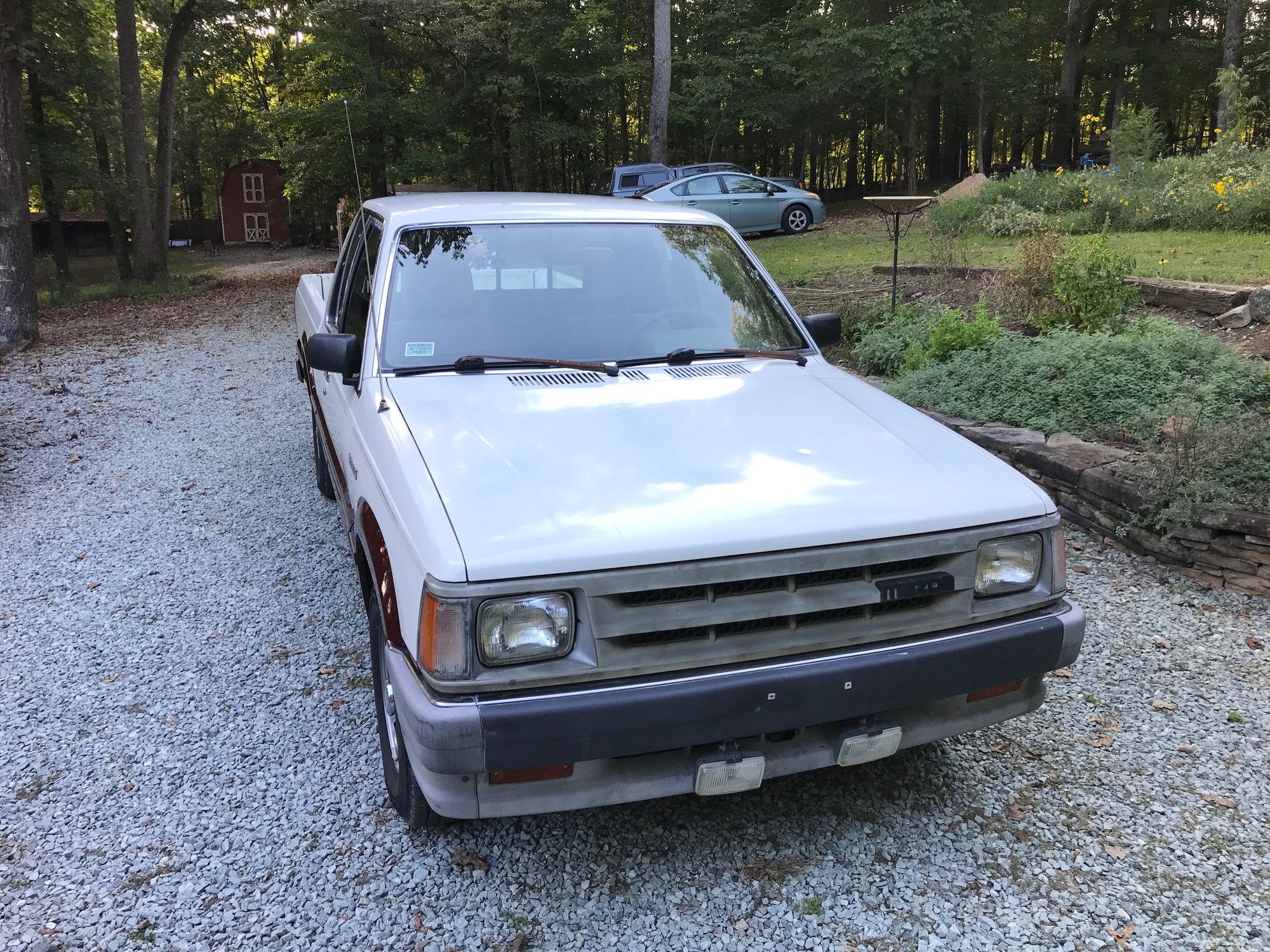

After a ton of elbow grease, rubbing compound and wax, it doesn't look too bad! The red bottom trim came out particularly nice - even though it's transparent in spots (rubbing compound turned rags red immediately), it's stable now with the wax and surprisingly attractive with it's imperfections. Part of what I have always loved about messing with old vehicles.
Here's a complete list of everything I have done so far:Completed Projects - Replaced with New or Rebuilt (R)
(All done at 106,xxx miles)
Fuel pump, fuel line filter, fuel lines in engine bay
Battery
Slave clutch cylinder
Clutch master cylinder fluid change and line bleed
Wiper blades
Window channel runs (found on Ebay - one window didn't work the old channels were so shot)
Tailgate latch
Spark plugs
Spark plug wires
Carburetor (R)
Seafoam in gas and engine block
Engine air filter
Radio antenna
Repaired interior plastic fender
New keys
Front brakes - rotors, calipers (R), pads, bearings, bearing seals
Rear brakes - shoes, drums, brake cylinders, springs, etc.
Degreased engine compartment
PCV valve
Front audio speakers
Change oil (after Seafoam) with Lucas Oil Stabilizer and Mobil synthetic oil
Gas cap
Drivers side mirror
Front and rear gas shocks
Timing belt
Timing belt tensioner pulley
Timing belt idler pulley
Timing cover gaskets
Water pump
Gasket and O ring on coolant outlet pipe
AC belt
Flushed cooling system, coolant
Reverse flushed heater core
Radiator (New)
Alternator (R)
Alternator/Fan Belt
Power steering belt
Brake fluid flush
Toyo tires
Wash, rubbing compound, wax
Fixed radiator sensor leak (manufacturer did lousy job cutting threads)
Upper, lower ball joints, both sides
Resealed oil pan and windage tray with Permatex RTV (followed by second oil change)
Gas tank vent hose
Gas door cable latch repaired
Transmission fluid
Valve cover gasket
Pitman arm
Idler arm
Tension bar bushing kits
Stabilizer bar bushings
Linkage kits between tension bar and stabilizer bar
Inner and outer tie rods
Alignment at Firestone
I have another list for next projects, but "Mike", as we call him, is back on the road and running great.
