Default [ 2012 Mazda Mazda2 ] OEM radio pinout / schematic / wiring diagram requested

Hello.

I am searching for the pinout / schematic / wiring diagram for the OEM stock radio for the 2012 Mazda Mazda2 vehicle.

Radio model number: 14797439
OEM radio from the dealership.

I have spoken with both the dealership's parts department as well as their OEM vendor; neither have the schematics and resort to 'replacing damaged components' only as opposed to repairing components and as such do not carry the unnecessary diagrams.

If anyone has pinouts of the radio: Please share a URL, hand drawn image, explanation of each pin / function or other.

Thank you, very much!

Hello.



I am searching for the pinout / schematic / wiring diagram for the OEM stock radio for the 2012 Mazda Mazda2 vehicle.



Radio model number: 14797439

OEM radio from the dealership.



I have spoken with both the dealership's parts department as well as their OEM vendor; neither have the schematics and resort to 'replacing damaged components' only as opposed to repairing components and as such do not carry the unnecessary diagrams.



If anyone has pinouts of the radio: Please share a URL, hand drawn image, explanation of each pin / function or other.



Thank you, very much!

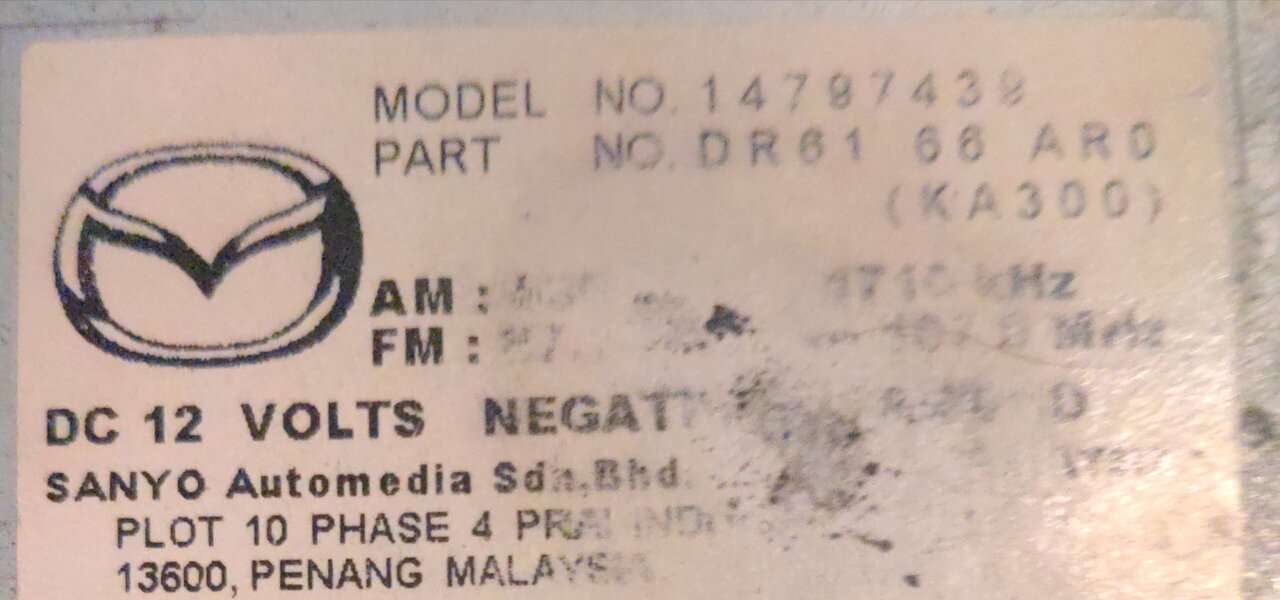

​Image of the radio's part and model number:

[ 2012 Mazda Mazda2 ] OEM radio pinout / schematic / wiring diagram requested-1000000890.jpg

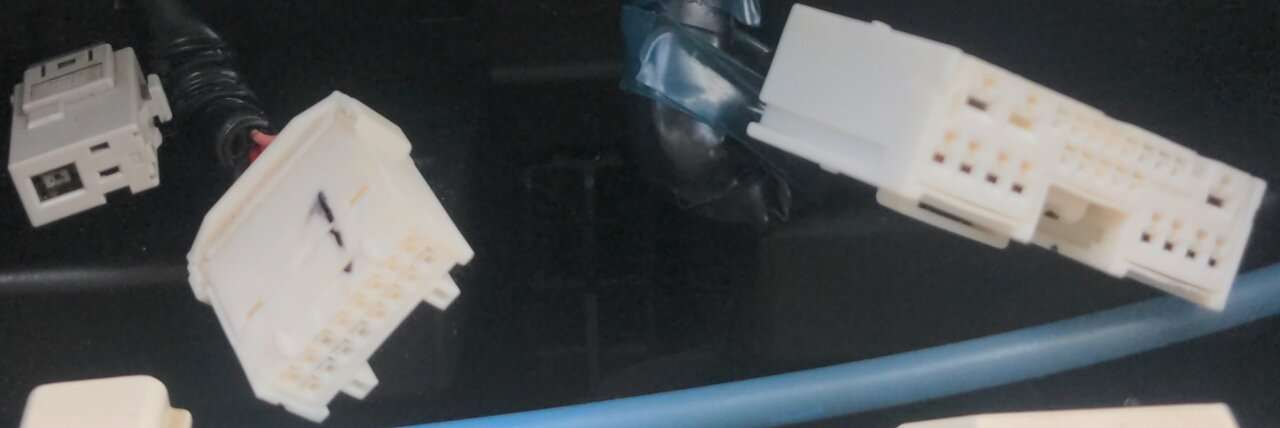

Image of the pin connector boxes with the radio panel removed:

[ 2012 Mazda Mazda2 ] OEM radio pinout / schematic / wiring diagram requested-1000000938.jpg



Image of the gray connector box:

[ 2012 Mazda Mazda2 ] OEM radio pinout / schematic / wiring diagram requested-1000000937.jpg

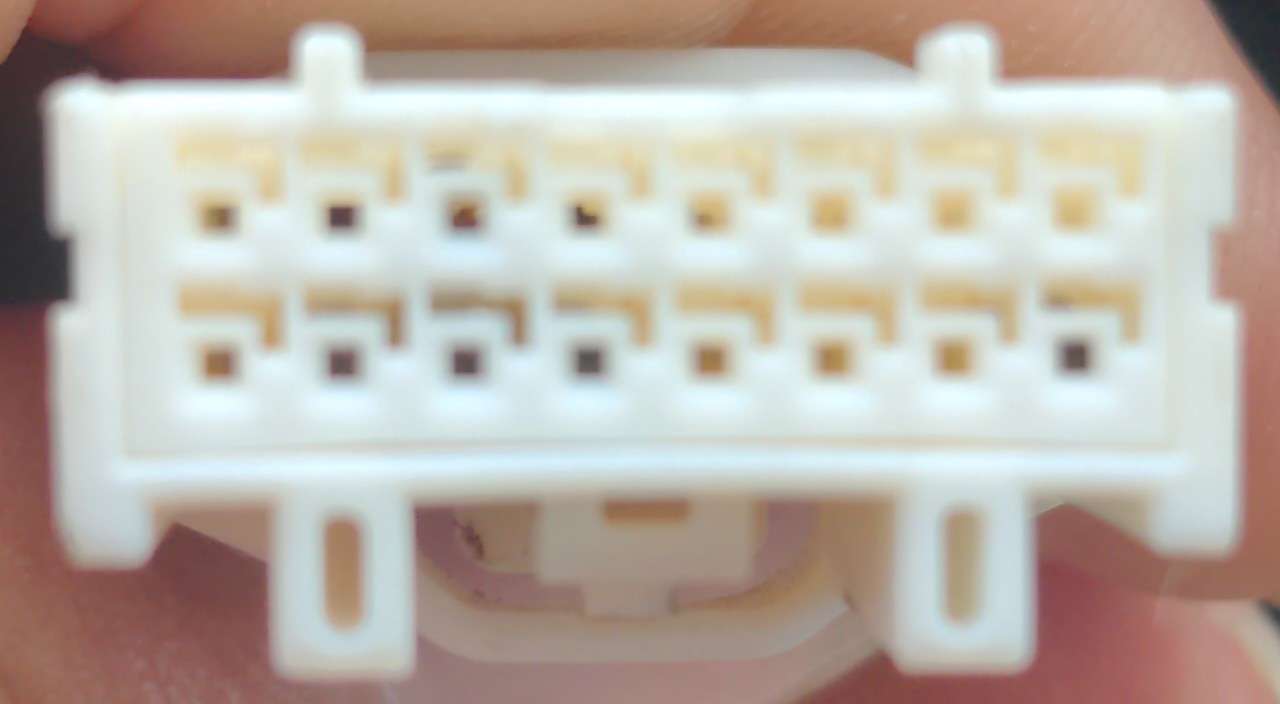

Image of the center connector box:

[ 2012 Mazda Mazda2 ] OEM radio pinout / schematic / wiring diagram requested-1000000936.jpg

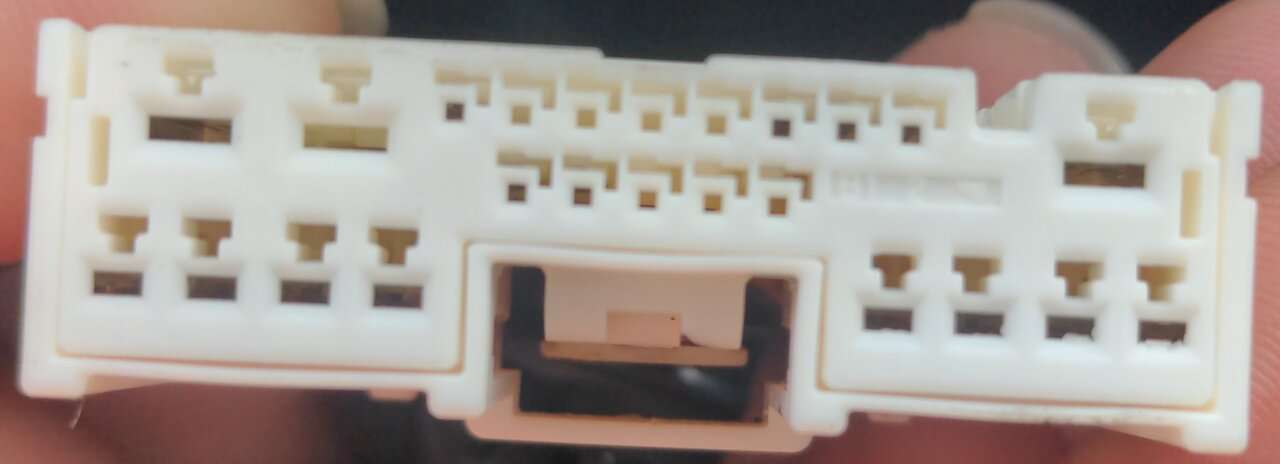

Image of the right connector box:

[ 2012 Mazda Mazda2 ] OEM radio pinout / schematic / wiring diagram requested-1000000935.jpg



​Thank you, in advance!

Reply
Old Feb 23, 2024 | 03:51 AM
  #2
OZCorolla_x2's Avatar
Member
Joined: Feb 2024
Posts: 54
Likes: 2
From: Australia
Default

This may help
Extract from Mazda2 Manual
2010 Mazda North American Operations USA
2014_01_29

Pg193 of 3,782

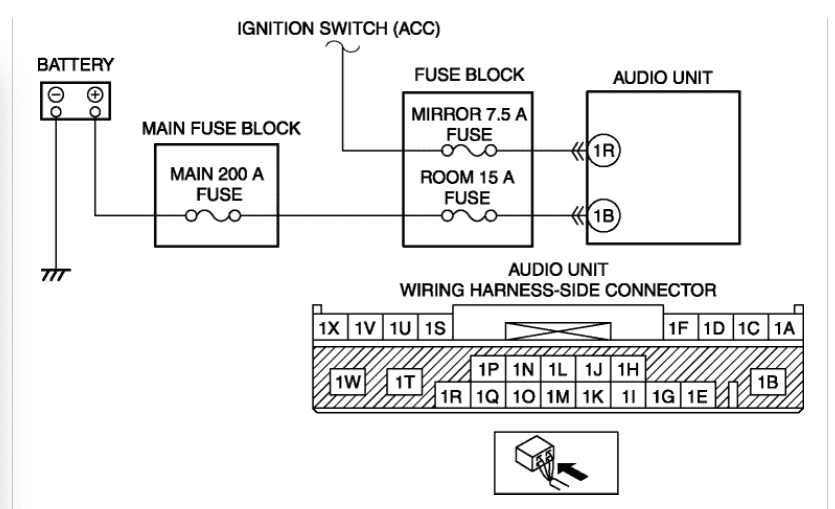

Audio Unit Wiring Harness-Side Connector
[ 2012 Mazda Mazda2 ] OEM radio pinout / schematic / wiring diagram requested-radio-pin-out-connector-1.png

#########
Also Extract of Detail from 000 WIRING DIAGRAM.pdf - 109Pgs

AUDIO UNIT
Pg71 - 0920-2a
Term = Wire Colour, Purpose
1R = GY/R(l), from 7.5A Fuse
1B = L/R(l), from 15A Fuse
1I = G/R(I), to Instrument Cluster
1W = B(I), to G05 (Chasis Ground)

Pg72 - 0920-2b
Term = Wire Colour, Purpose
1C = W(I) & 1A = R(I), to Front Door Speaker LH
1D = L(I) & 1F = Y(I), to Front Door Speaker RH

Pg73 - 0920-2c
Term = Wire Colour, Purpose
1U = P(I) & 1S = V(1), to Rear Door Speaker LH
1X = B/L(I) & 1V = W/L(1), to Rear Door Speaker RH

1P = G/W(I), to Clock Spring Terminal 16
1N = R/B(I), to Clock Spring Terminal 14

Pg74 - 0920-2d
Term = Wire Colour, Purpose
2M = G(I) to Auxiliary Jack
2L = B(I) to Auxiliary Jack
2I = W(I) to Auxiliary Jack
2K = R(I) to Auxiliary Jack
2A = P/B(I) to Auxiliary Jack

Rob

Reply
Old Feb 23, 2024 | 04:06 AM
  #3
grim_reaper's Avatar
Super Moderator
Joined: May 2012
Posts: 7,848
Likes: 32
From: Queensland Australia
Default

RHD Australian Facelift DE series Mazda 2.

Attached Files
File Type: pdf
M2 AUDIO.pdf (2.30 MB, 577 views)
Reply
Old Aug 18, 2024 | 02:45 PM
  #4
Muted's Avatar
Junior Member
Joined: Aug 2024
Posts: 13
Likes: 0
From: USA
Default

Originally Posted by OZCorolla_x2
This may help
Extract from Mazda2 Manual
2010 Mazda North American Operations USA
2014_01_29

Pg193 of 3,782
Audio Unit Wiring Harness-Side Connector
Attachment 9000

#########
Also Extract of Detail from 000 WIRING DIAGRAM.pdf - 109Pgs

AUDIO UNIT
Pg71 - 0920-2a
Term = Wire Colour, Purpose
1R = GY/R(l), from 7.5A Fuse
1B = L/R(l), from 15A Fuse
1I = G/R(I), to Instrument Cluster
1W = B(I), to G05 (Chasis Ground)

Pg72 - 0920-2b
Term = Wire Colour, Purpose
1C = W(I) & 1A = R(I), to Front Door Speaker LH
1D = L(I) & 1F = Y(I), to Front Door Speaker RH

Pg73 - 0920-2c
Term = Wire Colour, Purpose
1U = P(I) & 1S = V(1), to Rear Door Speaker LH
1X = B/L(I) & 1V = W/L(1), to Rear Door Speaker RH

1P = G/W(I), to Clock Spring Terminal 16
1N = R/B(I), to Clock Spring Terminal 14

Pg74 - 0920-2d
Term = Wire Colour, Purpose
2M = G(I) to Auxiliary Jack
2L = B(I) to Auxiliary Jack
2I = W(I) to Auxiliary Jack
2K = R(I) to Auxiliary Jack
2A = P/B(I) to Auxiliary Jack

Rob
My phone and vehicle both broke soon after creating this post (2FA e-mail account total lock out).

Thank you! I read everything you shared. It is very helpful. I only need to address a no-spark condition now before I can install my (Chinese) Android headunit.

Reply
