What happens to a head in a machine shop

  #1
Old 02-02-2013, 09:06 AM
BogusSVO's Avatar
Member
Thread Starter
Join Date: Dec 2009
Location: Pensacola Fla
Posts: 52
Talking What happens to a head in a machine shop

What Happens to a head in a machine shop

First Not all shops have the same equipment and the procedures from one shop to the next can and will differ.
Some shops cater to domestics and others imports or even diesels.
Some shops will view everything as a “stock” rebuilds.
So….
The most important thing to know is the shop you use and the equipment they will use.

The subject head is a Mitsubishi 4G63 7 Bolt

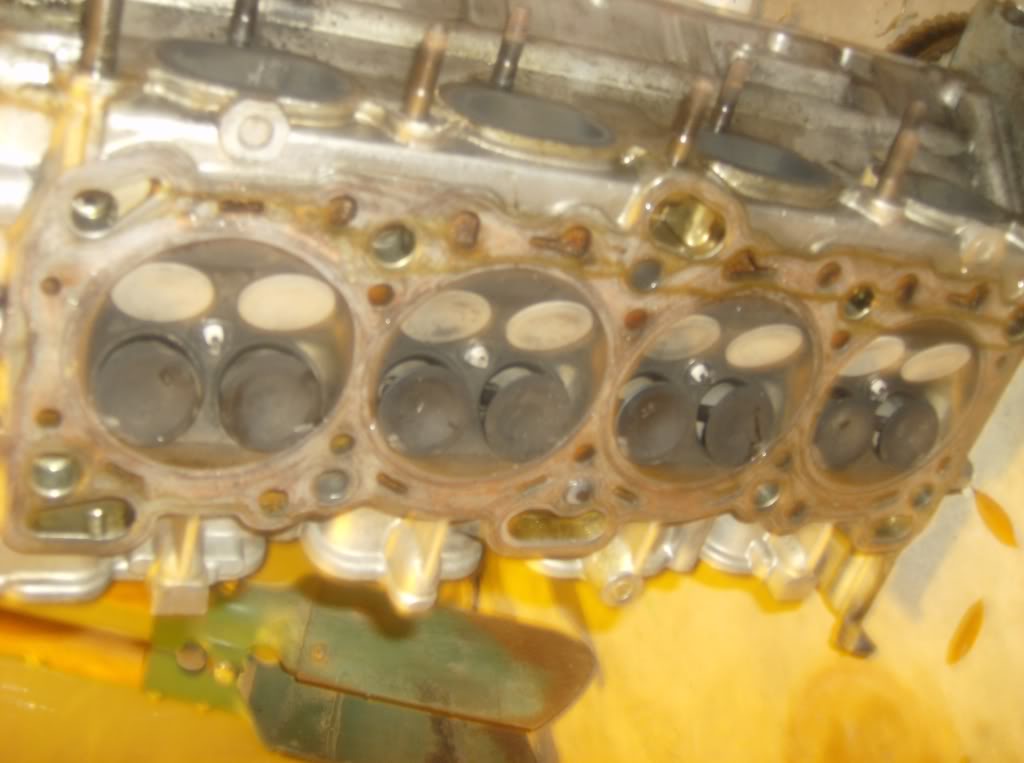

The first thing that should happen is the machinist looks at the head. Checking for the obvious damage, broken bolts, stripped bolt holes, bent valves, ect.
Name:  Picture001.jpg
Views: 176
Size:  80.0 KB

At this point it is up to you as the customer, inform the shop what you want done, such as…
1) Pressure test for cracks
2) Valve job
3) Surface
4) Guide work
5) Any performance work wanted
Also now is the time to speak about who will provide what parts, valves, seals, guides, springs, ect.

Now the shop should be able to give you, the customer, an approximate estimate of what the parts and labor will cost.

You as the customer have the choice to agree, or go somewhere else.
Now that your head is at the machine shop, and you have agreed to have the work done.

The first thing to happen is the head will be disassembled.

The tools needed are
Name:  027.jpg
Views: 235
Size:  199.6 KB

Wire basket for small parts springs, valves, ect
Small container for valve locks
Valve lock release tool (socket method)
Hammer
10mm socket
12mm socket
12mm socket
Ratchet
5.5mm allen bit socket or wrench
Pocket magnet
Long reach needle nose pliers w/45* bend
Impact gun (not pictured)

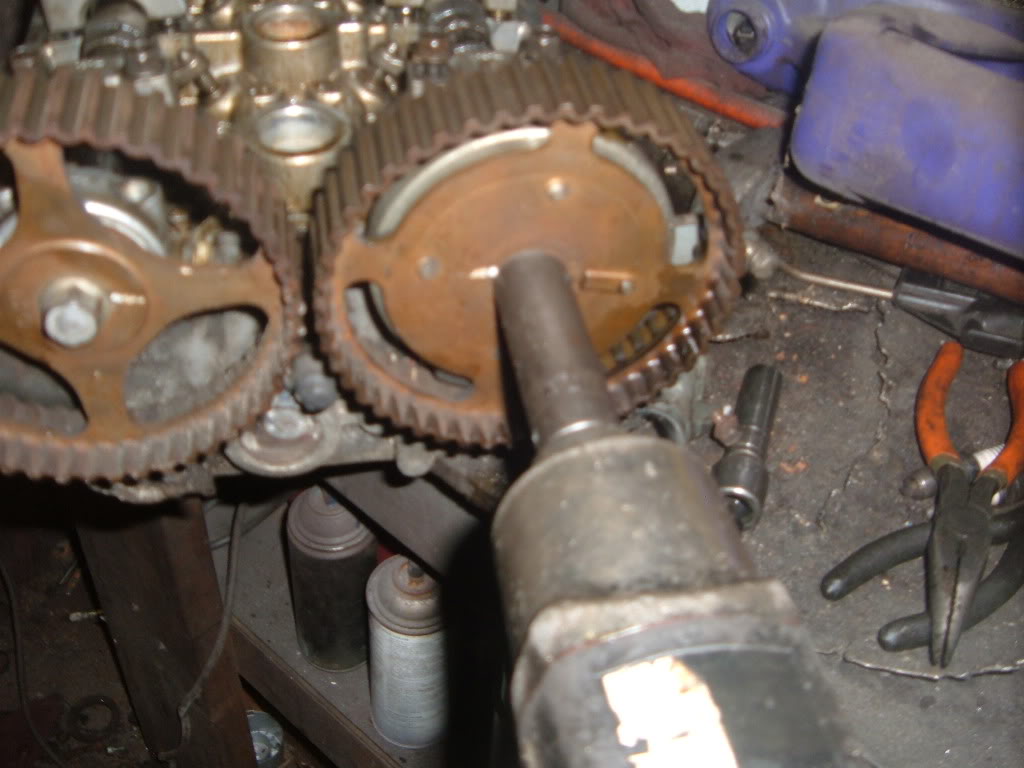

Cam gears come off first, use impact with the 17mm socket
Name:  DSCF5436.jpg
Views: 265
Size:  85.8 KB

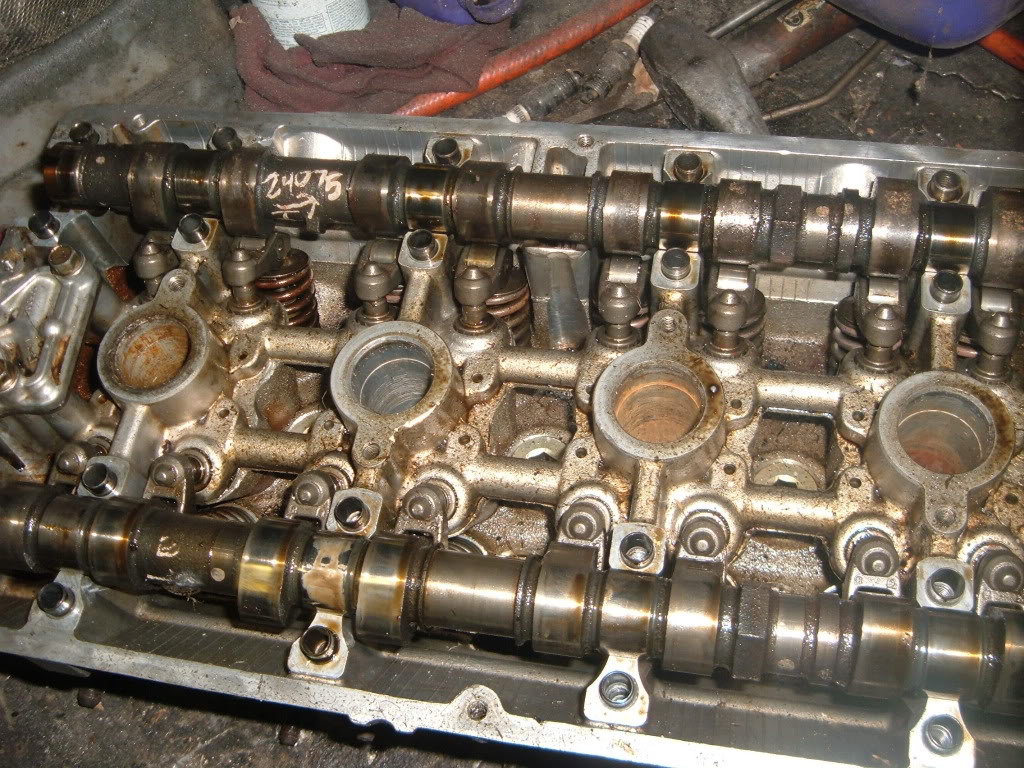

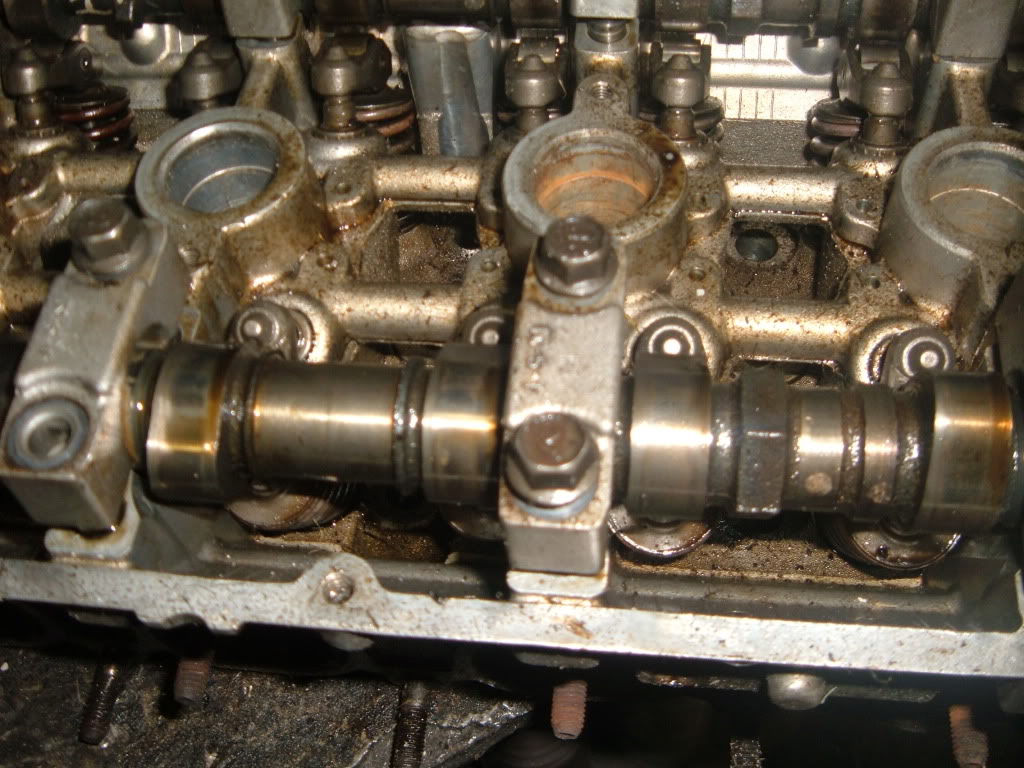

Next remove the cam tower caps, use impact or ratchet w/12mm socket.
Start at the ends working towards the center
Name:  003.jpg
Views: 159
Size:  149.0 KB


Name:  004.jpg
Views: 246
Size:  228.1 KB

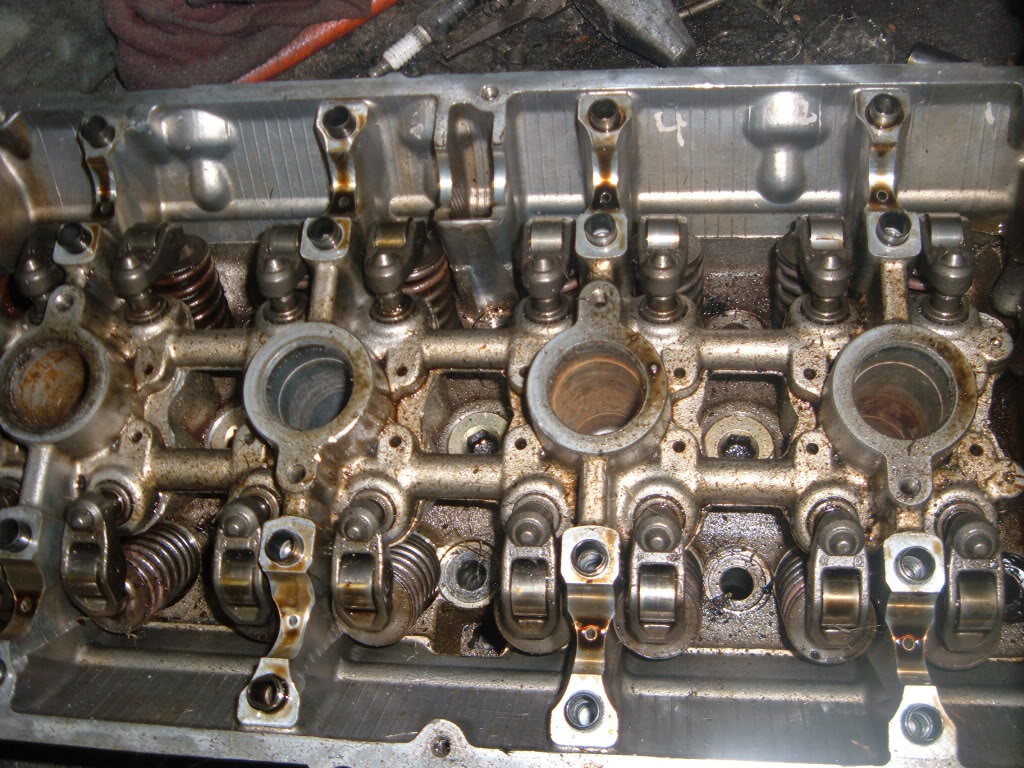

Once the cam caps are removed, lift the cams out.

Name:  005.jpg
Views: 183
Size:  207.0 KB

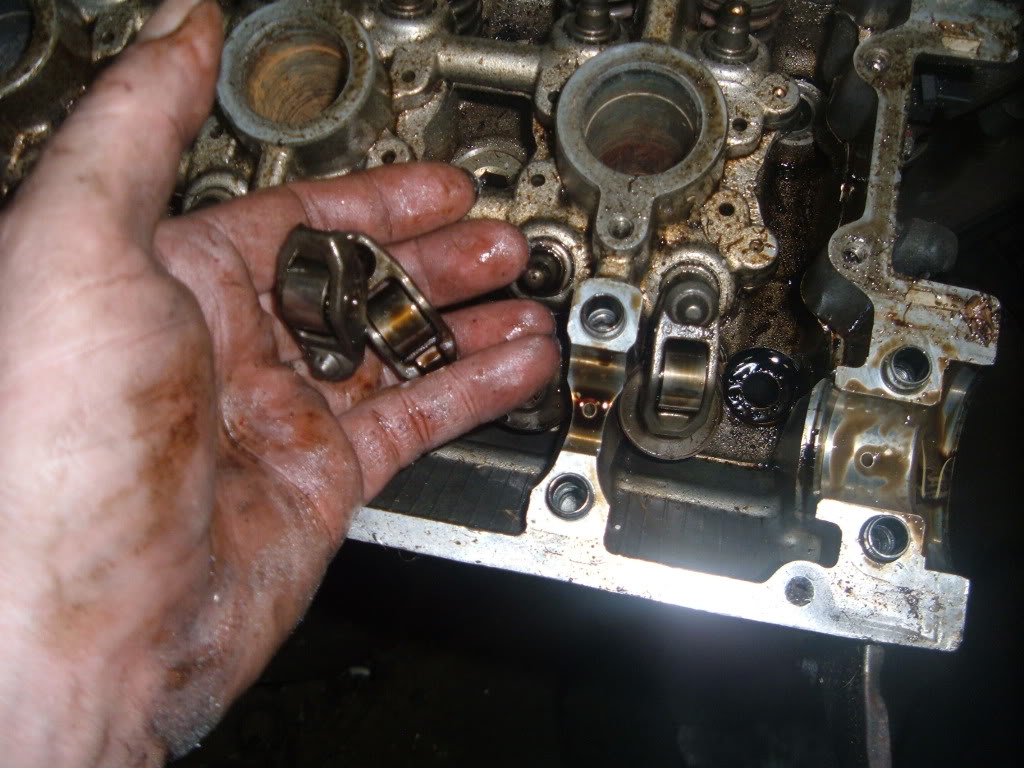

Next lift the roller followers out
Name:  006.jpg
Views: 209
Size:  132.0 KB

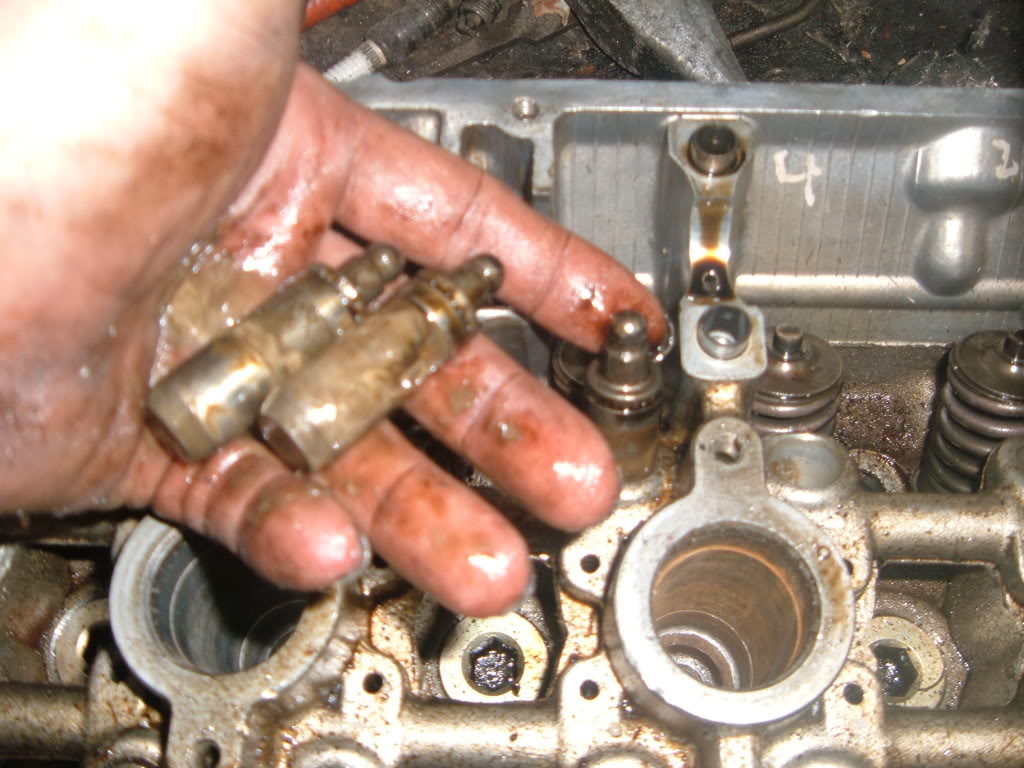

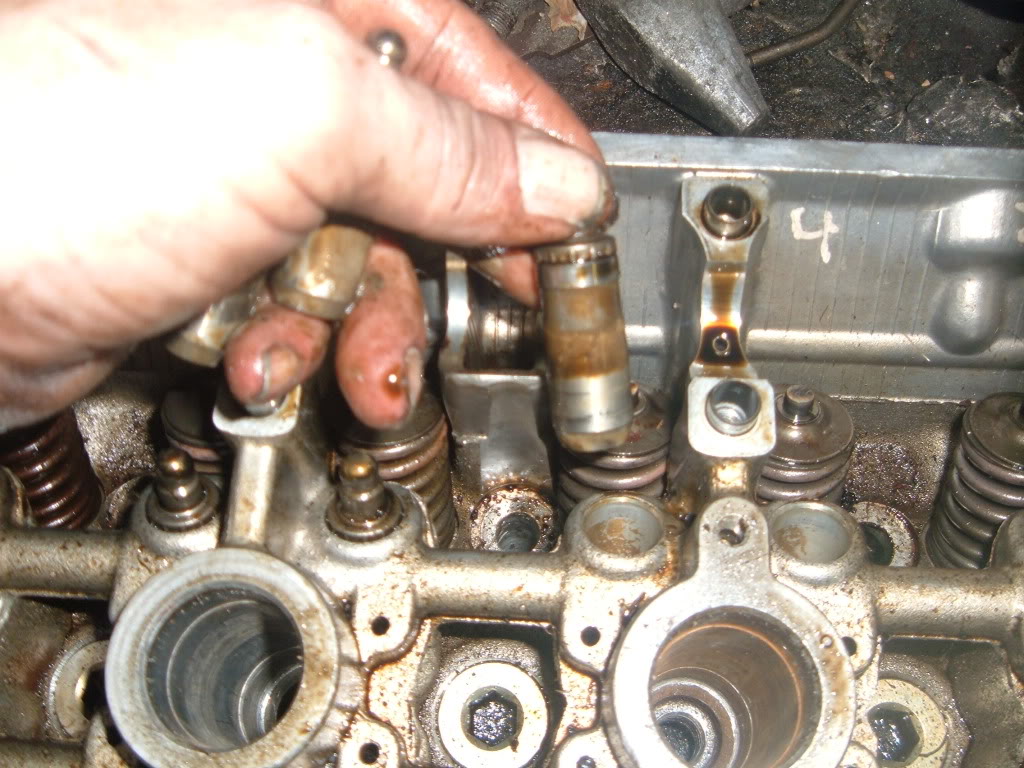

Now you can remove the HLA’s
Name:  008.jpg
Views: 247
Size:  155.3 KB
Name:  007.jpg
Views: 207
Size:  131.0 KB

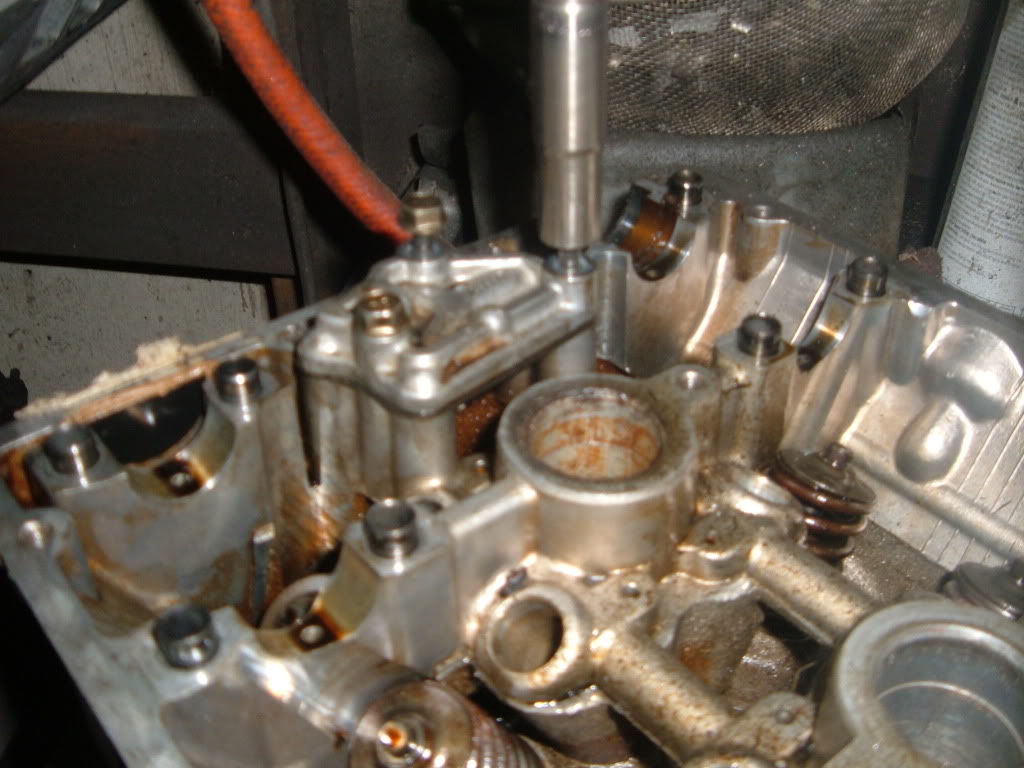

Now remove the oil spliter
Name:  011.jpg
Views: 214
Size:  104.0 KB

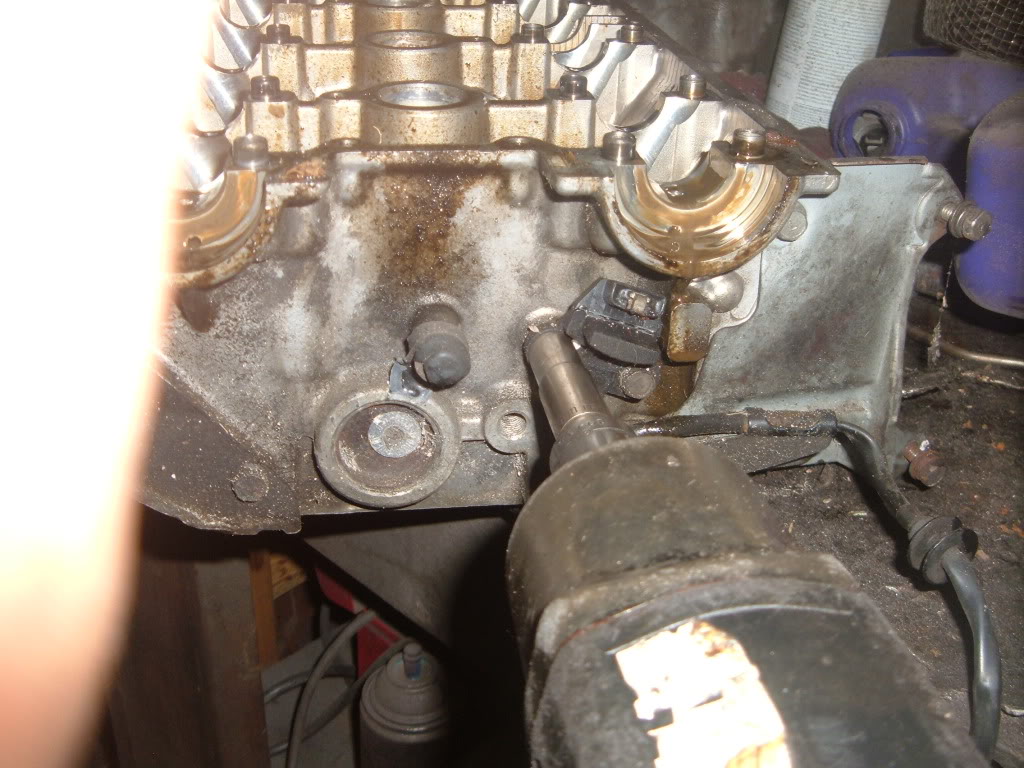

Now remove any other small bolts
Name:  009.jpg
Views: 334
Size:  144.2 KB

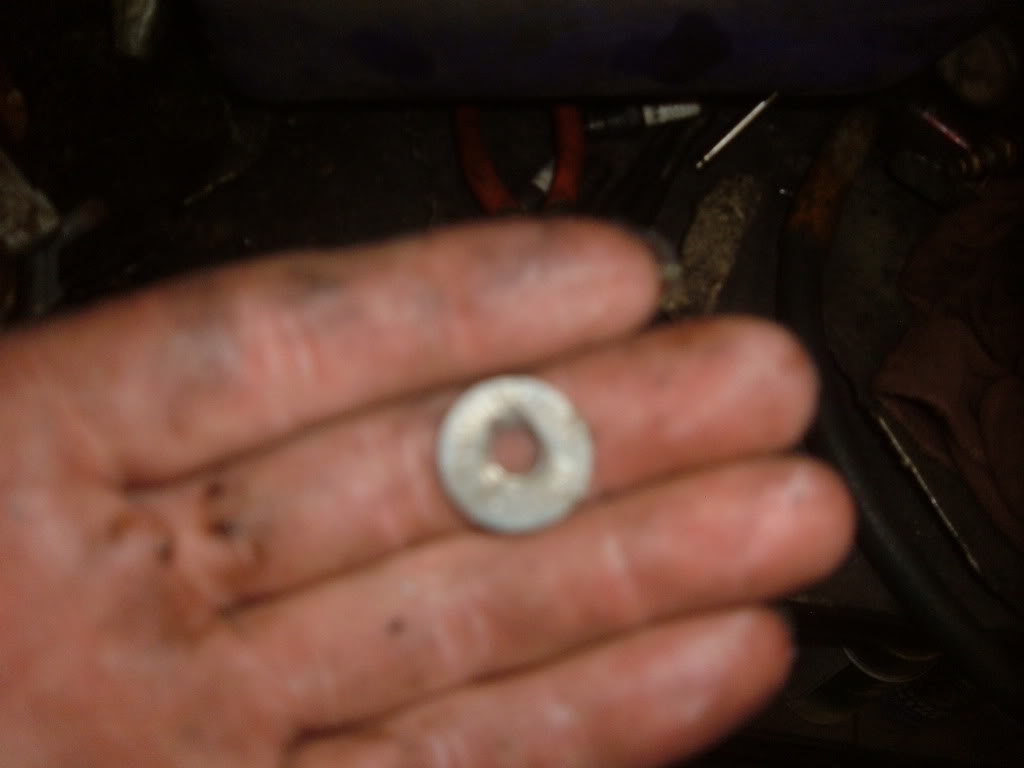

This is a “heat tab” Most machine shops use them.
The center will slide down at 240-250* and totally dissolve at 260*
Name:  010.jpg
Views: 240
Size:  41.8 KB

Next is to remove the valve train.
Yes the same method that a lot of DIY people use are used in a machine shop.

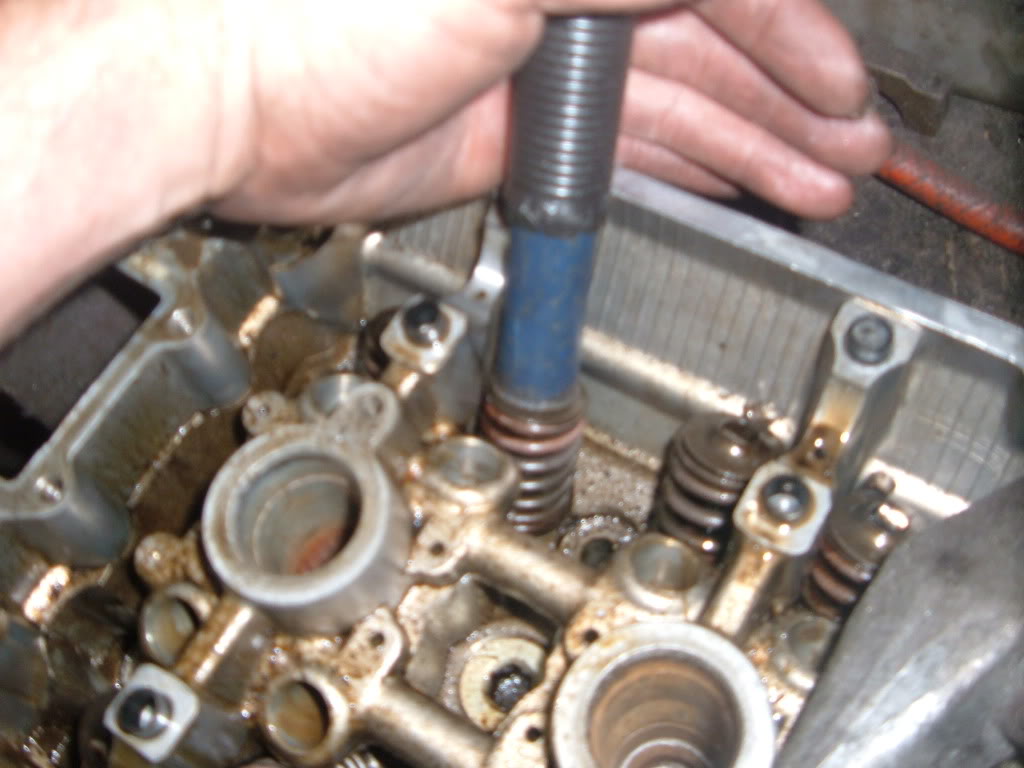

Use a basket and a paint cap, have a pocket magnet handy too.
Name:  029.jpg
Views: 234
Size:  85.4 KB
Have your “tool” and hammer ready to go

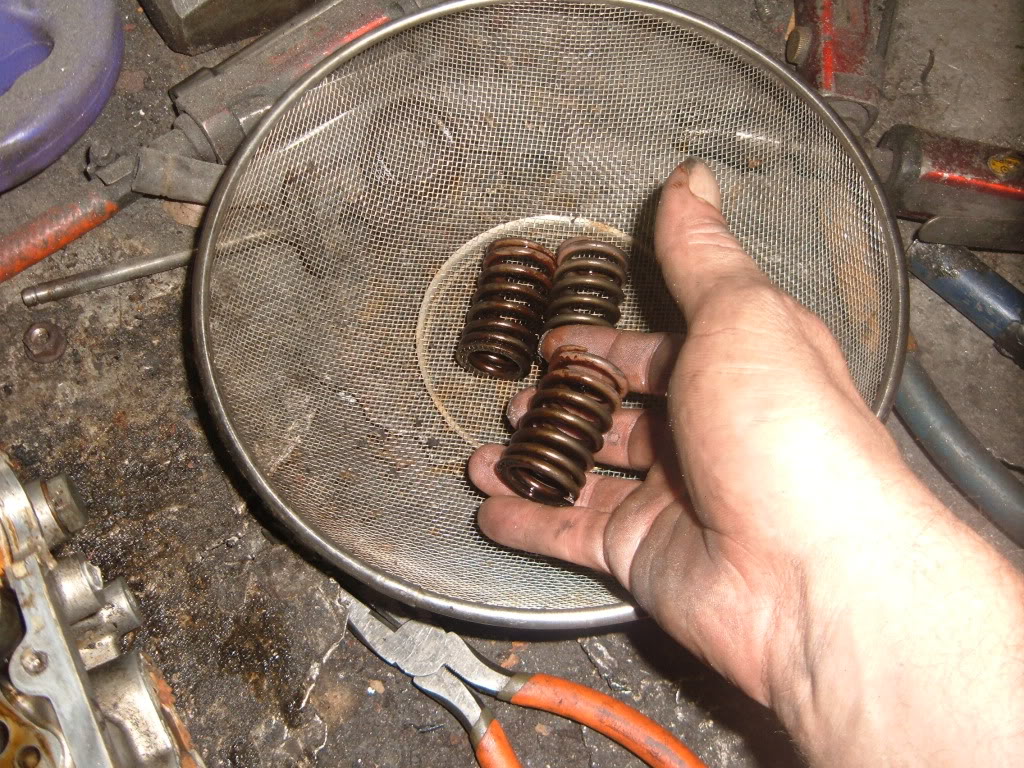

Place the tool on the spring retainer and give it a firm whack.
The locks will stay in the tool and release the retainer and spring.
Place the retainers and spring in the basket
Name:  031.jpg
Views: 253
Size:  256.8 KB

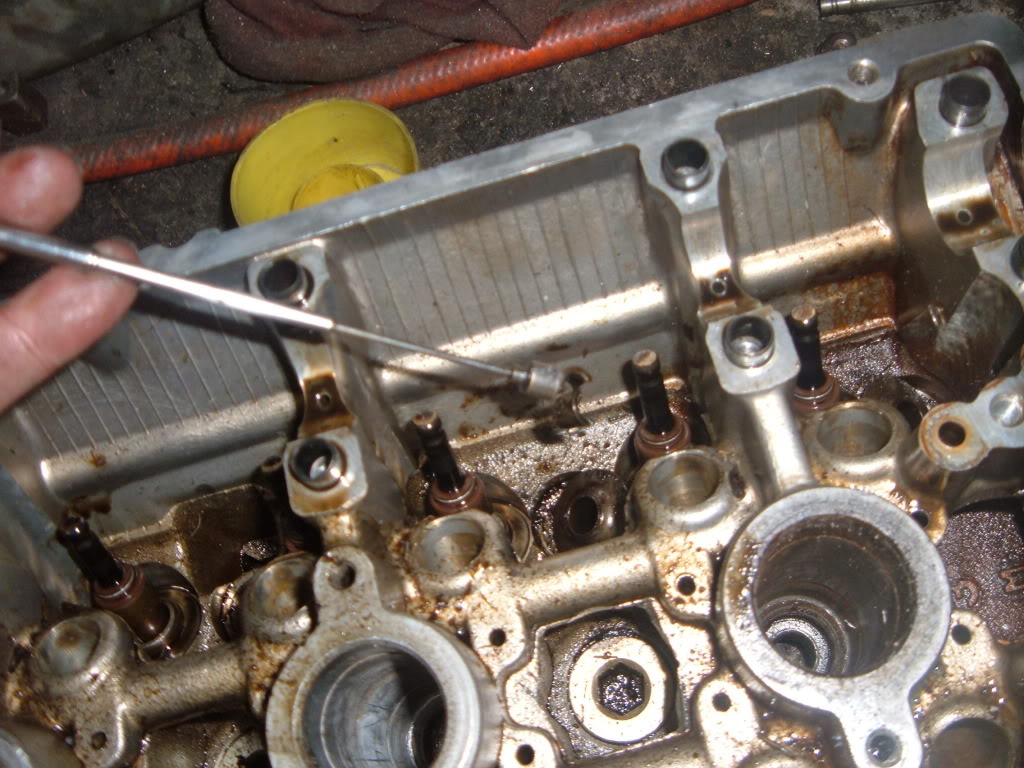

Fish the valve locks out of the head casting with the pocket magnet.
Name:  032.jpg
Views: 285
Size:  152.1 KB

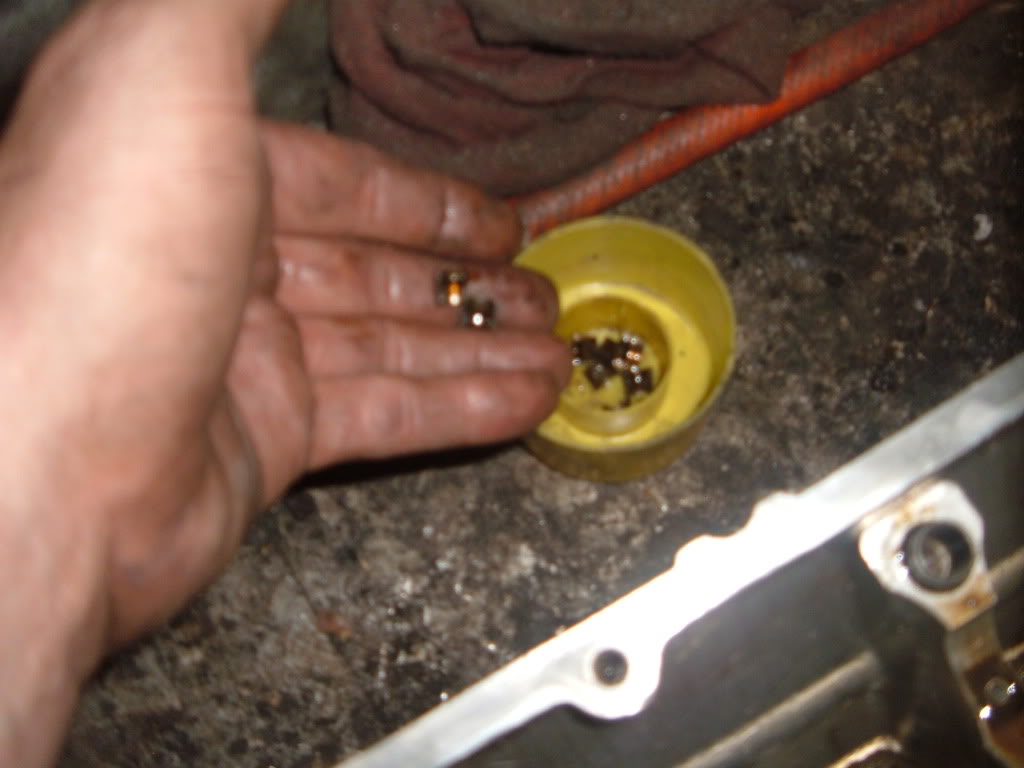

Place the valve locks in the paint can cap.
Name:  033.jpg
Views: 226
Size:  65.4 KB

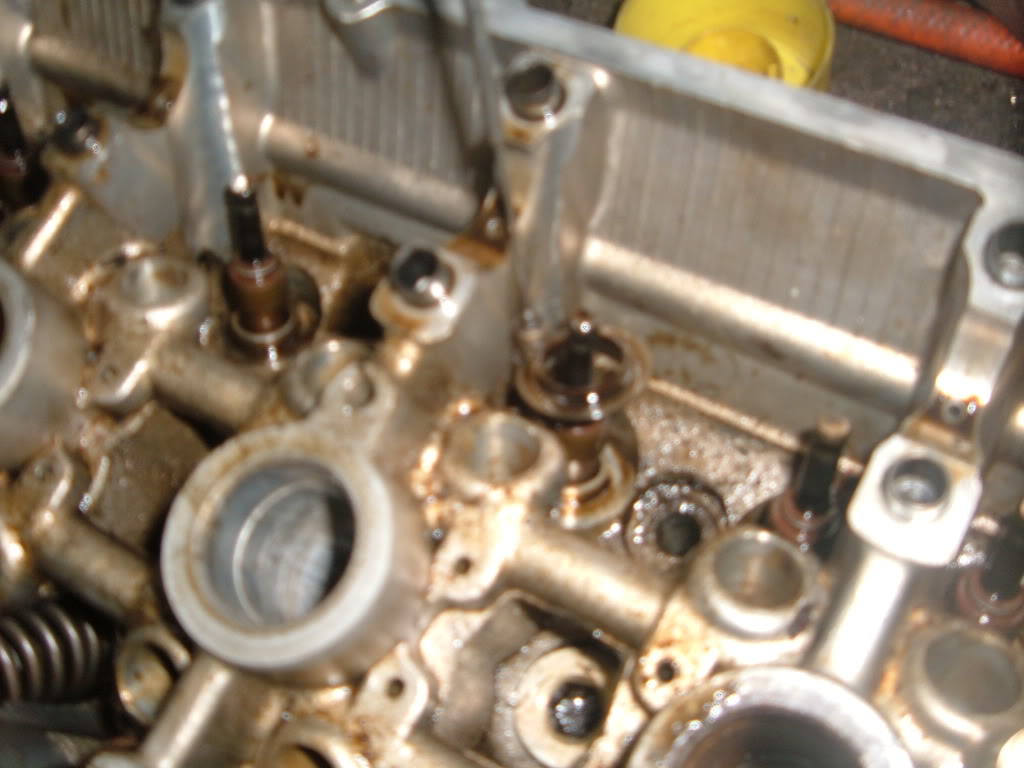

Now remove the spring seats with the pocket magnet and place in the spring basket to be cleaned.
Name:  034.jpg
Views: 208
Size:  83.7 KB

  #2
Old 02-02-2013, 09:06 AM
BogusSVO's Avatar
Member
Thread Starter
Join Date: Dec 2009
Location: Pensacola Fla
Posts: 52
Wink

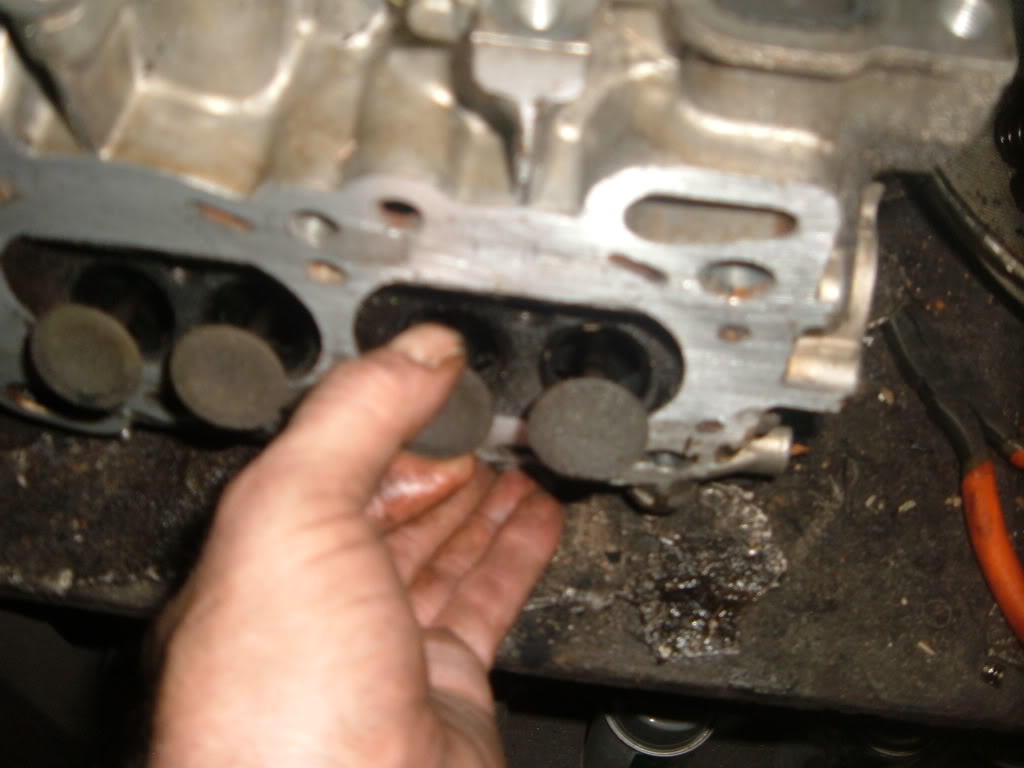

Next roll the head over and remove the valves and place in the basket.
Name:  035.jpg
Views: 253
Size:  69.2 KB
This head was rebuilt once before, it must have had bent valves.So I will change the valve guides.

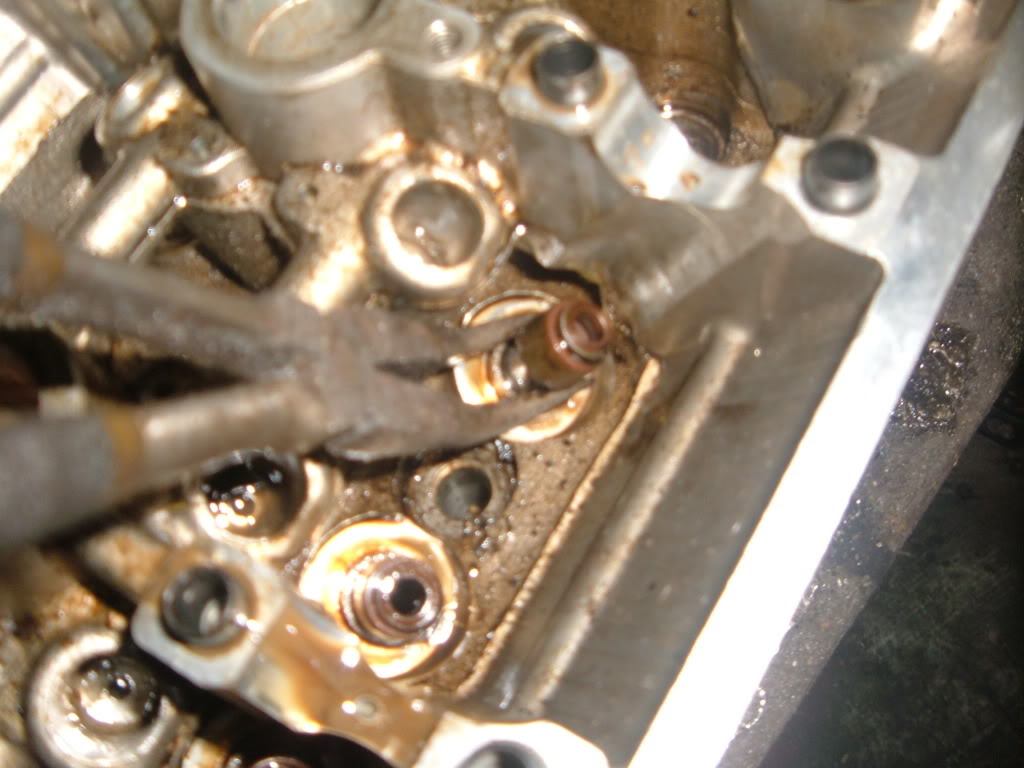

Now roll the head back over and remove the valve stem seals, throw these in the trash.
Name:  037.jpg
Views: 257
Size:  93.1 KB

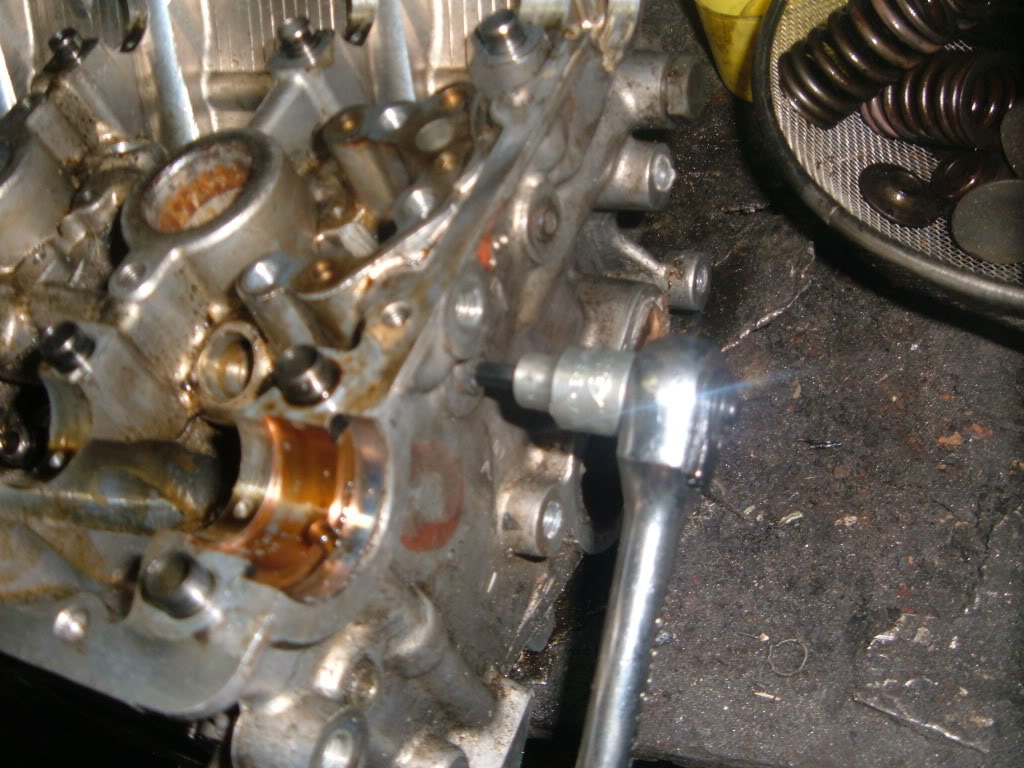

Next grab the 5mm allen bit and remove all the oil galley plugs. Keep these to be installed later, place in the paint cap with the valve locks.
Name:  038.jpg
Views: 262
Size:  140.5 KB

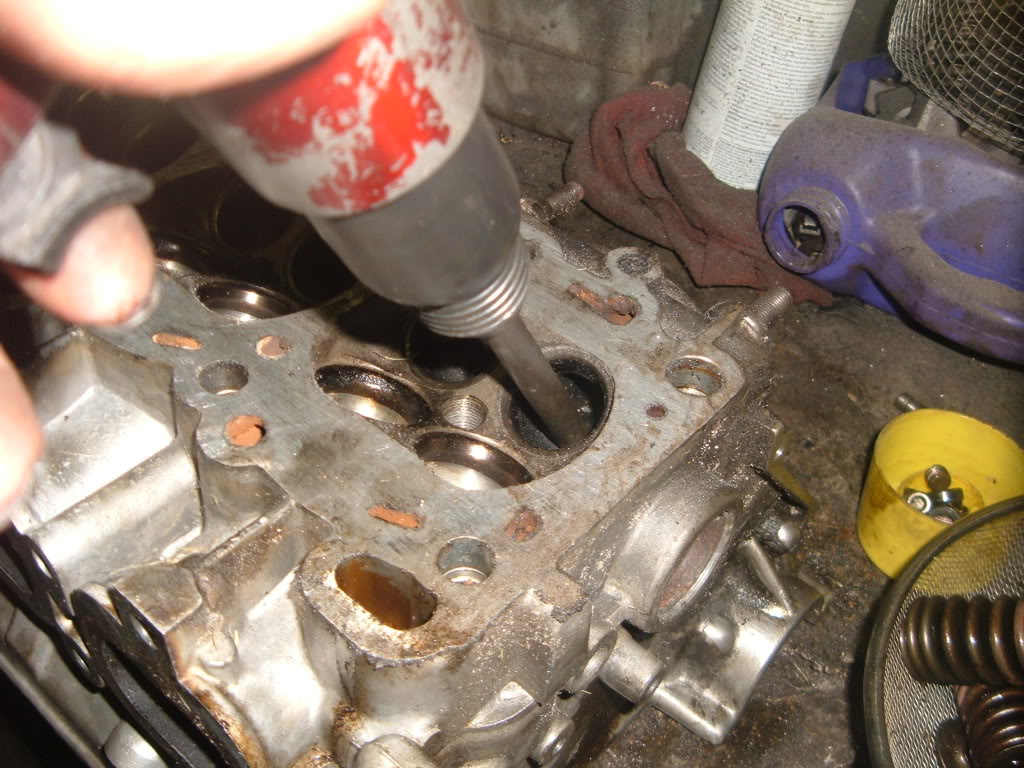

The last thing done is to remove the cracked valve guides.
Name:  041.jpg
Views: 231
Size:  166.1 KB

Now that the head is fully stripped, it can be tech’ed
First thing is to do a quick clean on the head gasket surface.
Name:  017.jpg
Views: 143
Size:  152.5 KB

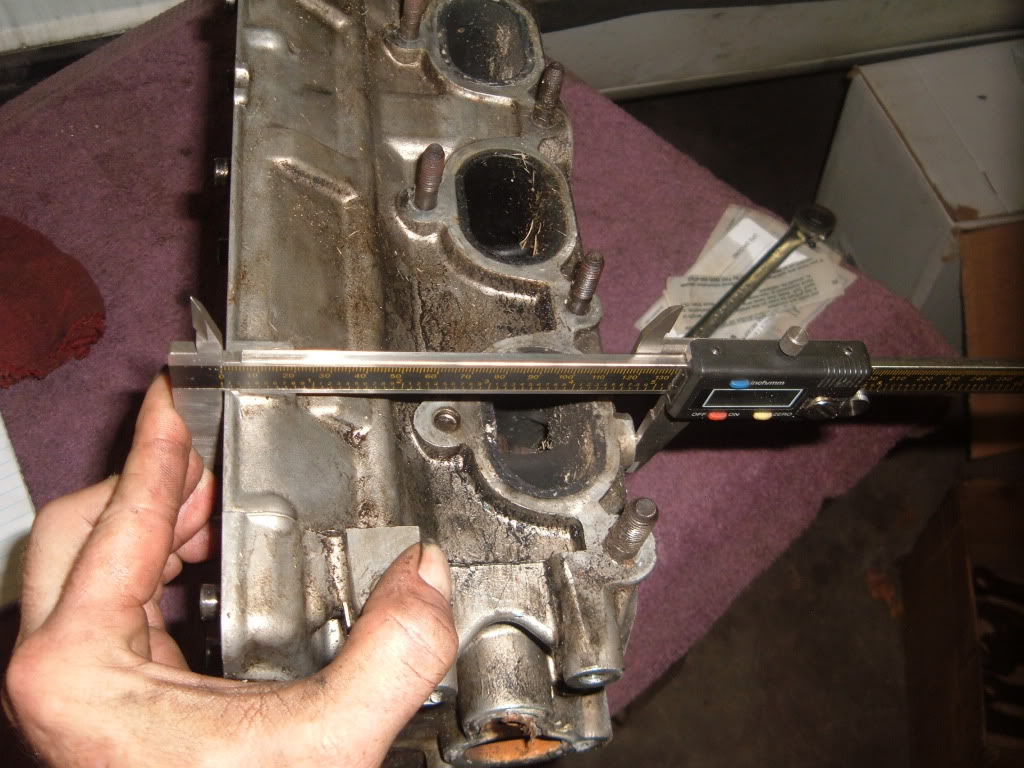

Next is to measure head thickness.
Name:  021.jpg
Views: 174
Size:  141.2 KB

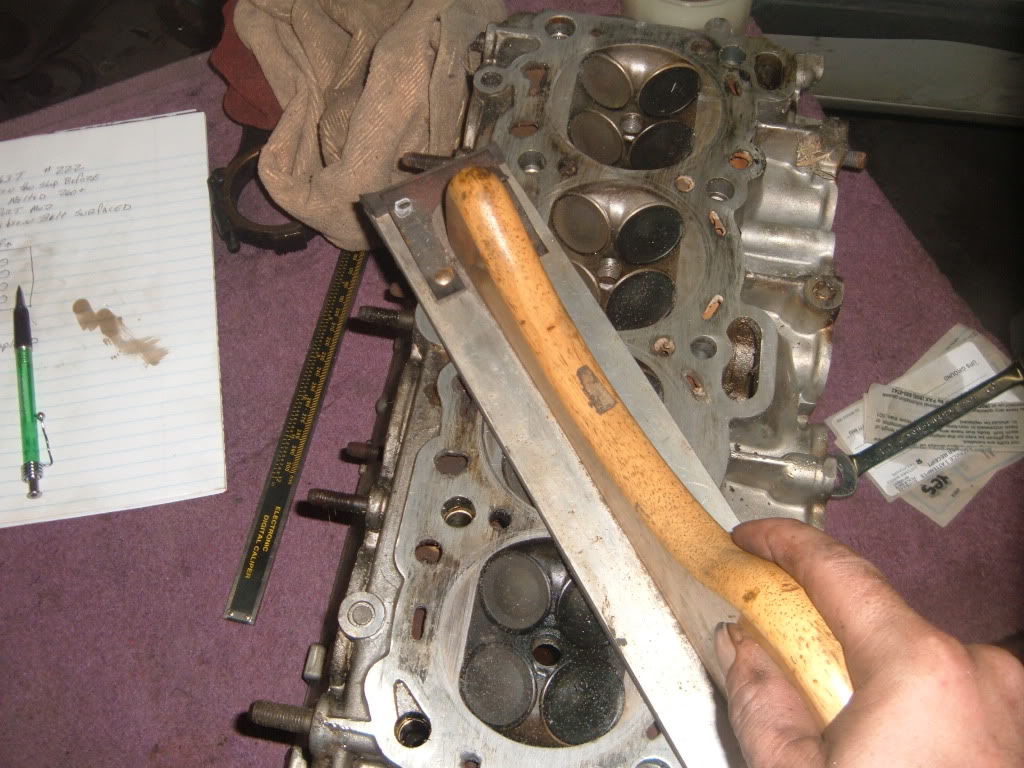

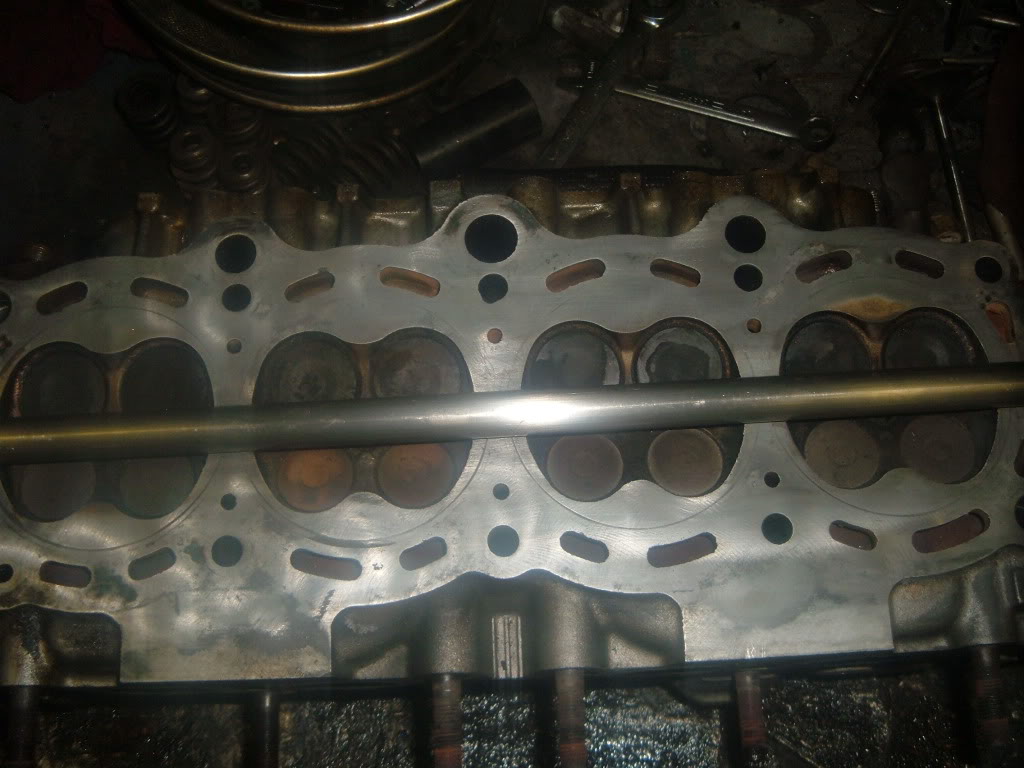

Now to check to see how bad the head is warped.
Name:  DSCF3975.jpg
Views: 178
Size:  101.1 KB
Notes are taken to reference back too.
Name:  025.jpg
Views: 212
Size:  80.5 KB

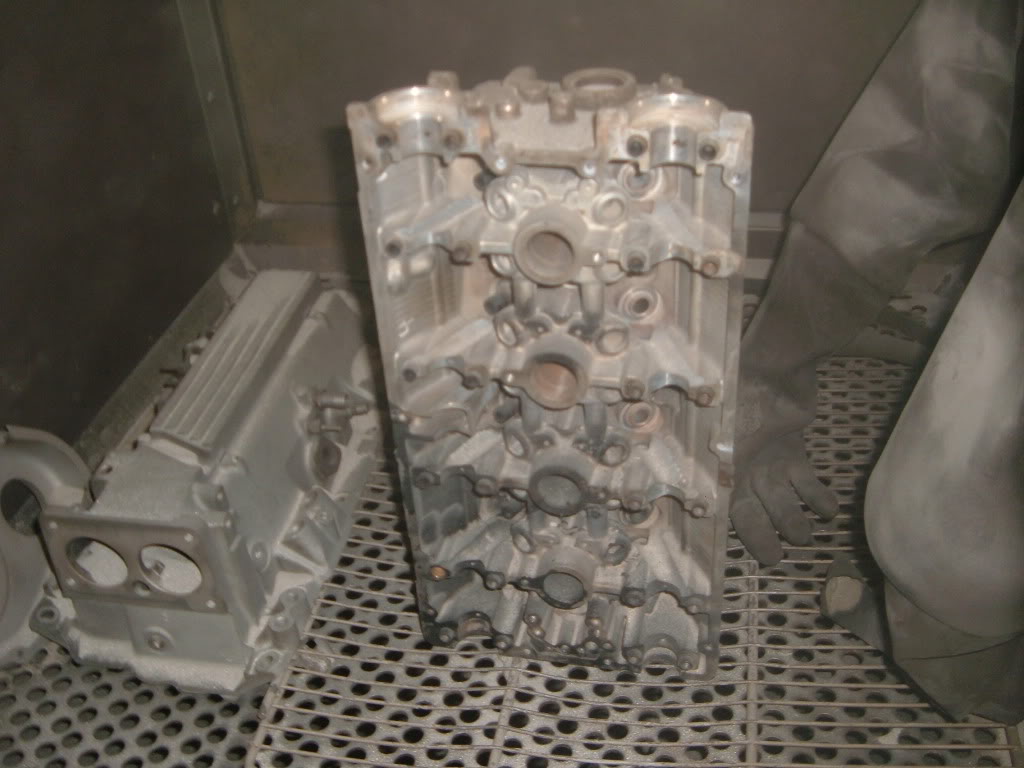

If it all checks out, it goes to cleaning.
It gets thermal cleaning, then glass beaded.
Name:  042.jpg
Views: 271
Size:  89.1 KB

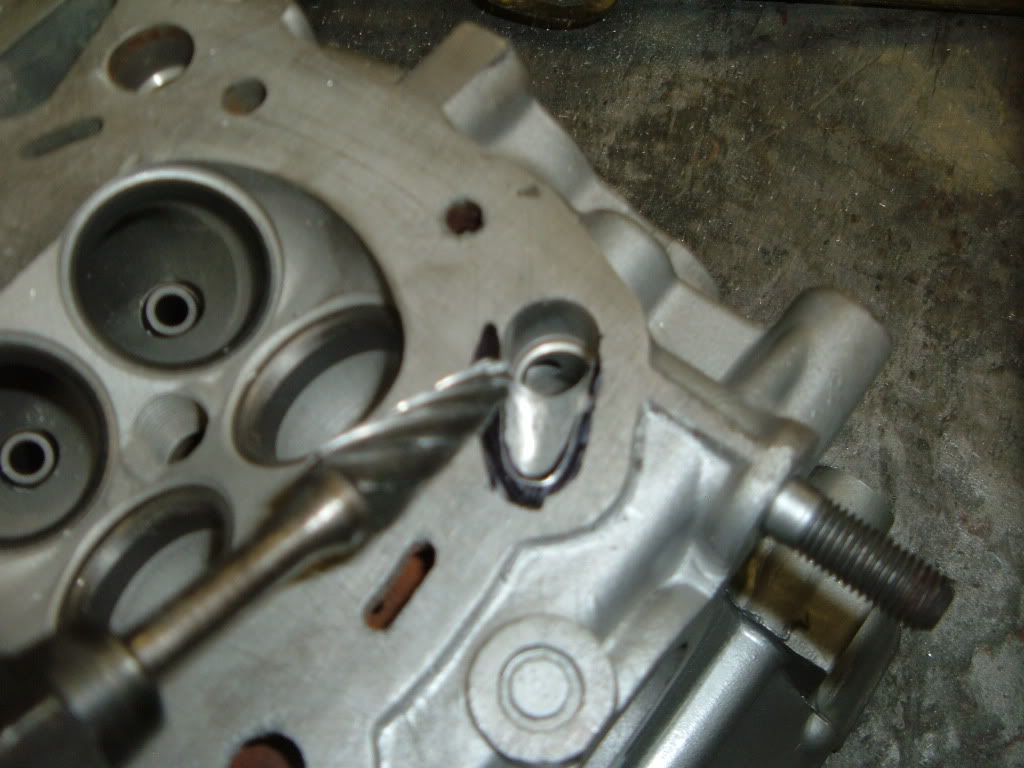

Next oil port mod #1 is done
Name:  065.jpg
Views: 249
Size:  93.2 KB

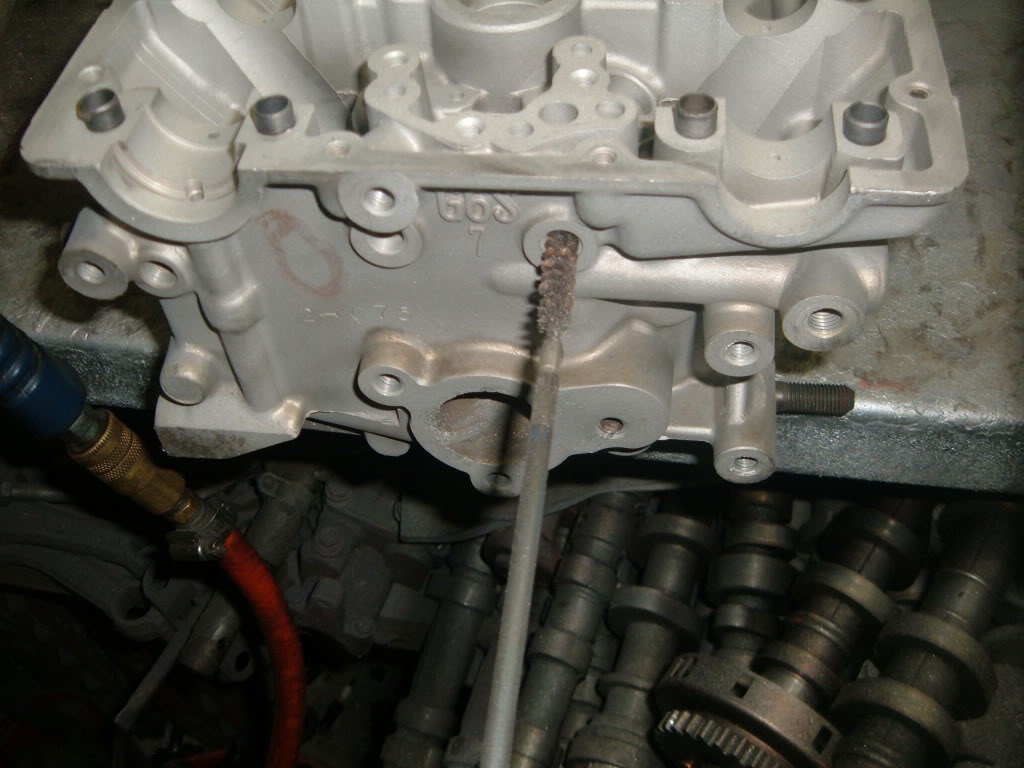

Next all the oil galleys get gun brushed
Name:  049.jpg
Views: 240
Size:  95.8 KB

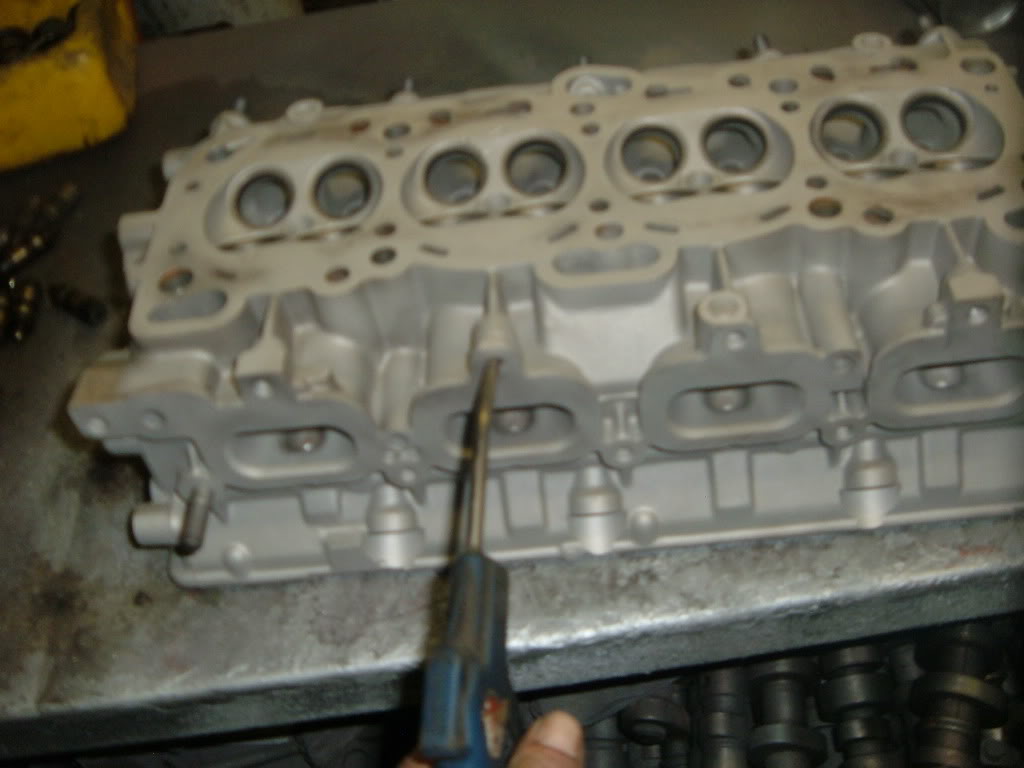

Now the entire head will be blown off with compressed air, including every bolt hole to make sure there is no glass bead media is left in or on the casting.
Name:  047.jpg
Views: 214
Size:  65.4 KB

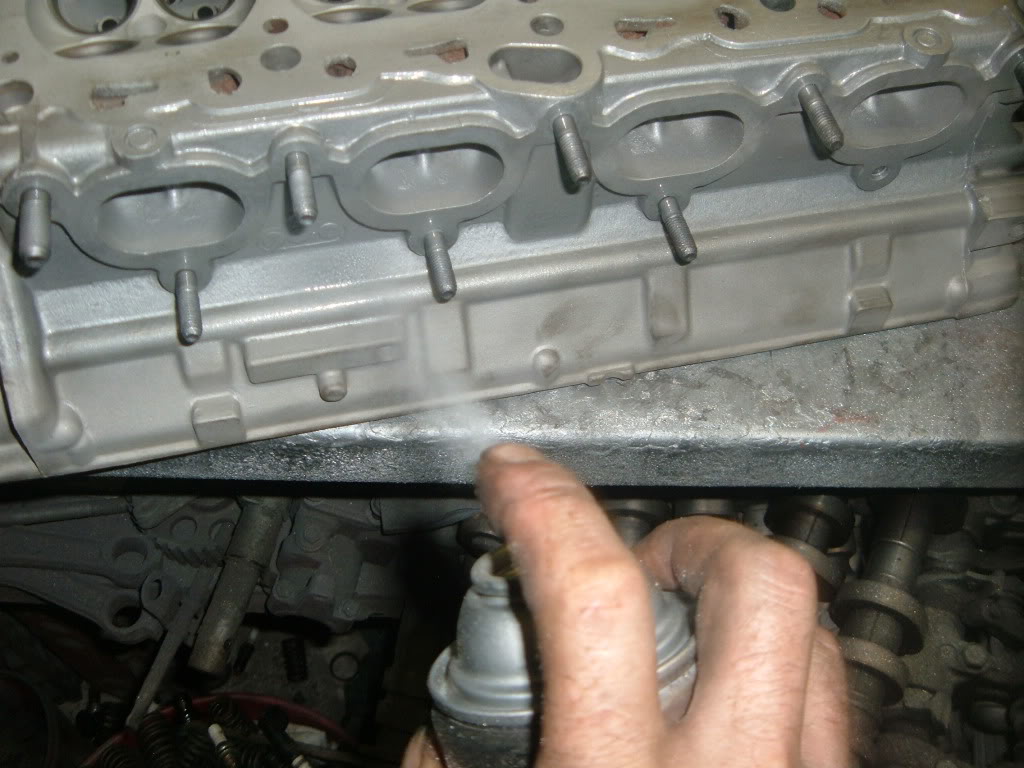

next is a coat of spray paint to seal the casting.
Name:  051.jpg
Views: 288
Size:  110.2 KB

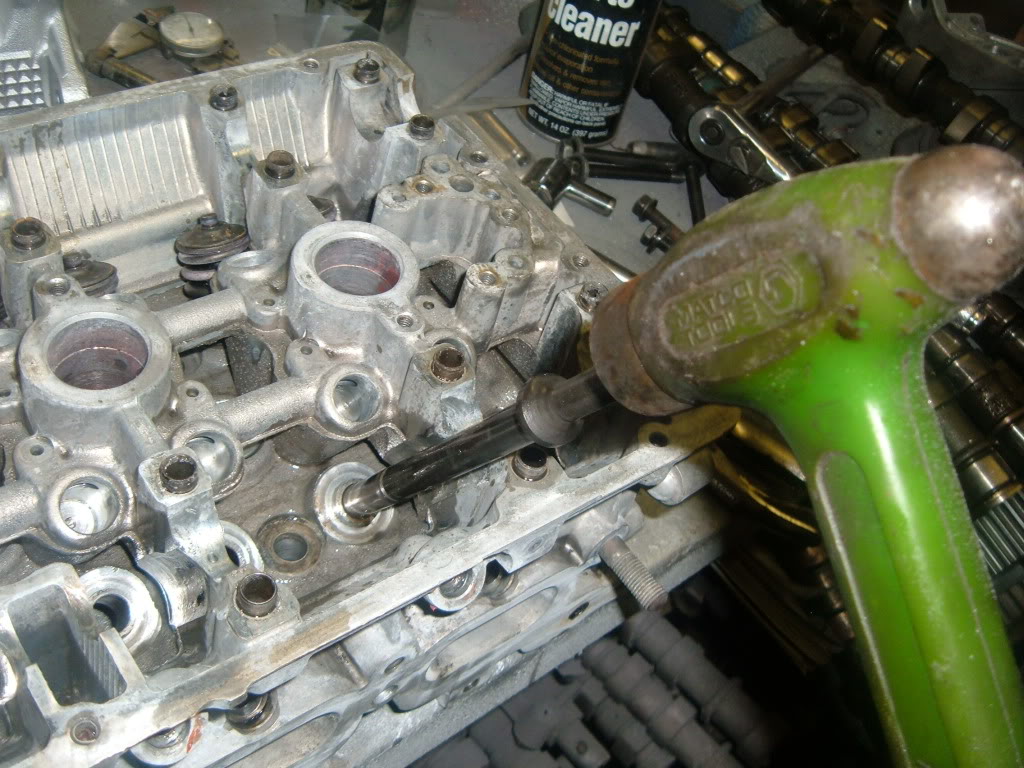

Now new guides can be installed.
Name:  DSCF3932.jpg
Views: 159
Size:  157.2 KB

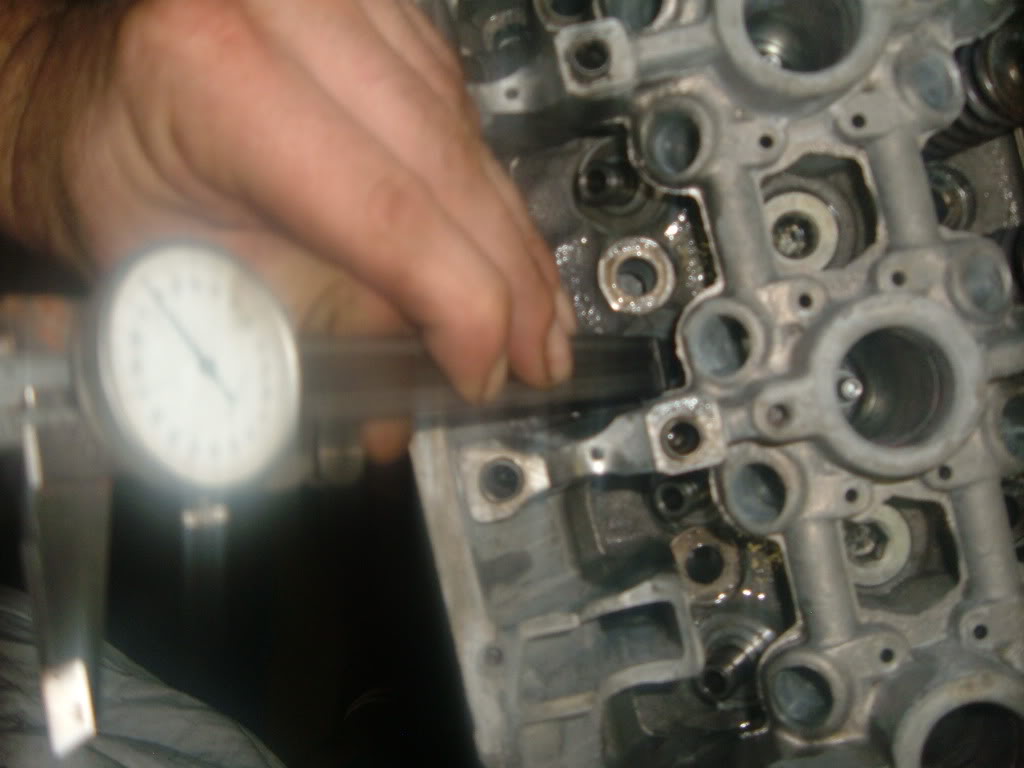

They are set to height.
Name:  DSCF3934.jpg
Views: 160
Size:  65.5 KB
Now the valve seats can be cut.

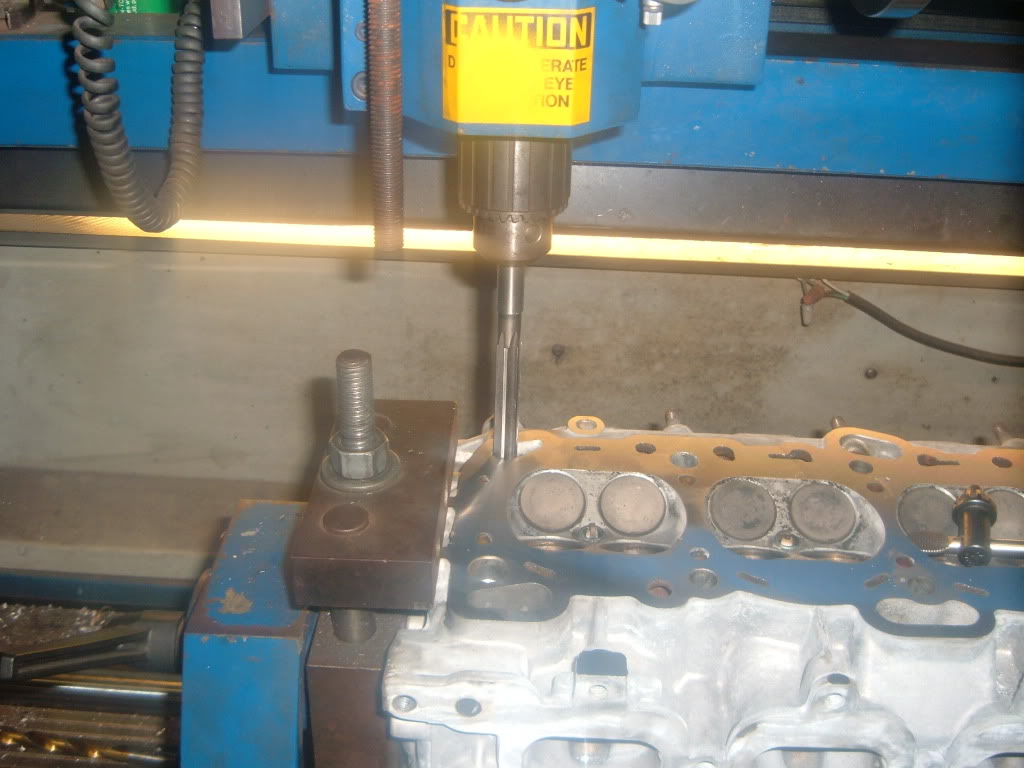

Fist is to set the head in the machine and secure it properly.
Name:  DSCF4001.jpg
Views: 310
Size:  93.1 KB

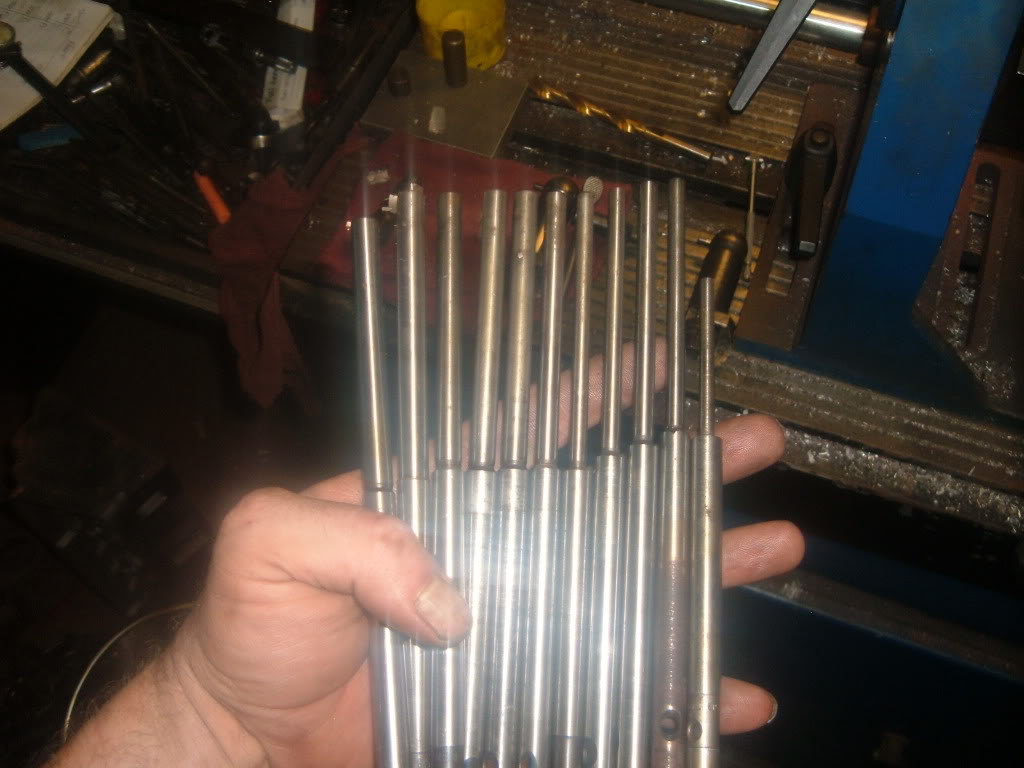

The proper sized pilot is selected.
Name:  DSCF4003.jpg
Views: 240
Size:  90.1 KB

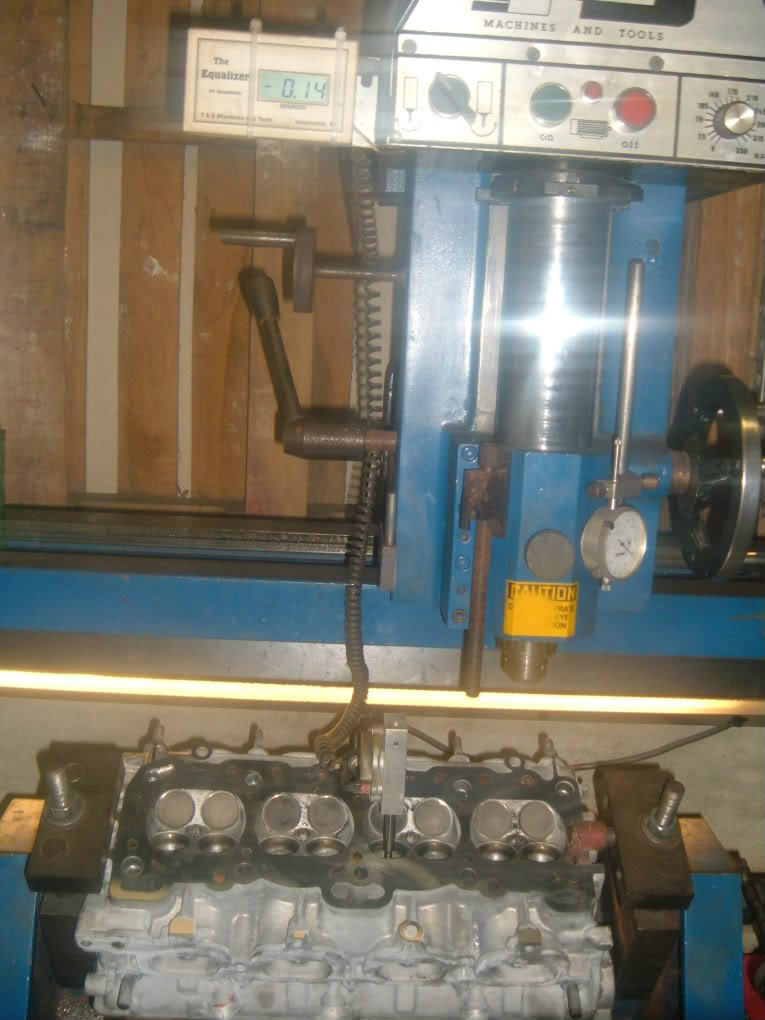

The head is now leveled in the machine.
Name:  DSCF4004.jpg
Views: 235
Size:  109.9 KB


Last edited by BogusSVO; 02-02-2013 at 09:11 AM.
  #3
Old 02-02-2013, 09:07 AM
BogusSVO's Avatar
Member
Thread Starter
Join Date: Dec 2009
Location: Pensacola Fla
Posts: 52
Default

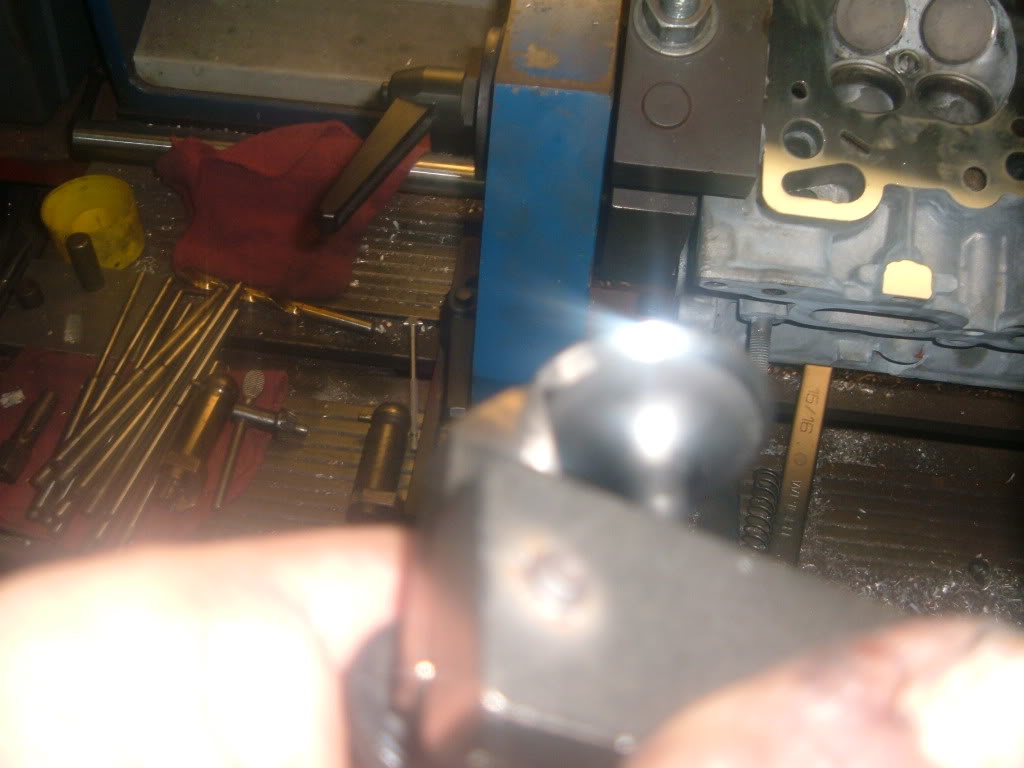

Now to set up the seat cutter.
First is to find where the seat is to make contact on the valve.
Name:  DSCF4005.jpg
Views: 229
Size:  77.6 KB

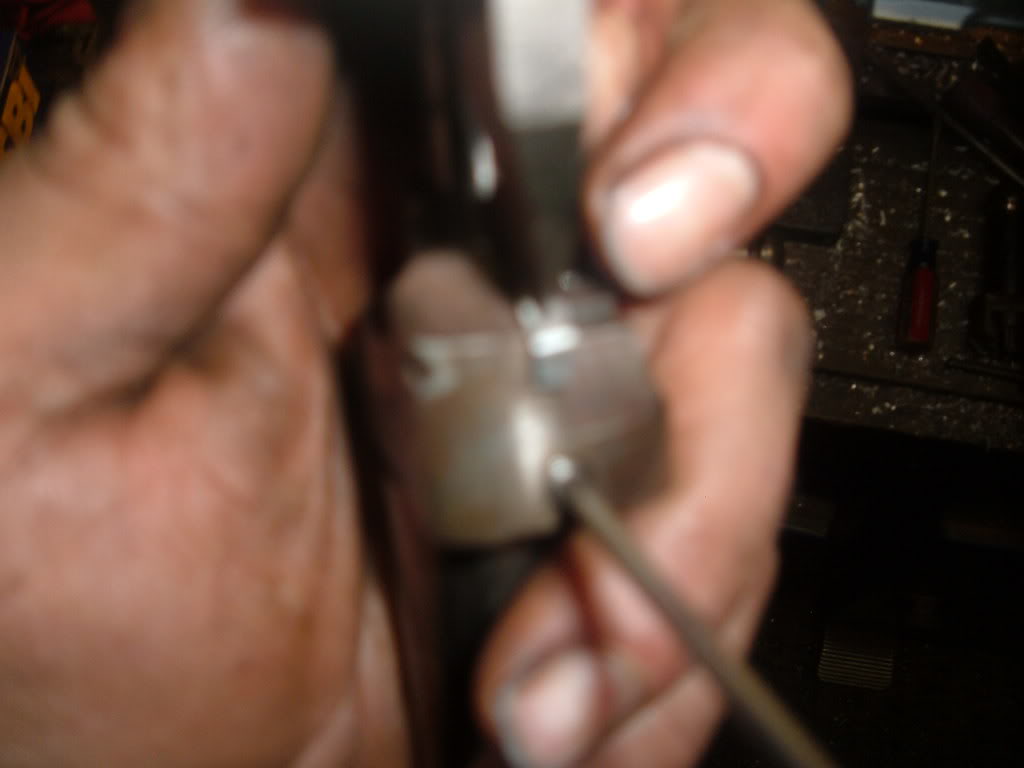

Now the cutter bit can be set.
Name:  DSCF3899.jpg
Views: 254
Size:  43.9 KB

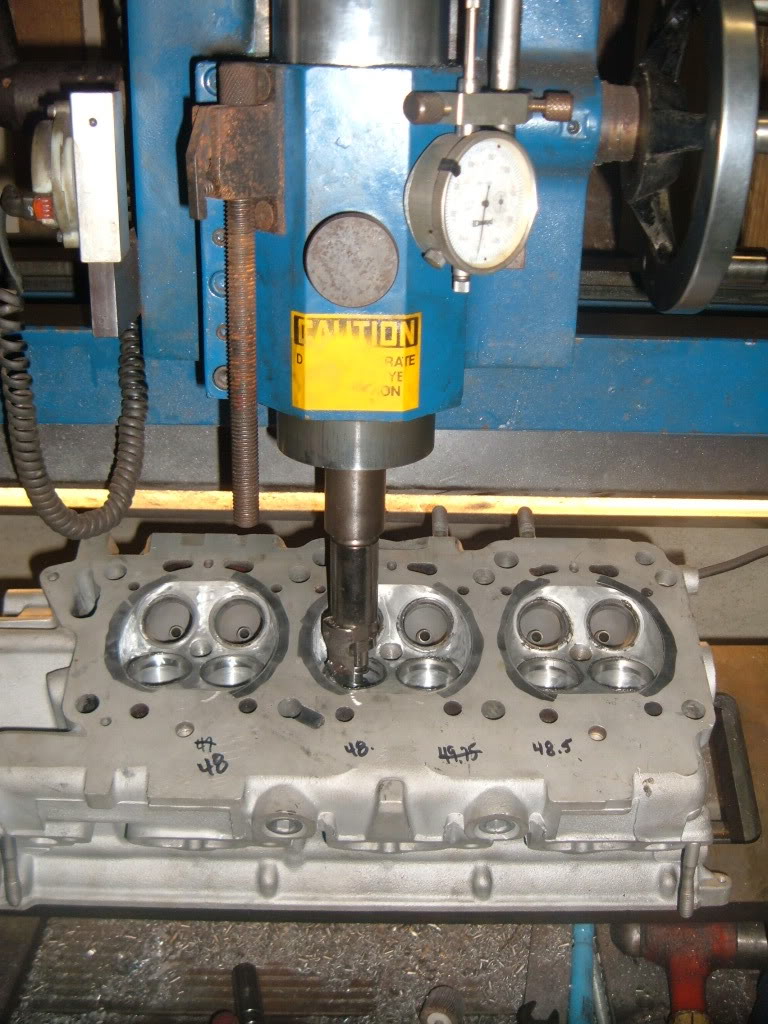

The seats are cut.
Name:  046.jpg
Views: 272
Size:  154.1 KB

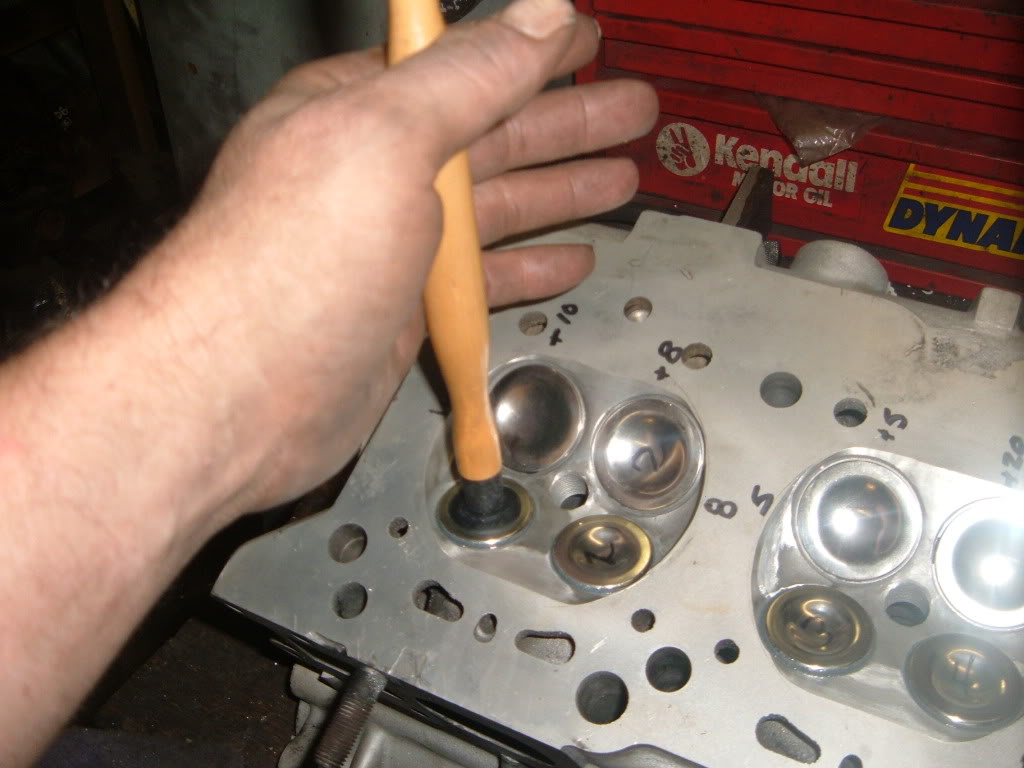

Now the valves are lapped.
Name:  043.jpg
Views: 310
Size:  87.4 KB

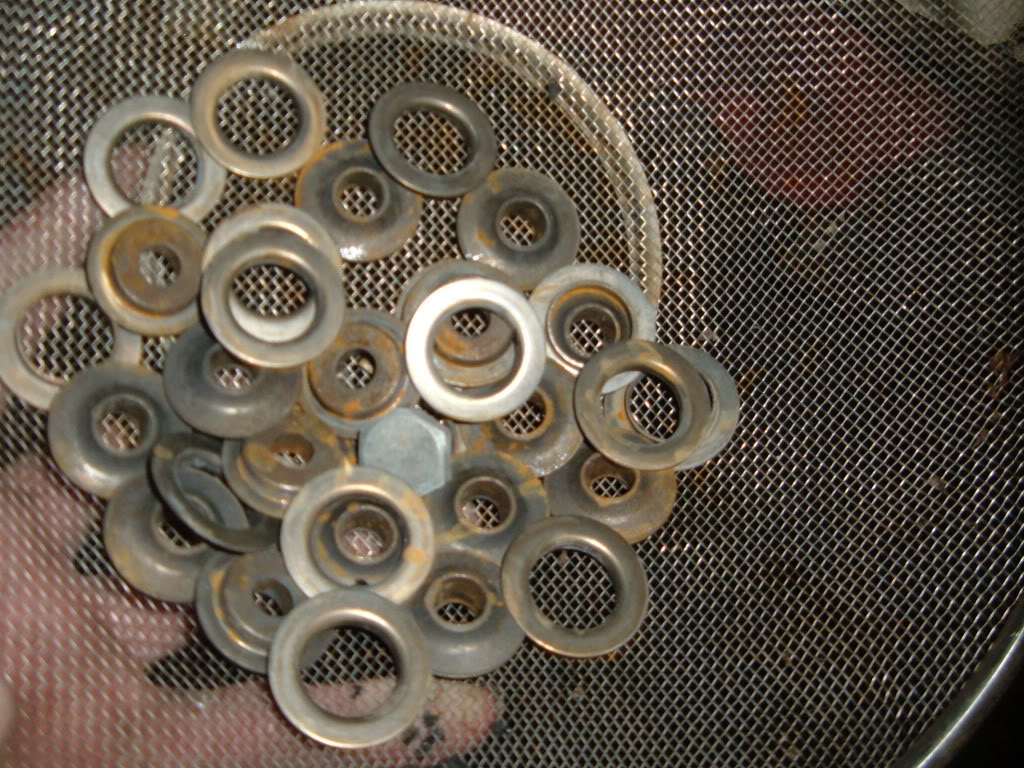

The small parts of he head have been cleaned, retainers, springs ect.
Name:  DSCF5528.jpg
Views: 248
Size:  221.9 KB

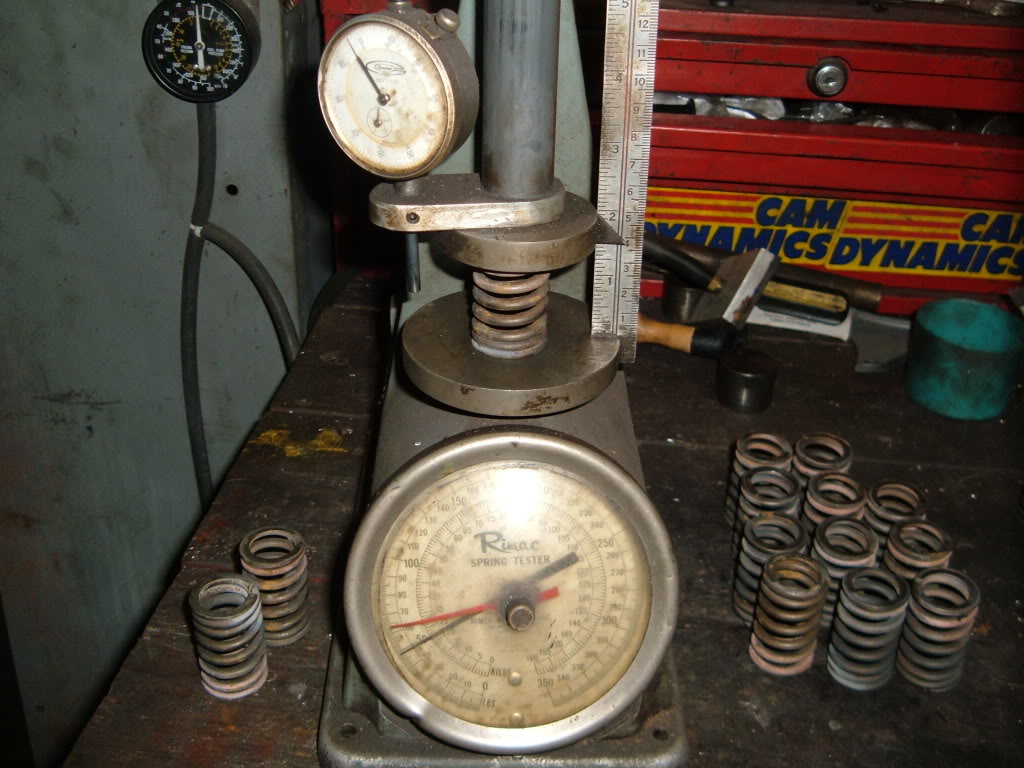

Valve springs are tested.
Name:  DSCF5526.jpg
Views: 251
Size:  124.4 KB

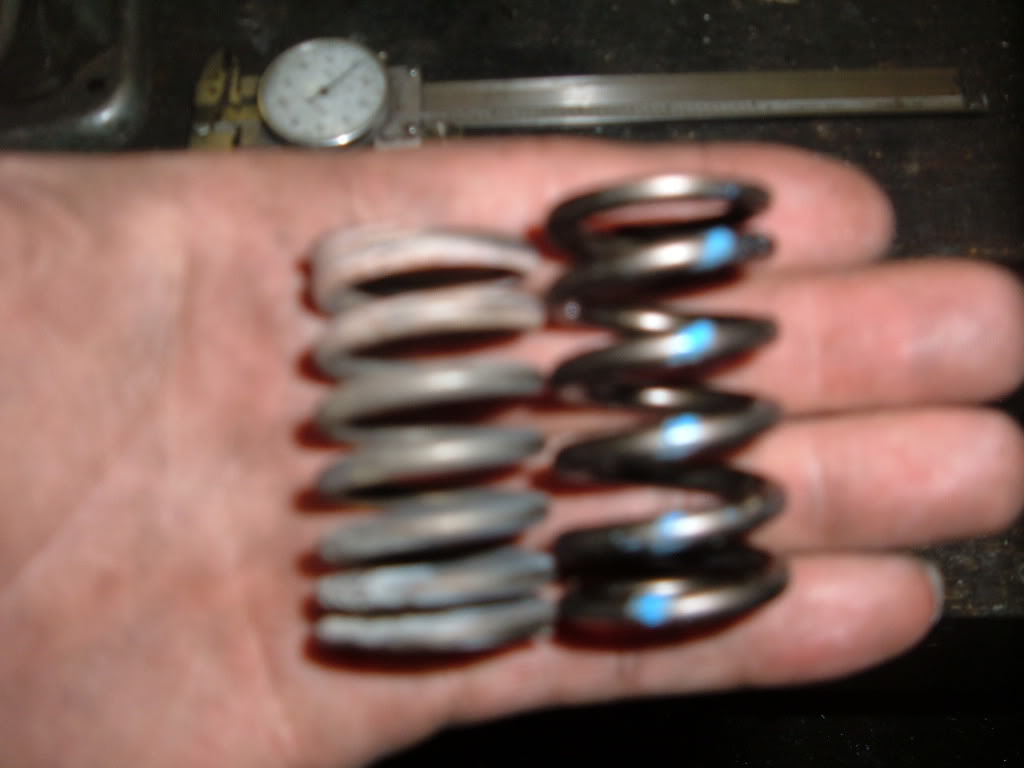

Most valve springs have been found weak, so New BC1100 springs will be installed
(stock spring on left, BC spring on right)
Name:  DSCF5524.jpg
Views: 261
Size:  52.6 KB

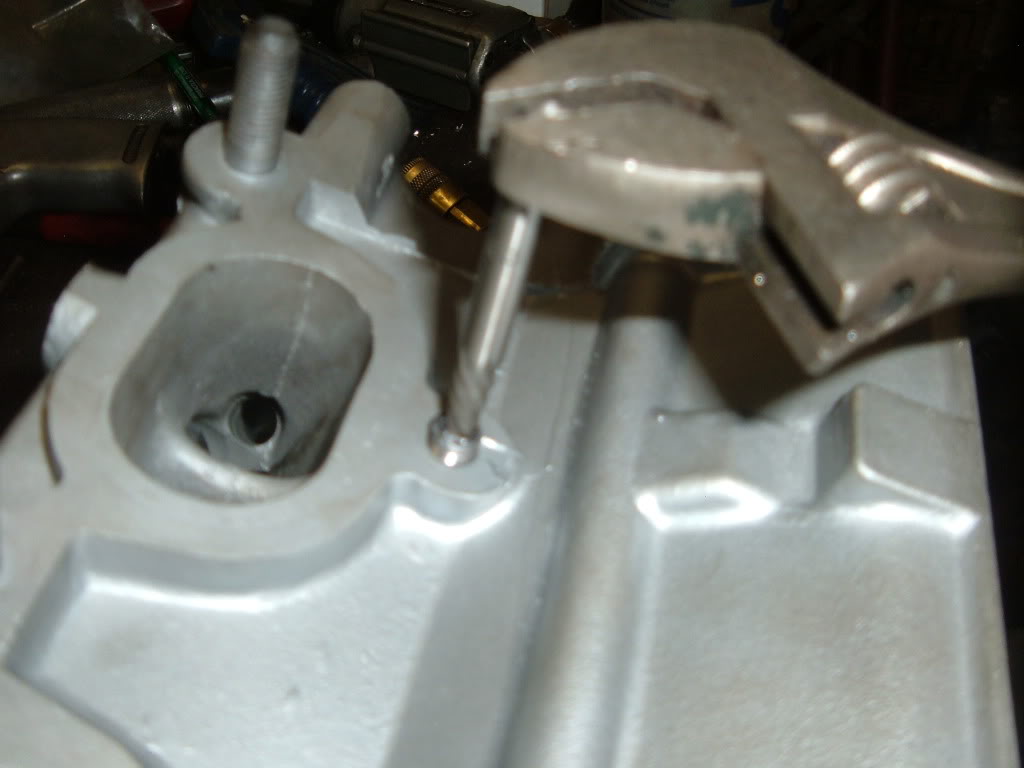

A broken exhaust stud was found and removed.
Name:  DSCF5554.jpg
Views: 152
Size:  54.4 KB

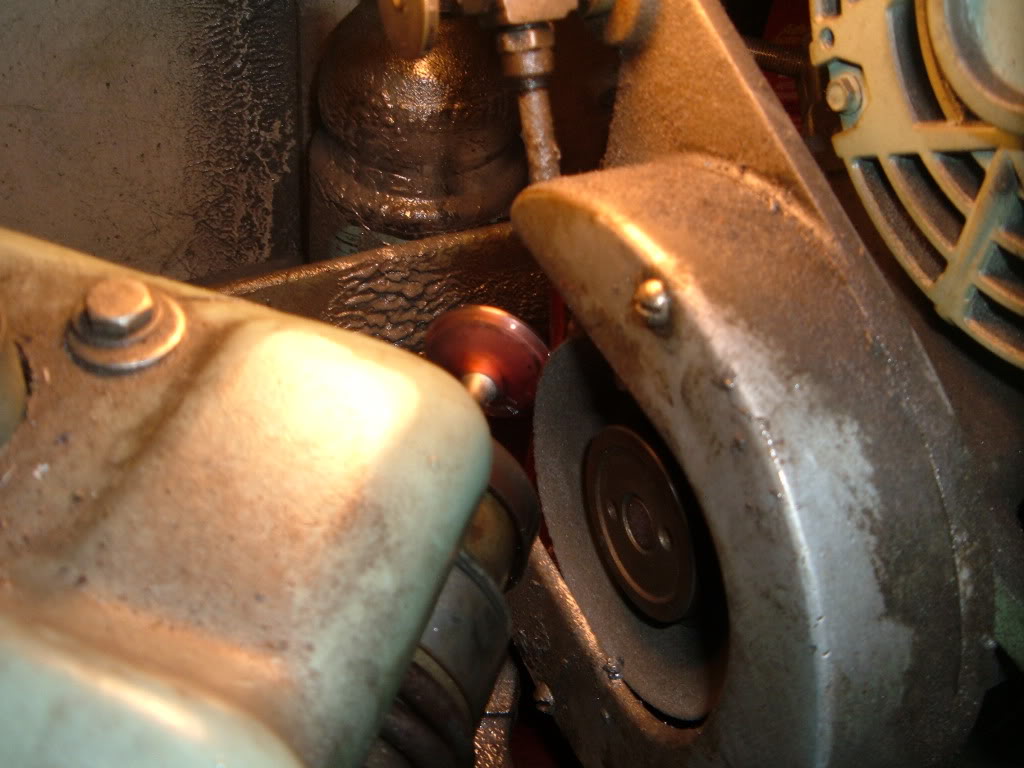

The valves are ground.
Name:  DSCF5519.jpg
Views: 233
Size:  99.2 KB

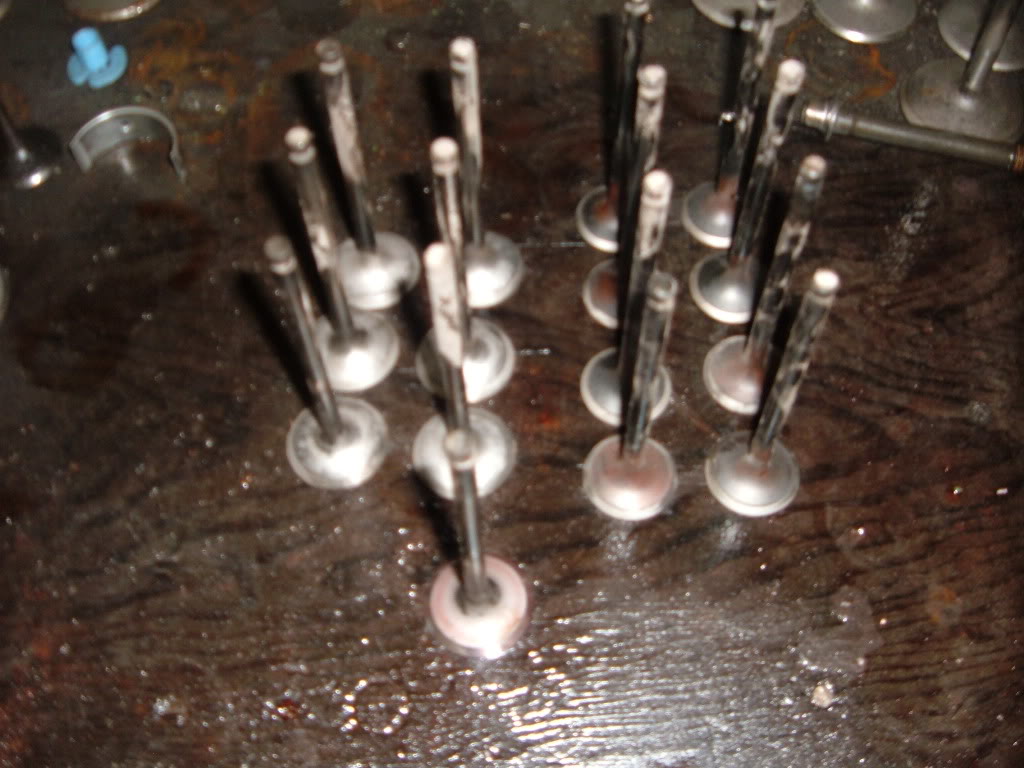

Ground and ready to be installed.
Name:  DSCF5520.jpg
Views: 300
Size:  105.6 KB

Now the head can be surfaced.

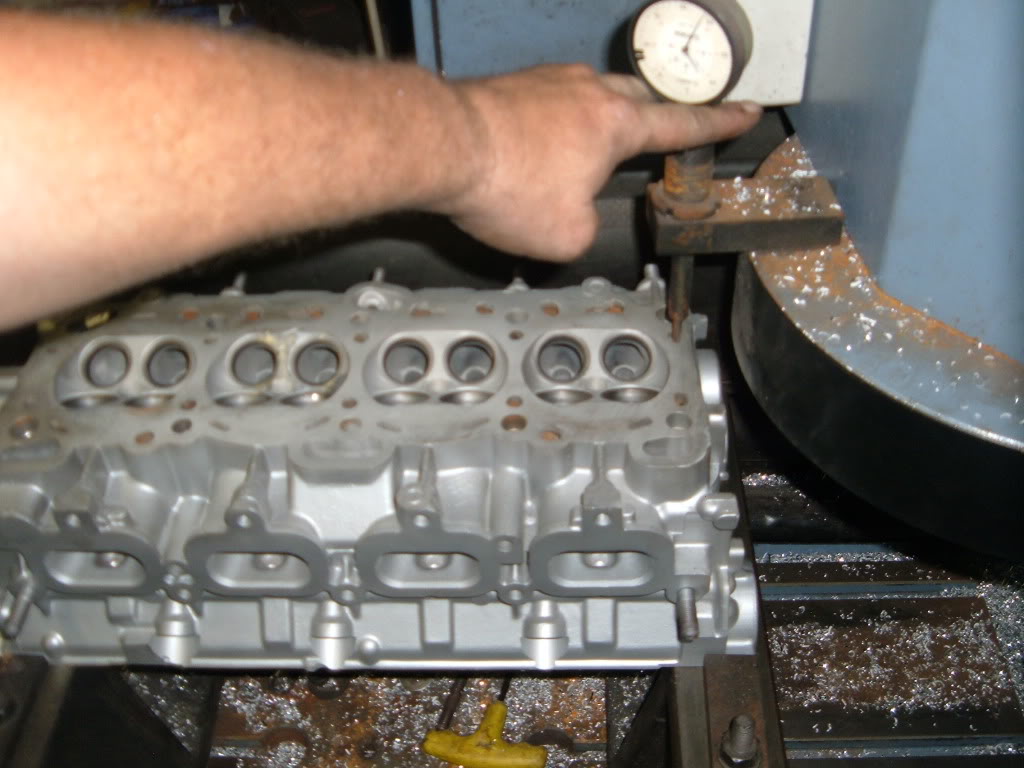

The head is set up and secured to the milling machine.
Name:  066-1.jpg
Views: 247
Size:  101.3 KB

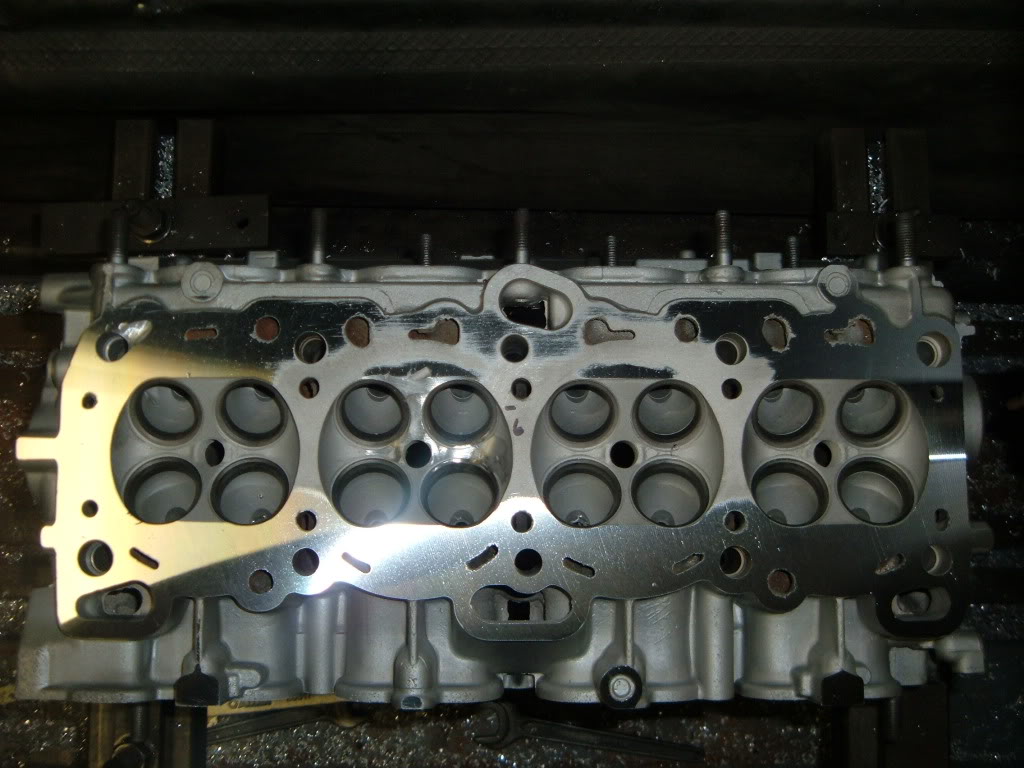

The proper surface finish is milled for the head gasket to be used.
(a composite for this one)
Name:  068-1.jpg
Views: 280
Size:  114.6 KB
The head is now blown out to remove metal flake from milling and seat cutting.
Now that the machining is done, it is time to assemble the head.

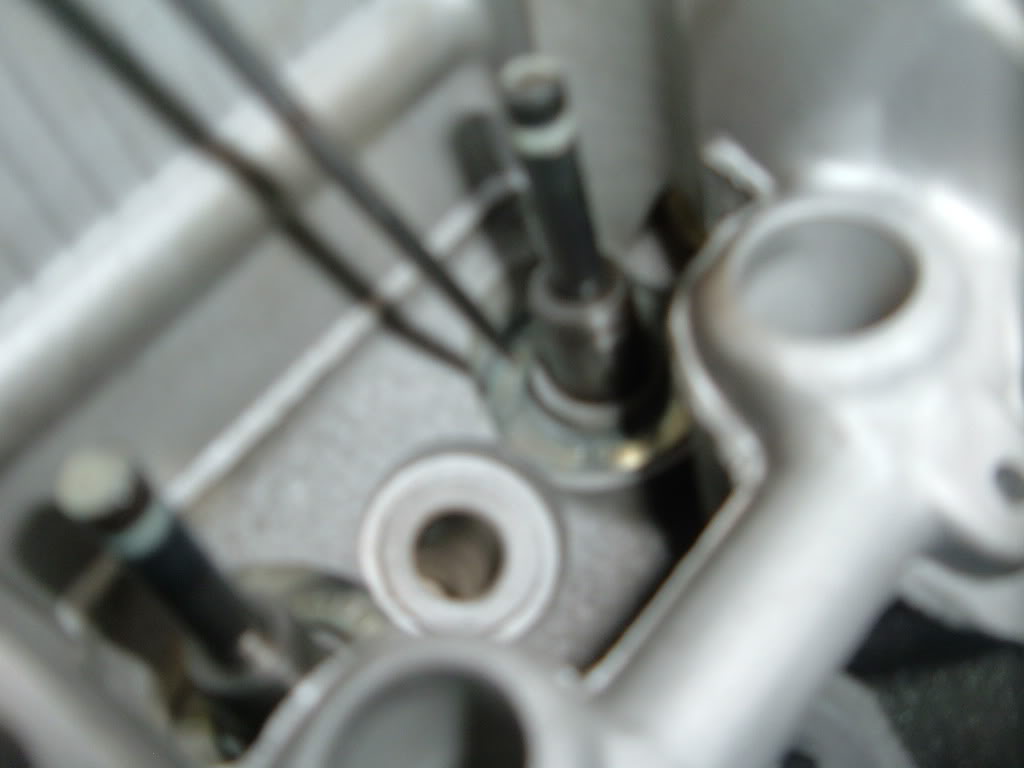

Valve tip height is checked to make sure it is in spec.
Name:  DSCF5531.jpg
Views: 245
Size:  46.2 KB

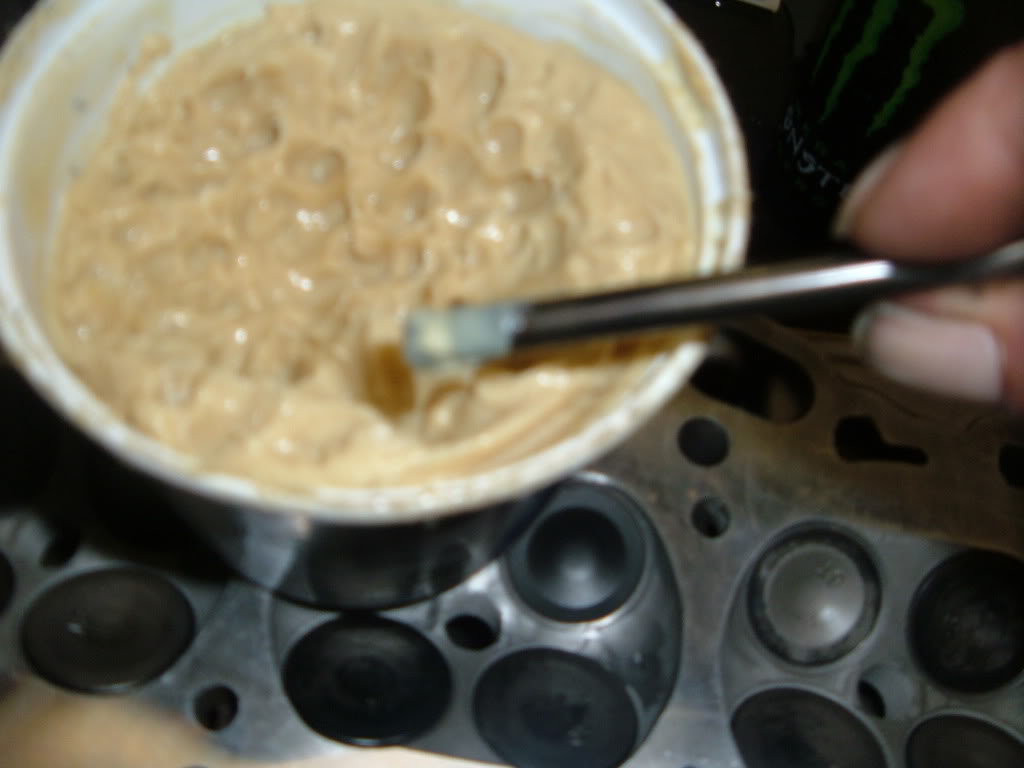

The valves are removed, lubed up and slid back into the same hole they came from.
Name:  DSCF5527.jpg
Views: 233
Size:  54.8 KB

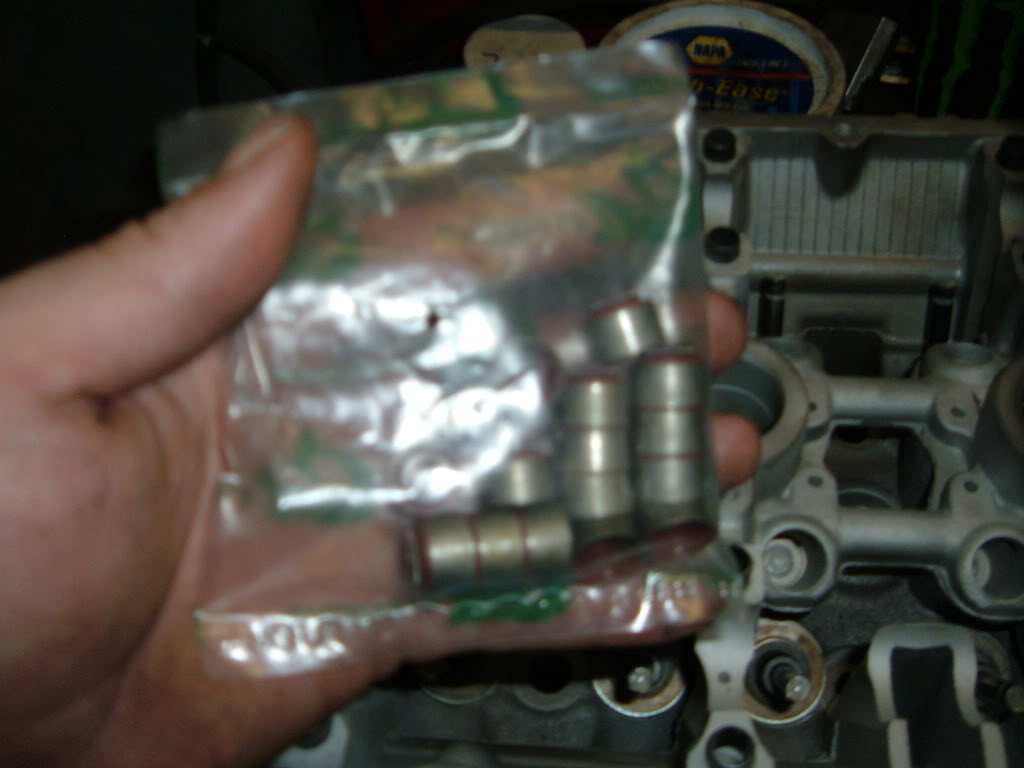

A package of valve seals found in a head gasket set.
Name:  DSCF5534.jpg
Views: 246
Size:  60.0 KB
Now the seals are pushed on by hand
Name:  DSCF5528.jpg
Views: 248
Size:  221.9 KB

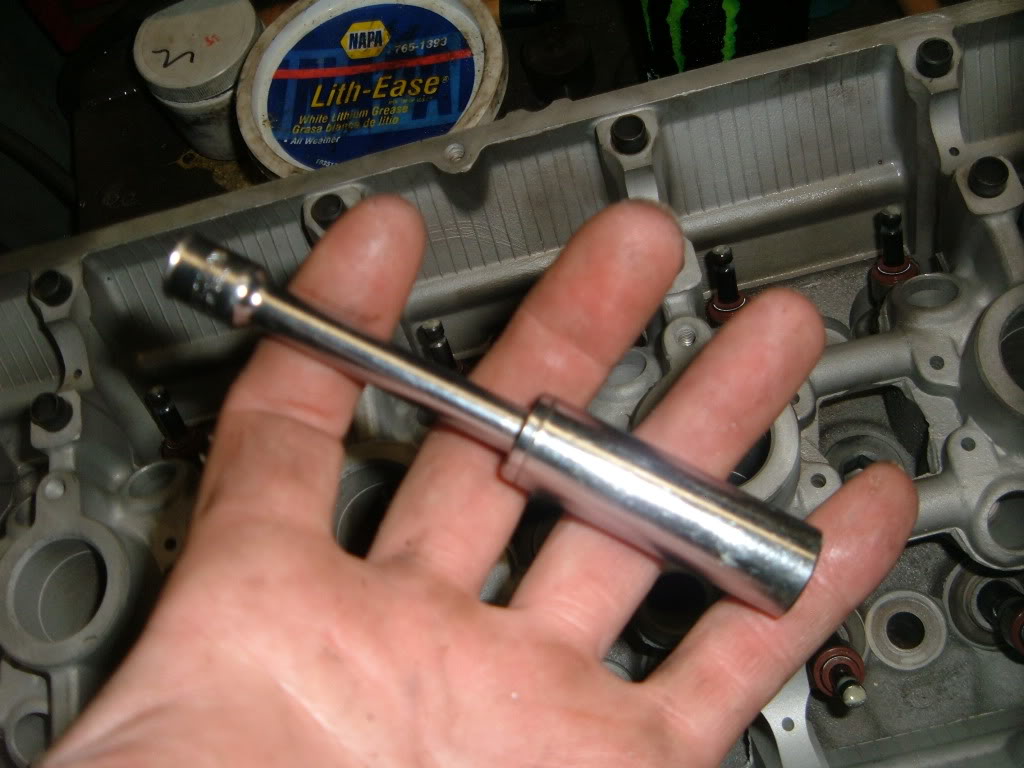

Now seals can be installed, this is my “hi-Tech” seal installer.

Attached Images
File Type: jpg

Last edited by BogusSVO; 02-02-2013 at 09:16 AM.
  #4
Old 02-02-2013, 09:09 AM
BogusSVO's Avatar
Member
Thread Starter
Join Date: Dec 2009
Location: Pensacola Fla
Posts: 52
Default

Name:  DSCF5536.jpg
Views: 229
Size:  98.9 KB

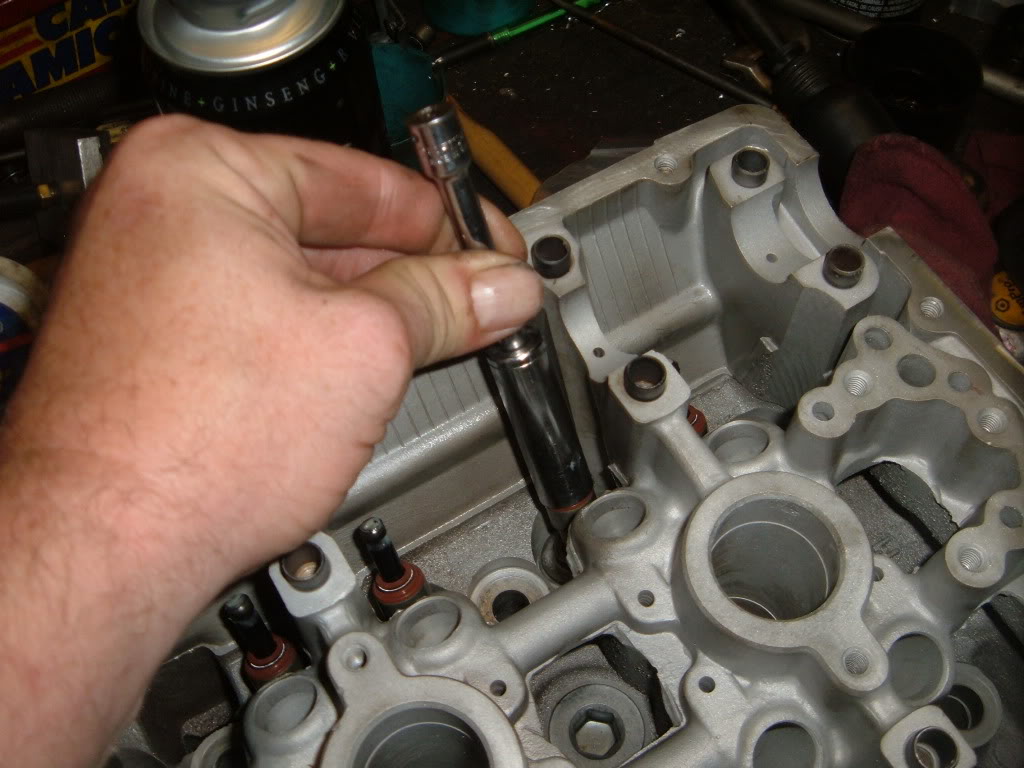

Now the seals are tapped into place securely.
Name:  DSCF5537.jpg
Views: 307
Size:  105.8 KB

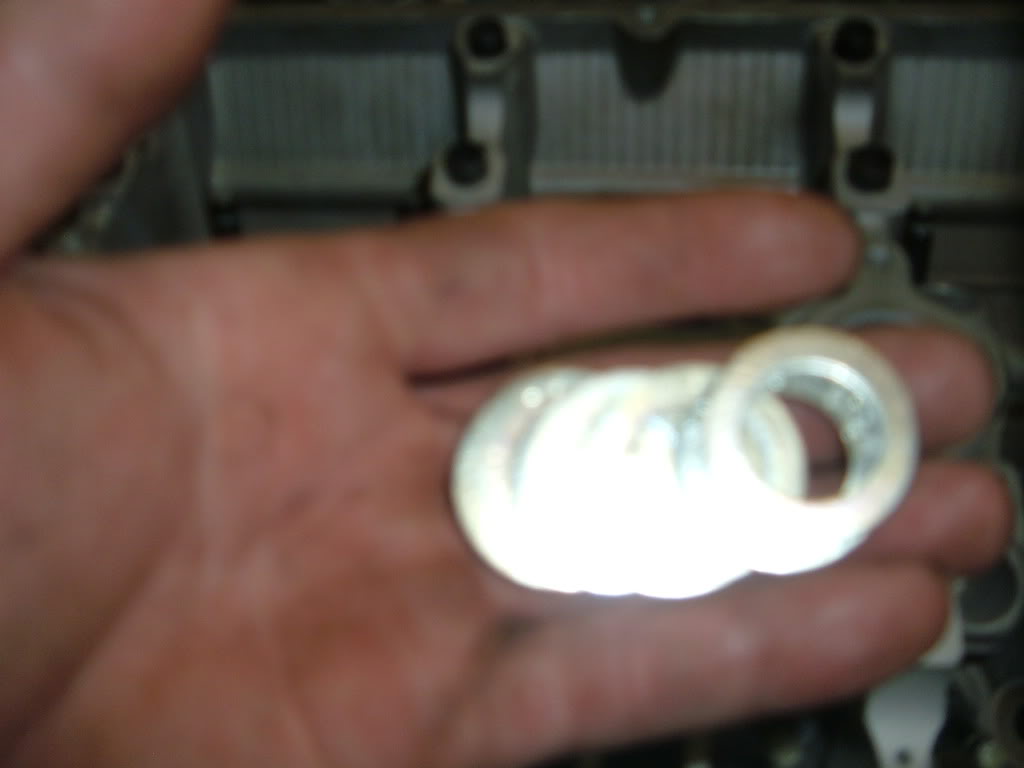

Now spring shims are installed if needed.
Name:  DSCF5529.jpg
Views: 237
Size:  39.7 KB

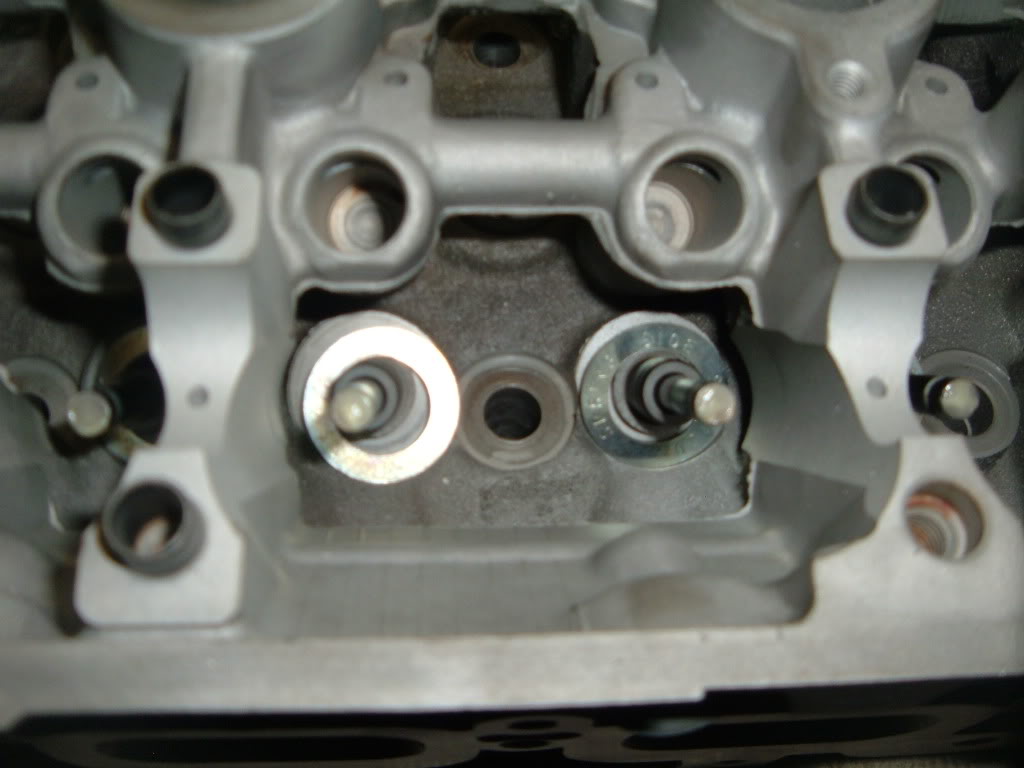

The spring shim goes on before the spring seat.
Name:  DSCF5530.jpg
Views: 238
Size:  66.1 KB

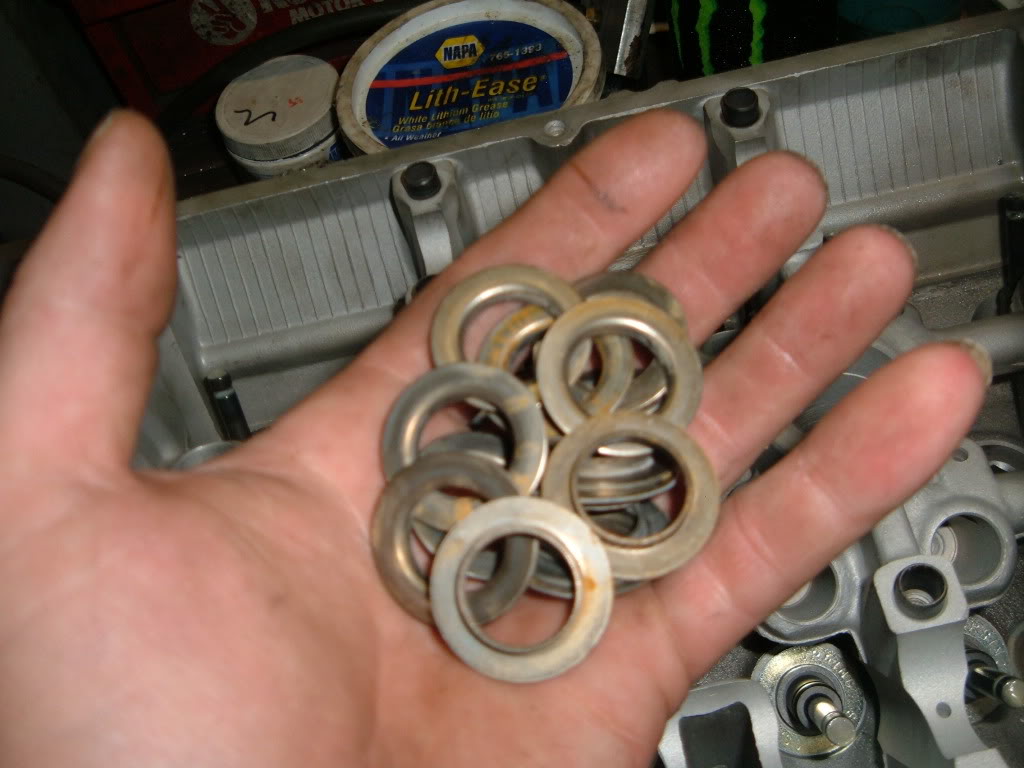

Now the cleaned spring seats are installed.
Name:  DSCF5532.jpg
Views: 350
Size:  92.0 KB

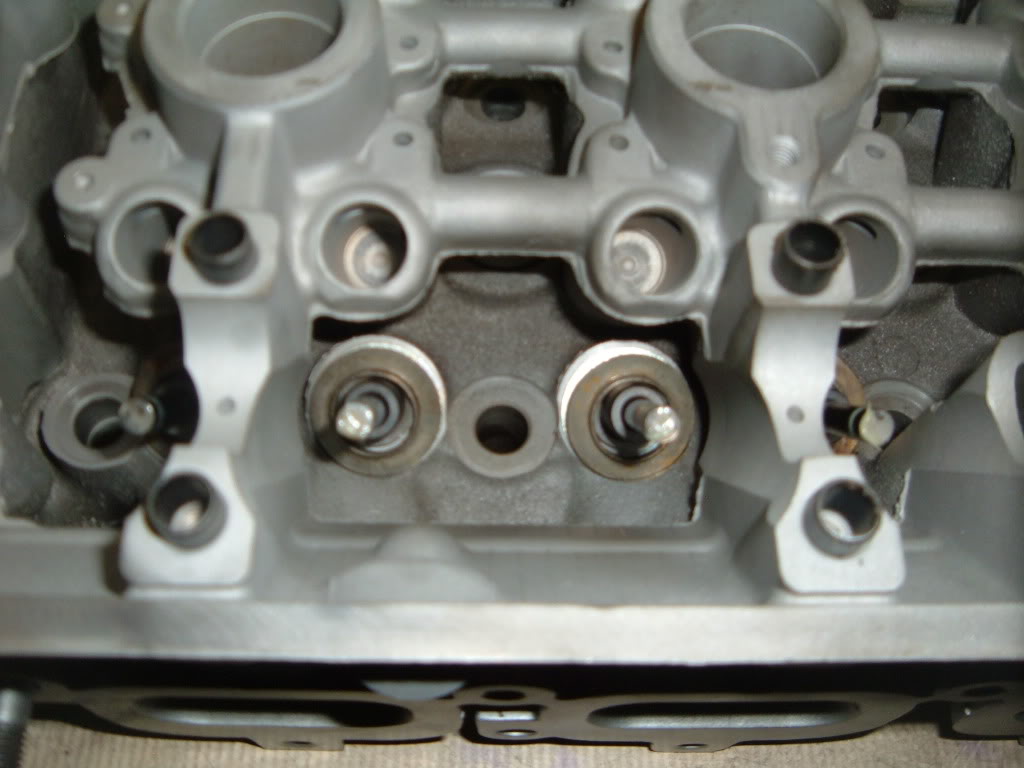

On top of the spring shims.
Name:  DSCF5533.jpg
Views: 267
Size:  74.9 KB

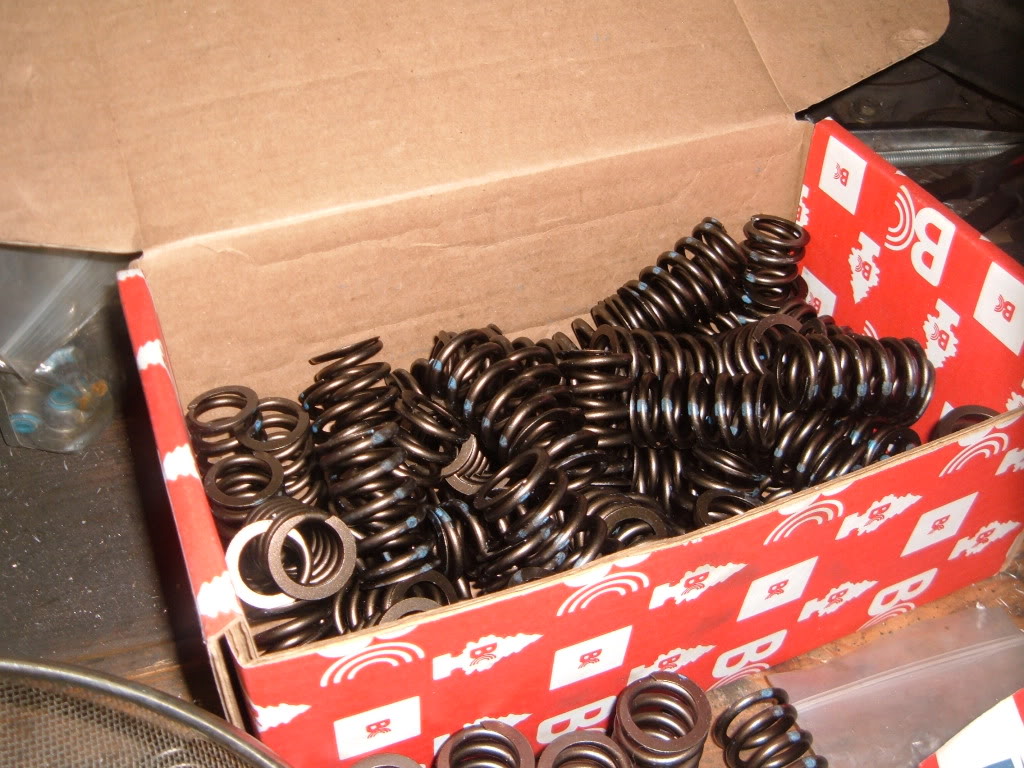

The new valve springs, BC1100
Name:  DSCF5538.jpg
Views: 244
Size:  178.0 KB

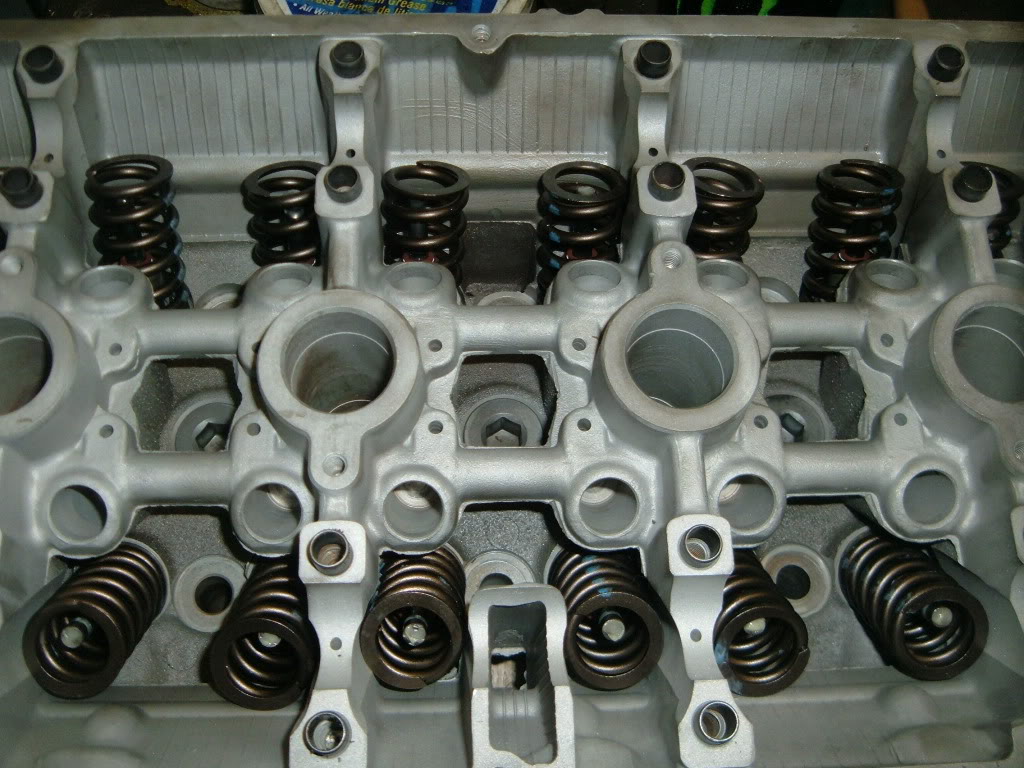

Now the new BC1100 springs are placed in the head, on the spring seat.
Name:  DSCF5539.jpg
Views: 231
Size:  149.5 KB

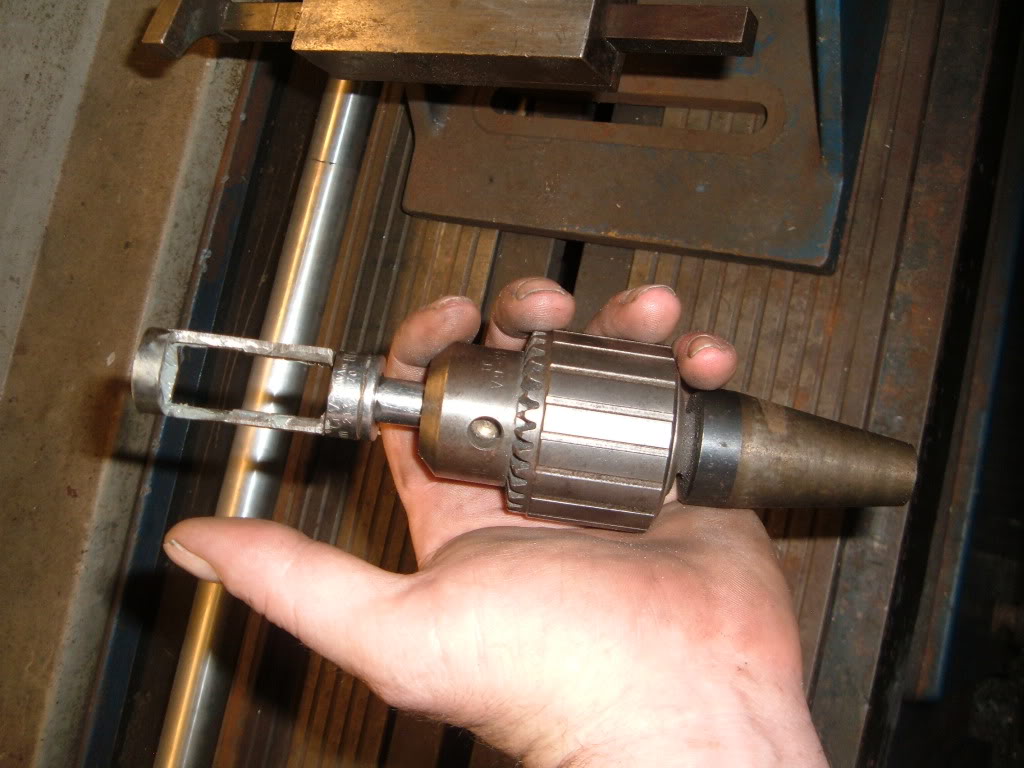

I will set the head back in the TnS 2000 Seat and guide machine, Using this adapter I will compress the valve springs.
Name:  DSCF5542.jpg
Views: 292
Size:  106.4 KB

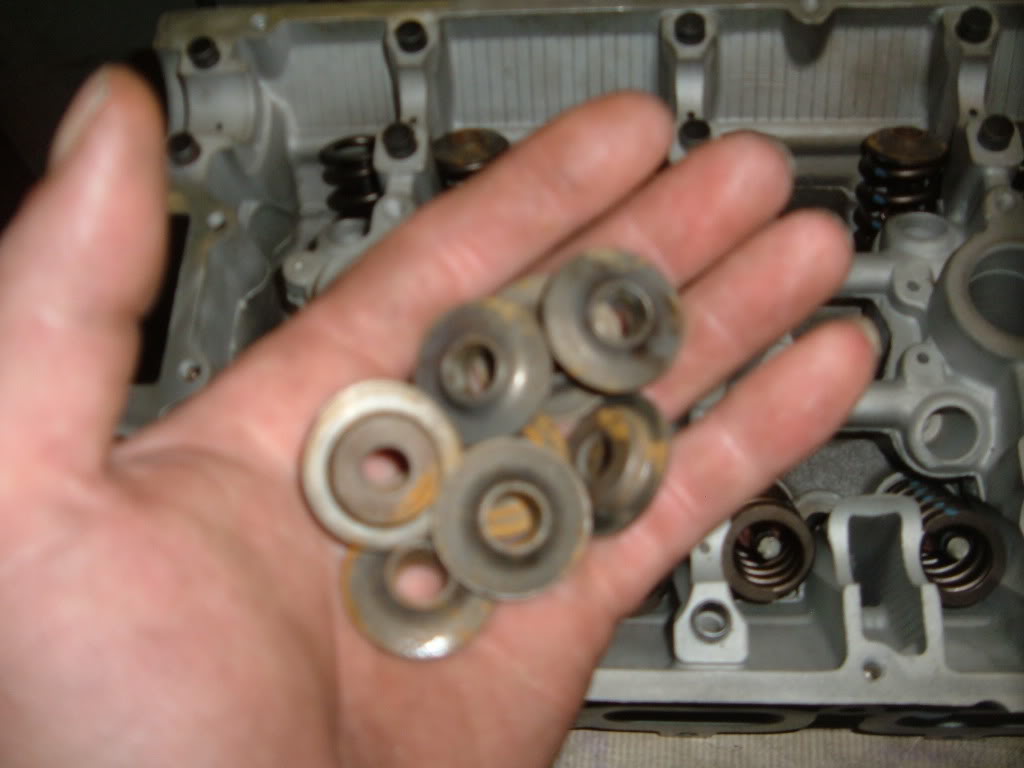

Now before I compress the spring, I will take the valve spring retainer.
Name:  DSCF5540.jpg
Views: 236
Size:  63.5 KB

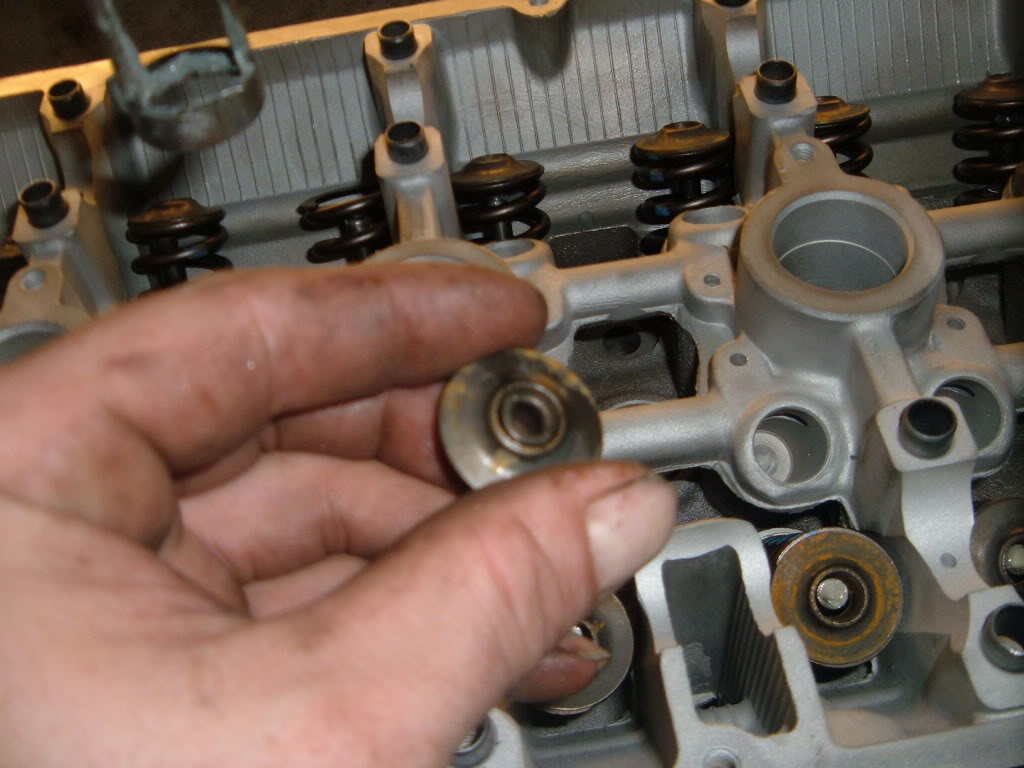

Install the valve locks,
Name:  DSCF5543.jpg
Views: 252
Size:  96.3 KB

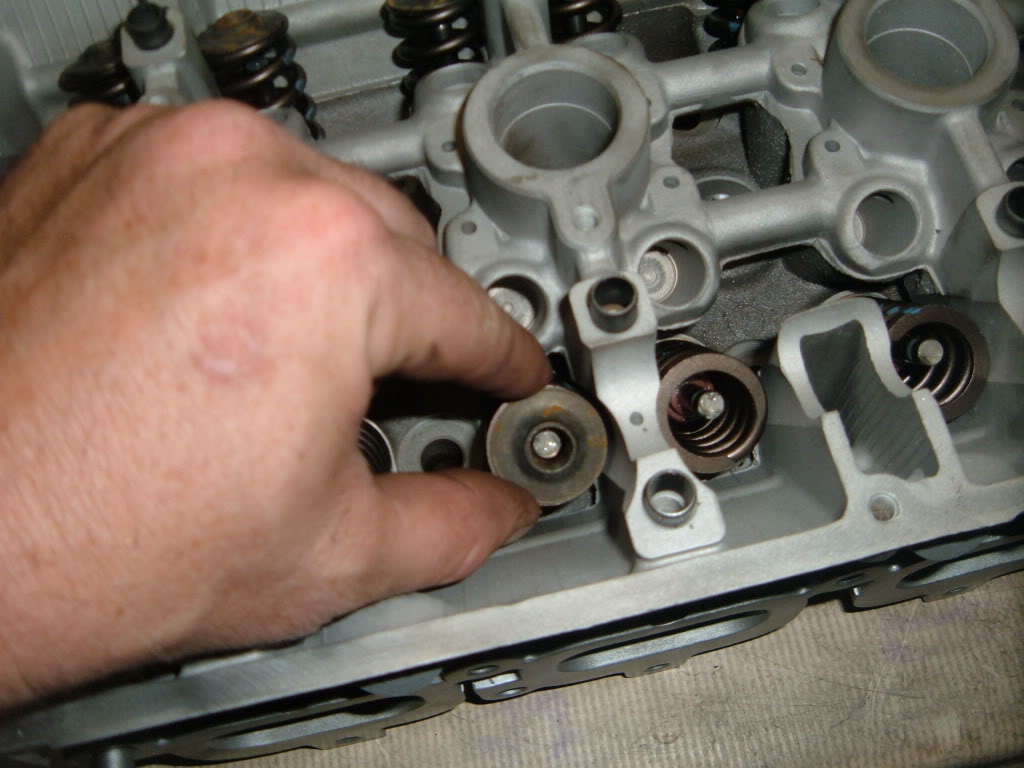

Then place it on top of the spring.
Name:  DSCF5541.jpg
Views: 241
Size:  95.6 KB

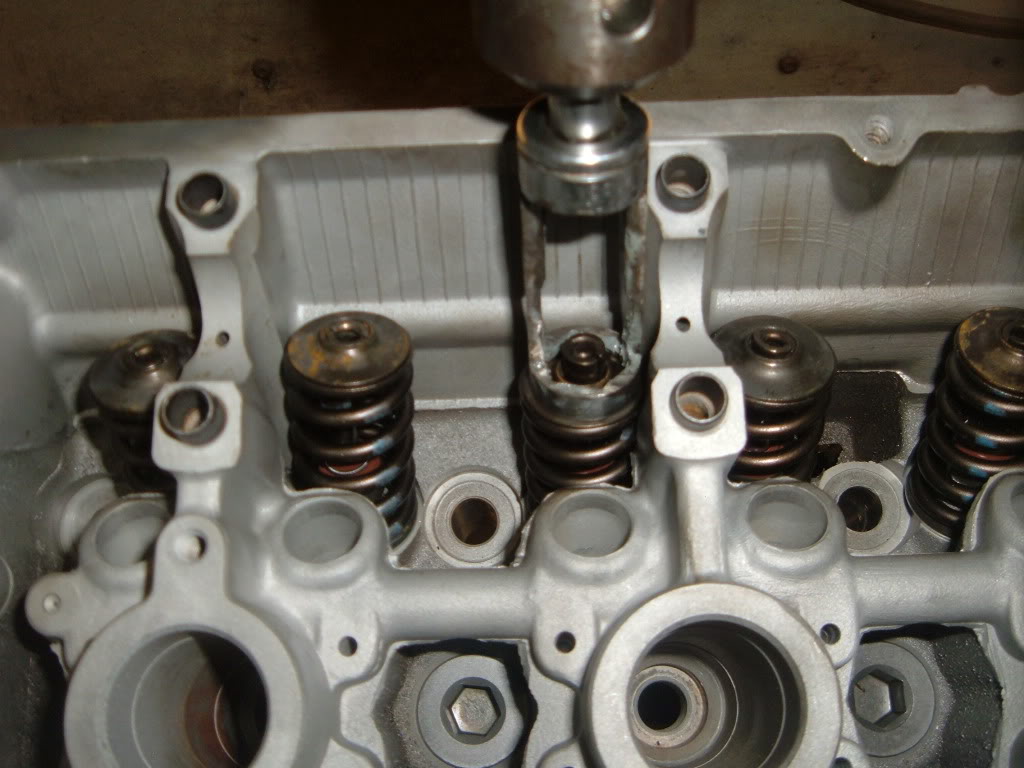

Now with the spring and retainer compressed,
Name:  DSCF5544.jpg
Views: 309
Size:  99.1 KB

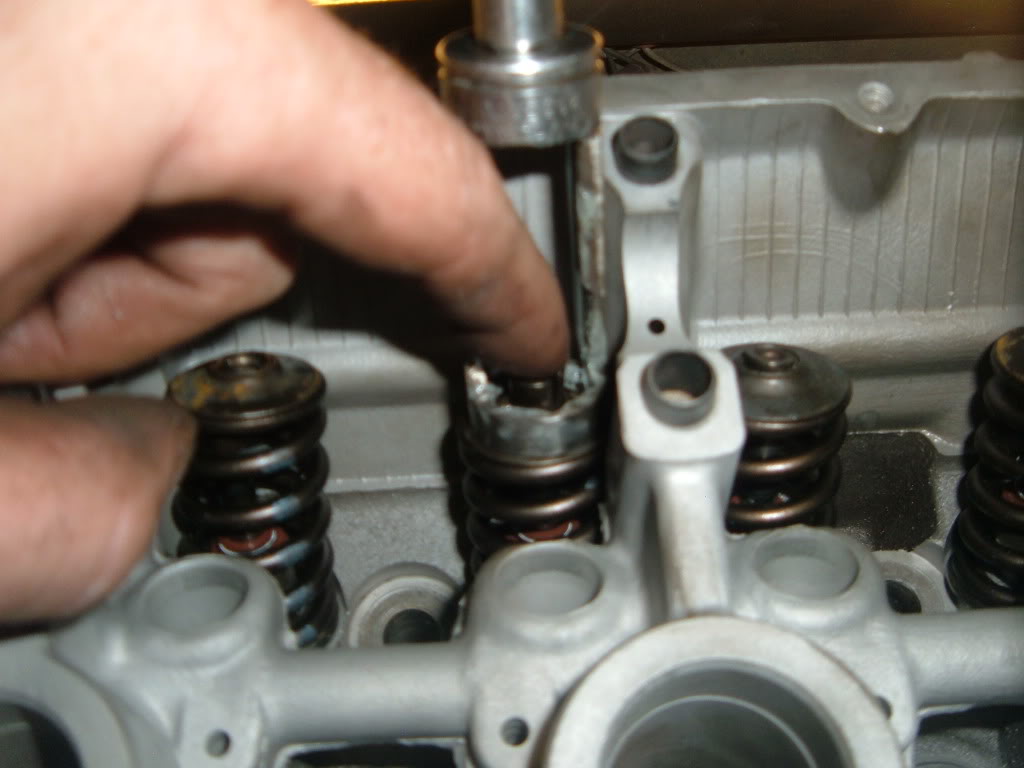

I can push the valve locks into place.
Name:  DSCF5545.jpg
Views: 236
Size:  67.8 KB

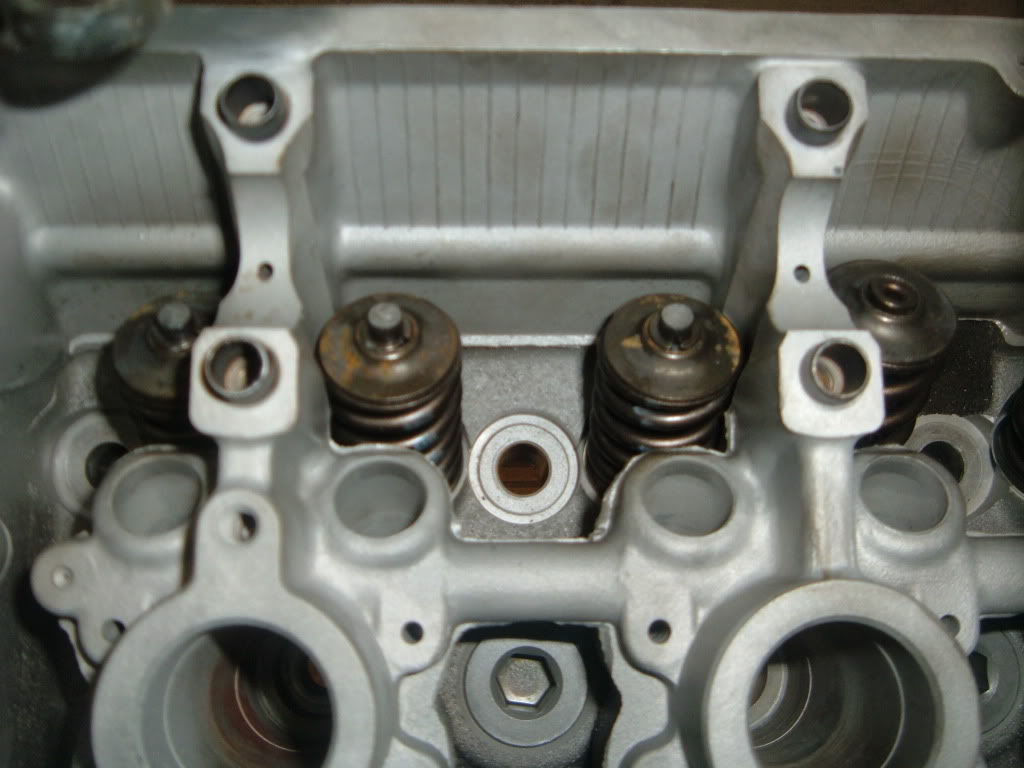

Repeat the process till all the springs and locks are seated properly.
Name:  DSCF5546.jpg
Views: 224
Size:  82.2 KB


Last edited by BogusSVO; 02-02-2013 at 09:17 AM.
  #5
Old 02-02-2013, 09:17 AM
BogusSVO's Avatar
Member
Thread Starter
Join Date: Dec 2009
Location: Pensacola Fla
Posts: 52
Default

Now this customer is going to install new 3g HLA’s. So no need for me to install the last of the valve train.

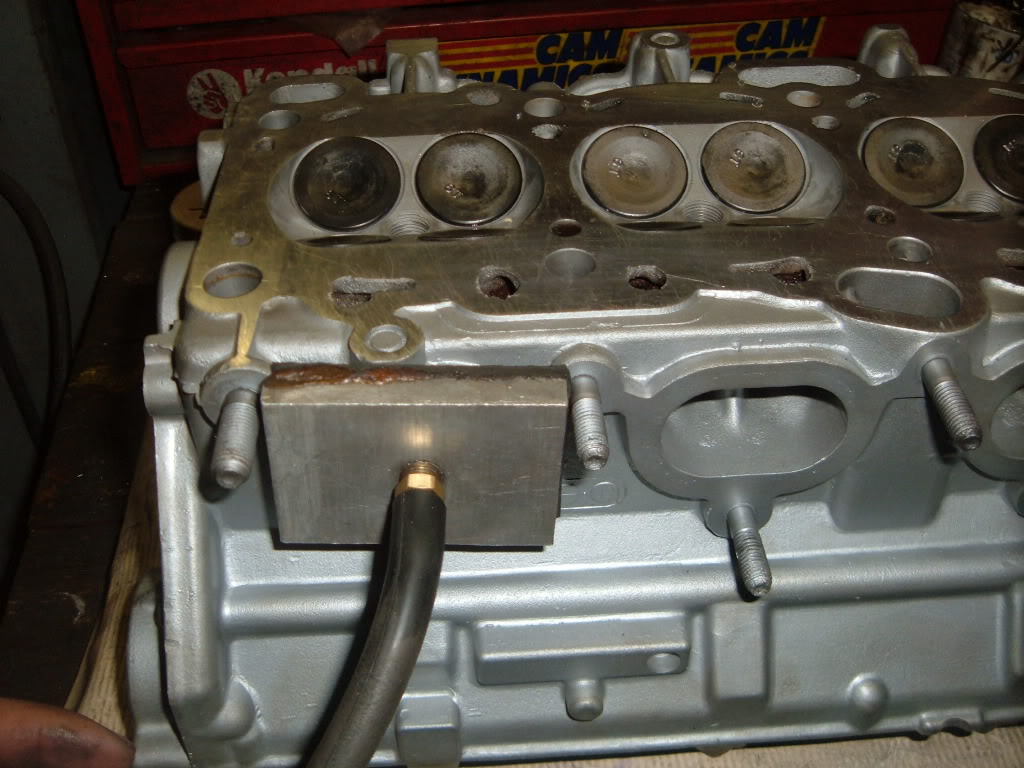

I check the valve to seat seal one last time.
Name:  DSCF5561.jpg
Views: 240
Size:  123.6 KB
I did install the cam tower caps on their proper side and position.

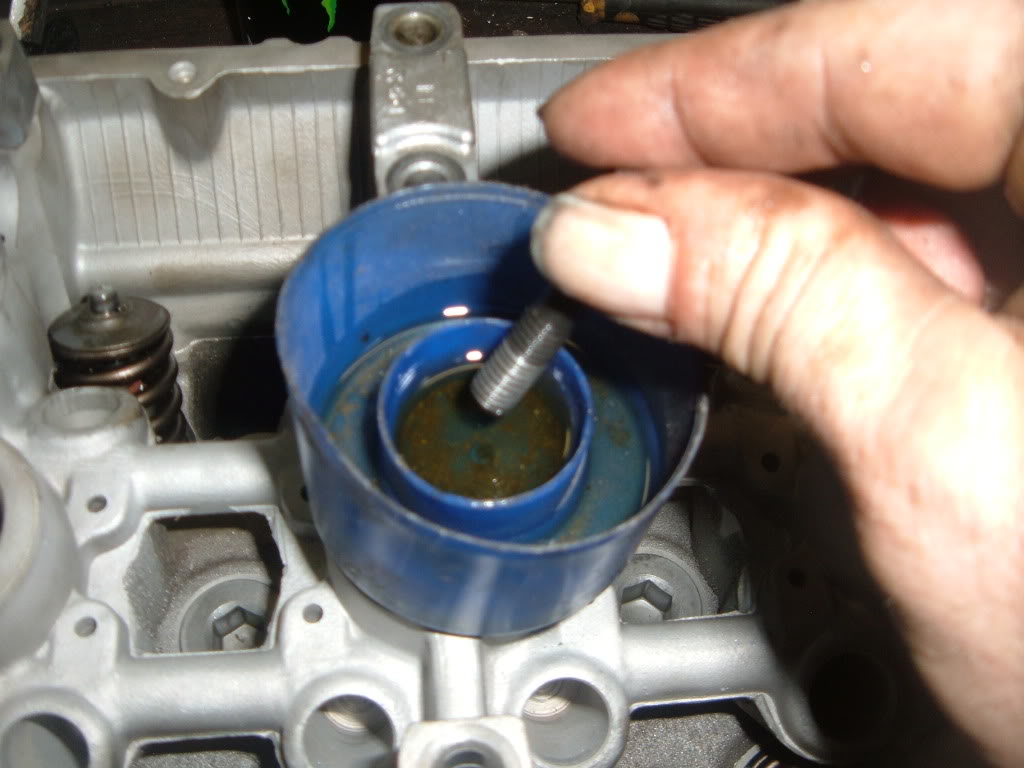

Each cam tower bolt received a quick dip in oil, since all the bolt threads are dry.
Name:  DSCF5555.jpg
Views: 241
Size:  83.7 KB

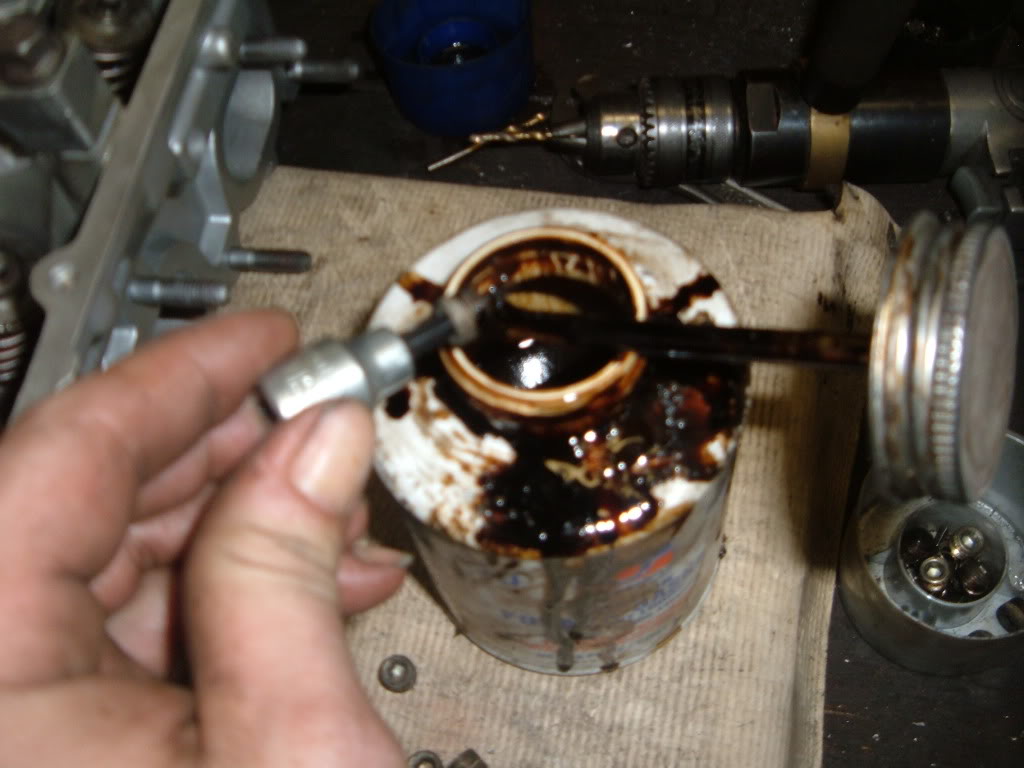

Now the oil galley plugs received a dab of sealant.
Name:  DSCF5557.jpg
Views: 313
Size:  82.4 KB

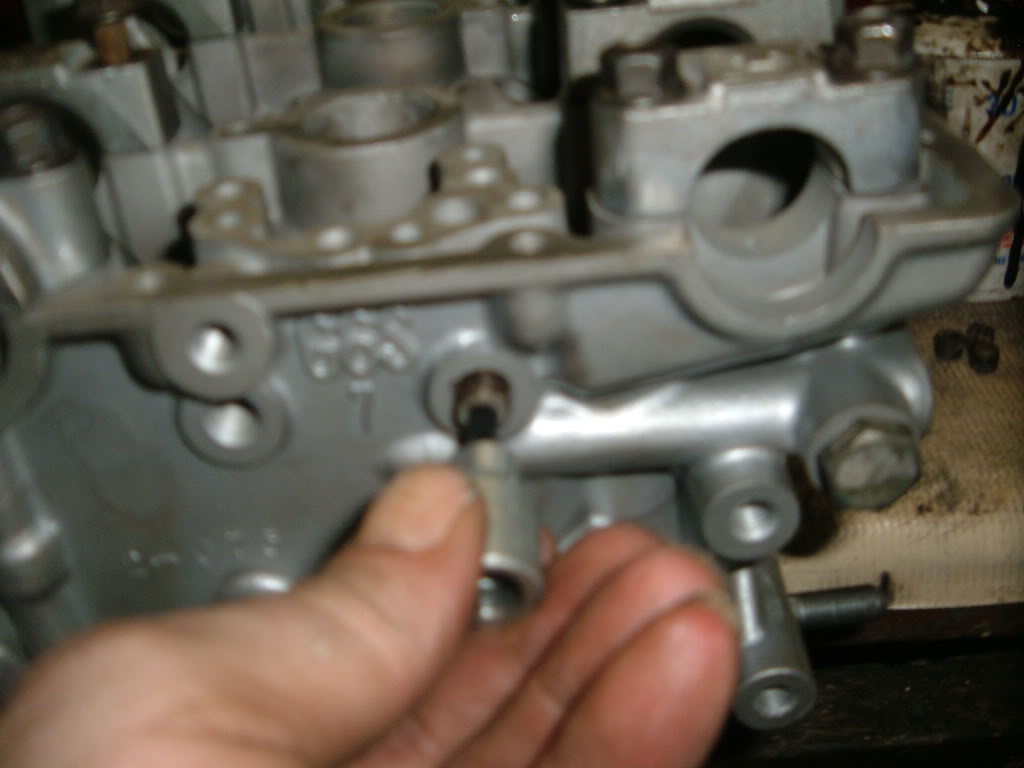

Then started by hand to prevent cross threading.
Name:  DSCF5558.jpg
Views: 285
Size:  57.6 KB

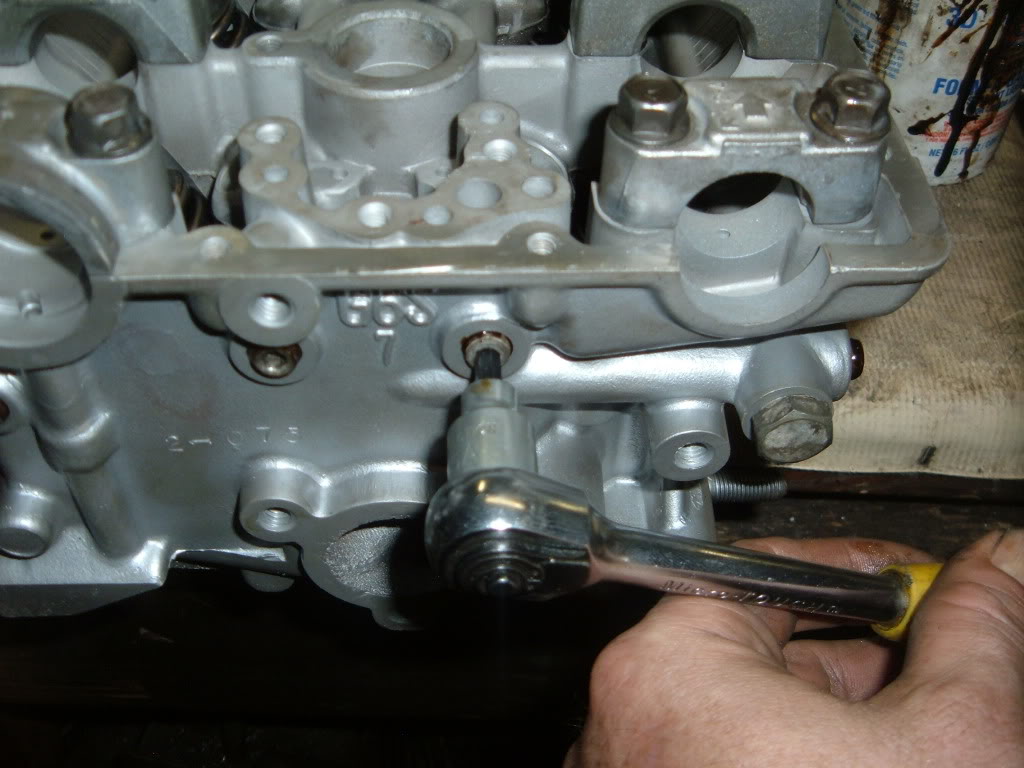

Then tighten to seal.
Name:  DSCF5559.jpg
Views: 264
Size:  100.3 KB

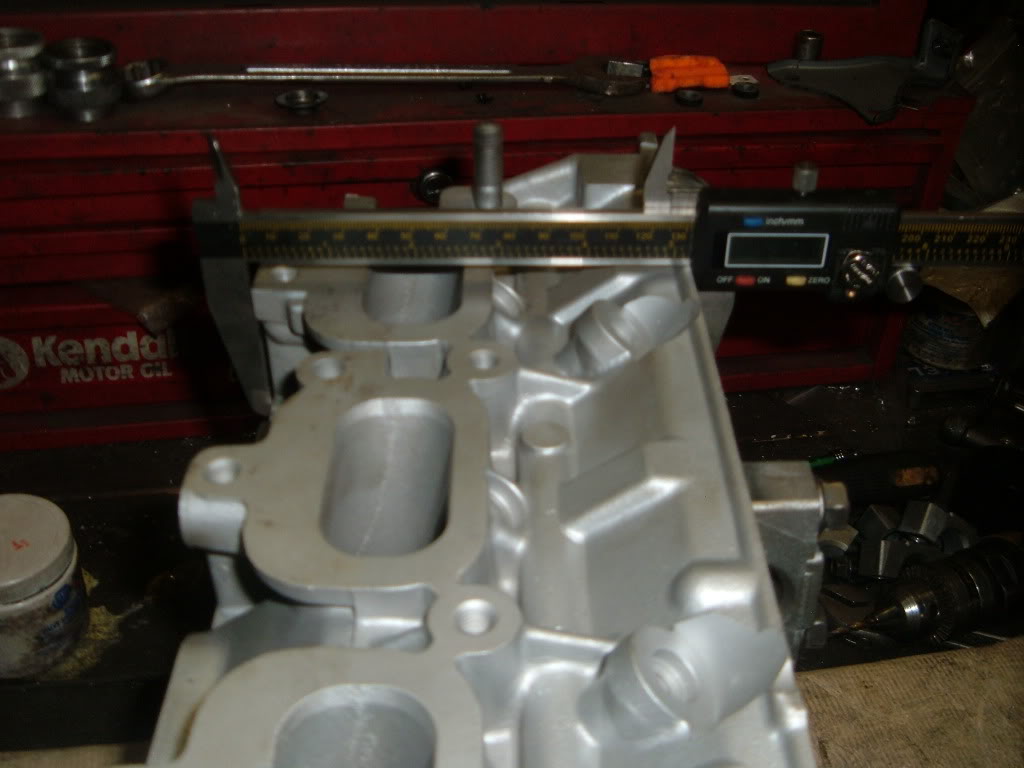

I measure the head for thickness and make a not of how much was removed.
Name:  DSCF5556.jpg
Views: 235
Size:  69.0 KB

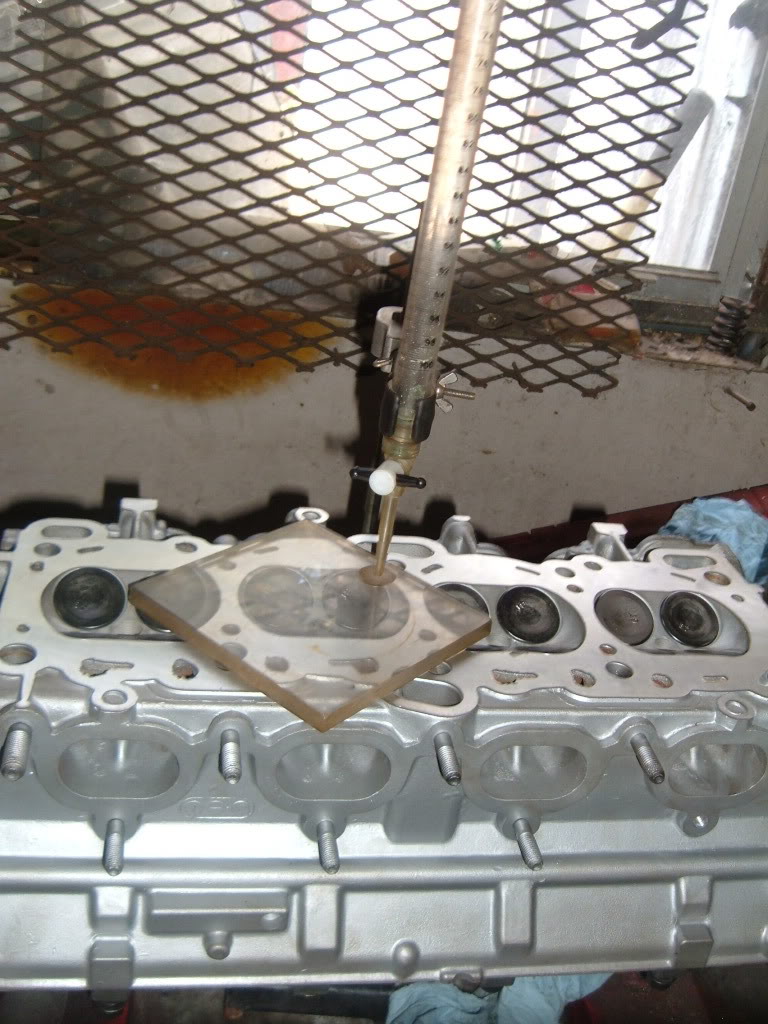

The final step is to CC the combustion chamber so proper compression ratio can be calculated.
Name:  DSCF5560.jpg
Views: 236
Size:  141.2 KB

This head is now done, and ready for the customer to pick up and install.

  #6
Old 02-02-2013, 11:23 AM
UseYourNoggin's Avatar
Banned
Join Date: Dec 2011
Location: Canada
Posts: 2,636
Default

Just another day at the office, eh!
How many hours for the process?
Did you get my P.M.'s yesterday?


Last edited by UseYourNoggin; 02-02-2013 at 11:26 AM.
  #7
Old 02-02-2013, 11:42 AM
BogusSVO's Avatar
Member
Thread Starter
Join Date: Dec 2009
Location: Pensacola Fla
Posts: 52
Default

Originally Posted by UseYourNoggin
Just another day at the office, eh!
How many hours for the process?
Did you get my P.M.'s yesterday?
Yep! Just another day!

From tear down to being bolt on ready, a stock head will have 4-6 hours into it. Depending on the head some can have as much as 12-14 hours like a 2JZ, but that includes setting the cam lash.

SBC stock heads can be done in about 2-3 hours, they are simple and sloppy, A set for dirt track about 4

Now a 4 cyl 16 valve DOHC, with bronze guides, and full port work, fitting over sized valves I can have 25-30 hours.
More if I had to developed a custom spring set up, or work up specs for custom ground cams.

Yes I did get your PMs, just did not have time to get into them yesterday.

Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
tgames64
Mazda Protege
2
08-13-2013 08:40 AM
BogusSVO
General Tech
1
02-01-2010 03:28 PM
Quadfather
Mazda3
21
12-07-2006 09:07 PM
Alucard
Off Topic
0
12-07-2005 01:14 PM


Thread Tools
Search this Thread
Quick Reply: What happens to a head in a machine shop



All times are GMT -5. The time now is 03:42 PM.
